AOI Visual Inspection System For Bottle Cap Gasket Seal Checking

AOI Visual Inspection System For Bottle Cap Gasket Seal Checking

  • AOI Visual Inspection System For Bottle Cap Gasket Seal Checking
  • AOI Visual Inspection System For Bottle Cap Gasket Seal Checking
AOI Visual Inspection System For Bottle Cap Gasket Seal Checking
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: AOI Visual Inspection System For Bottle Cap Gasket Seal Checking Place Of Origin: Anhui,China
Weight: 500 Kg Warranty: 1 Year
Condition: New Technic Scheme: Provided
Applications: Bottle Caps After-sale: Remote Service
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card
High Light:

AOI Visual Inspection System

,

Bottle Cap Seal Visual Inspection

System operating parameters
Dimensions

See the design drawings

for details

Power and frequency 220V 20A 50HZ
Total power 5 kw~6 kw Air pressure 0.5~0.8MPa Purify and oil-free
Working temperature -20℃ ~ 60℃ Working humidity Below 50% relative humidity



Company profile

Key Technology relies on the Key Laboratory of Pattern Recognition of the University of Science and Technology of China, and has a high-level doctoral R&D team covering the entire technology chain of optics, mechanics, electricity, computing and software. Through the project practice in the fields of packaging containers, 3C, medicine, textile, food, etc., the KVS-AI software and hardware platform has been created, so that AI technology can be transformed into real productivity.



Inspection principle

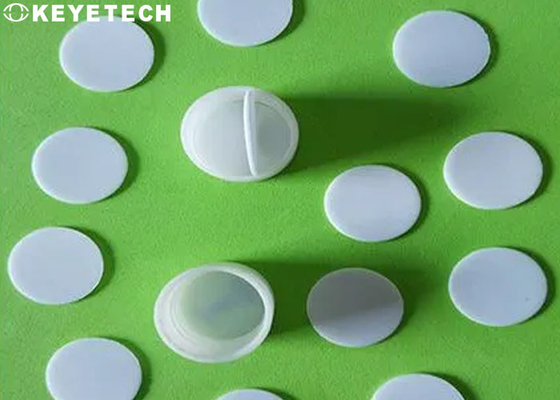

This scheme is designed according to the actual workpiece conditions on site, and the bottle cap gasket is visually inspected to replace manual inspection work. The detection system as a whole integrates visual optical hardware, detection system software, and double pad sensors.

AOI Visual Inspection System For Bottle Cap Gasket Seal Checking 0

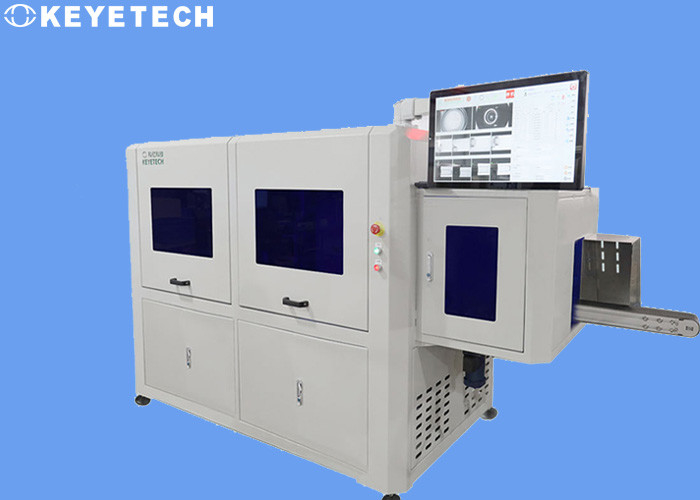

The detection equipment is installed online on the production line. The detection speed is 500/min in the absence of occlusion. The equipment can operate 7*24 hours a day, which greatly improves production efficiency.



Application of camera

  • The mouth and internal inspection of the round pipe is conveyed according to the way the mouth of the pipe is facing downwards. A set of industrial cameras is installed under the mouth of the pipe to cooperate with the use of visual light sources to collect the images of the mouth of the pipe and the interior for processing.
  • For the detection of the outer bottom of the circular tube, a set of industrial cameras is installed on the top, which is used in conjunction with the visual light source to collect images of the outer bottom of the tube for processing.

AOI Visual Inspection System For Bottle Cap Gasket Seal Checking 1

  • For the inspection of the injection point at the outer bottom of the round tube, a set of industrial cameras is installed at the obliquely upper position on the outside of the tube body. With the use of visual light sources, the characteristic images of defects at the injection point are collected at an oblique angle to achieve the detection effect.
  • For the inspection of the outer side of the round pipe body, 4 sets of industrial cameras are installed around the pipe body to form a 360-degree annular surface inspection. With the use of visual light sources, the images of the outer side of the pipe body are collected and processed by the system.



System composition
Electronic hardware part

  • The electronic hardware part includes industrial cameras, industrial lenses, light sources, triggers, solenoid valves (rejecting waste),
  • System electrical control box (responsible for electrical and logic control), three-color alarm lights, and 21-inch touch screen.
  • The overall logic control of the system is realized by a high-speed FPGA chip, and its specific functions include:
  • Trigger the camera to take pictures
  • Trigger light source strobe
  • Trigger the solenoid valve cylinder to remove waste products flexibly
  • Trigger the alarm light signal
  • Software part


The software is the general control platform of the equipment, and its specific functions are as follows:

  • Enable and disable the system detection function.
  • Adjustment of detection index parameters and precision.
  • Template sampling and storage, sample detection information storage and recall.
  • Camera screen calibration function.
  • Real-time production information (pass rate, total output, speed, etc.) display of the system, historical production information browsing
  • Browse, export and save functions.
  • Permission management according to the login account (for example, general operation users disable parameter adjustment permissions).
  • The operation and adjustment of the mechanical parts of the system (such as: opening of the transmission device, adjustment of the air injection time of the air valve,
  • alarm signal adjustment).

Additional functions that Party A needs to add.
