Visual Inspection System High Speed Defects Detector for Detergent Caps

Visual Inspection System High Speed Defects Detector for Detergent Caps

Visual Inspection System High Speed Defects Detector for Detergent Caps
Visual Inspection System High Speed Defects Detector for Detergent Caps
Visual Inspection System High Speed Defects Detector for Detergent Caps
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 6 to 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 8 weeks
Contact Now
Detailed Product Description
Name: Visual Inspection System High Speed Defects Detector For Detergent Caps Place Of Origin: Anhui,China
Weight: 500 Kg Warranty: 1 Year
Condition: New Technic Scheme: Provided
Applications: Bottle Caps After-sale: Remote Service
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card

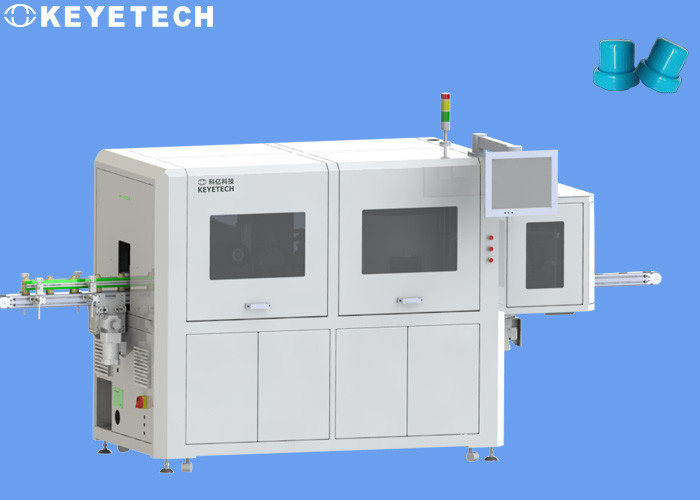

Visual Inspection System High Speed Defects Detector for Detergent Caps

Item Visual Inspection System High Speed Defects Detector for Detergent Caps Main Material Stainless steel
Weight 500kg Size 4250*1650*1860mm
Software Algorithm Deep Learning Voltage Ac220/50Hz
Current 4kw Air Pressure 0.5-0.8Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method High-Speed Industrial Camera Number Of Camera Depending on the specific situation



Company Profile

Anhui Keye Information Technology Co., Ltd. (hereinafter referred to as Key Technology) was established in 2011. It is a national high-tech enterprise focusing on applying AI technology to the industrial field. Provide visual imaging, algorithm computing power and automatic control AI system solutions for various sub-industries.

Visual Inspection System High Speed Defects Detector for Detergent Caps 0

Keye AI visual inspection overall solution adopts the world's top AI algorithm, equipped with visual analysis software and lighting, imaging and acquisition processing modules, which has the advantages of small sample size, strong generalization ability and rapid deployment. At present, the products are used in many industries such as food, alcoholic beverages, dairy products, pharmaceuticals, cosmetics, and daily chemicals.



Inspection details

The design scheme uses 6 sets of high-pixel area array industrial cameras and high-performance strobe light sources to conduct comprehensive inspections on the concave surface of the lower cover, the side of the lower cover, the side of the upper cover, and the top surface of the upper cover. The entire set of equipment is designed and tested The speed is 50 pieces/minute, and the equipment can operate 7*24 hours a day. Unqualified products are automatically eliminated online, and qualified products are counted and packed.

Visual Inspection System High Speed Defects Detector for Detergent Caps 1

The whole set of equipment includes mechanical parts, visual electronic hardware and detection system software, which can be independently arranged and used at the customer's site. The front end can be connected to the injection molding machine, and the rear end can be connected to upstream and downstream supporting equipment such as balers.



Inspection standards

Item Camera Position Inspect Precision Accuracy Speed
KVIS 1 top area Black sopt,dirt,size,burr,flash,hole,sealing ring broken,etc. >0.5mm 99% 50pcs/min
1 upper area >0.5mm
4 bottom area >0.5mm



Equipment features:

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3.Multi-orientation: 360 ° comprehensive inside and outside the samples
4.High precision: detection accuracy can be high
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6.Easy to operate: It is easy to operate and easy to maintain
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.



After-sale service:

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

Visual Inspection System High Speed Defects Detector for Detergent Caps 2
