Equipment features:
| 1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training |
| 2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history |
| 3.Multi-orientation: 360 ° comprehensive inside and outside the samples |
| 4.High precision: detection accuracy can be high |
| 5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs |
| 6.Easy to operate: It is easy to operate and easy to maintain |
| 7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment |
Inspection principle
With the development of the times, coffee shops are used by modern people for gatherings, leisure and business exchanges. It sells not only coffee, but also a quality, culture and ideas. Coffee shops are popular in large, medium and small cities. Wooden coffee sticks are a kind of tableware often used in modern coffee shops. Compared with metal coffee sticks, they are portable, clean and hygienic. Because of the low cost, many cafes will also engrave the coffee sticks or print their own brand logos to reflect the quality of their own cafes. As a disposable consumable, wooden coffee sticks cannot be inspected before they are delivered to customers. Therefore, coffee sticks need to be carefully tested before they leave the factory.

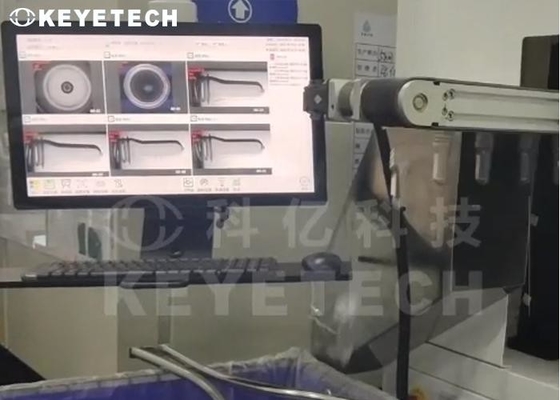

The inspection system uses a set of 4K high-pixel industrial line scan cameras to comprehensively inspect the appearance of the wooden coffee sticks. After the system collects product images, through AI deep learning, the detection system automatically determines good and defective products, and the defective products are automatically rejected online. After the finished product is detected, the counting function can be realized, and the counting accuracy rate is 100%. The software will open the sample comparison standard, and the operator can independently adjust the comparison accuracy and choose the accuracy standard most suitable for their own production conditions, thereby controlling the defect rate.
The basic principle of wooden coffee stick detection:
After moving to the designated station, the wooden coffee stick is held by the clamping mechanism, and it is controlled by the servo motor to rotate for a full circle. At the same time, there is a light source on the side. The inspection software compares this picture with the standard sample picture and detects the corresponding defects.
Inspection content:
Poor thickness,poor width,Bending, burrs, black spots, stains, cracks, etc.
| System parameter |
| Dimension |

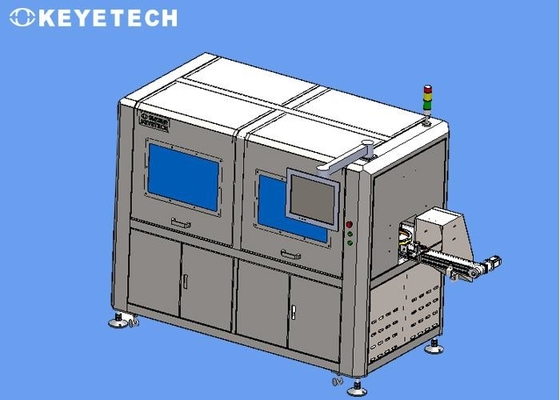

Reference to the drawings |
Voltage |
220V 20A 50HZ |
| Power |
5.0-6.0kw |
Air pressure
|
0.5~0.8MPa Cleaned and oil free
|
| Working temperature |
-20℃ ~ 60℃ |
Working humidity
|
Below 50% relative humidity |
After the finished product is inspected, the counting function can be realized, and the counting accuracy rate is 100%.
The inspection equipment needs to be maintained and cleaned regularly (such as conveyor belt cleaning, camera cleaning, etc.). The inspection equipment itself will not cause secondary pollution (such as debris, fine foam, etc.) to the tested samples.
work process:
(1) Feeding, positioning and clamping;
(2) Rotate a circle for shooting with a line array camera;
(3) Algorithm expansion, AI deep learning algorithm comparison;
(4) AI algorithm labeling, training, detection + defect classification;
(5) Classification and elimination of defective products
