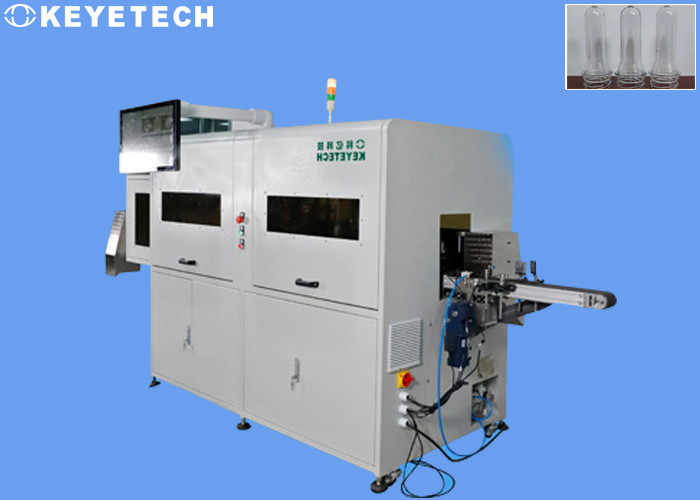

PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector

PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector

PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector
PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector
PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 8-10 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector Place Of Origin: Anhui,China
Weight: 500 Kg Warranty: 1 Year
Condition: New Technic Scheme: Provided
Applications: Packaging Solutions After-sale: Remote Service
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card

PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector

Item PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector Speed 150-600pcs/min
Software Algorithm Deep Learning Voltage Ac220/50Hz
Current 4kw Air Pressure 0.5-0.8Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method On-line inspection Number Of Camera 6-10 set



Inspection principle

Through the preform unscrambling device (this solution does not include the preform unscrambling machine), the preforms are stably and orderly transmitted to a specific station, and then the high-pixel sample images captured by the industrial camera are transmitted to the image processing software, and the good products are judged after system analysis and defective products, and control the corresponding pneumatic components to remove defective products, and finally collect qualified products.

PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector 0
The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and choose the most suitable accuracy standard for their own production conditions, so as to control the defective rate.



Vision solutions

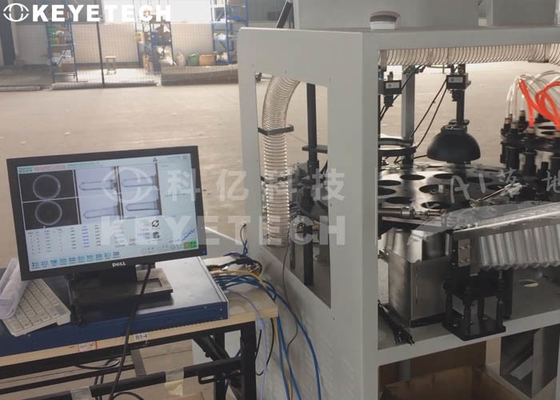

The design scheme uses 10 sets of high-resolution industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for the appearance defects of preform products. The inspection speed is 150-600 pieces/minute, and the equipment can operate 7*24 hours a day. Unqualified products can be automatically removed online.

PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector 1

The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software. The testing machine can be connected to the unscrambling machine or the automatic conveying mechanism for online use, and can be connected to the upstream and downstream production equipment according to the specific production needs of the customer's site.



Inspection Standards



Item Camera Position Inspect Precision Accuracy Speed
KVIS 4 Mouth

Black sopt,oil stain, bubble,

short filling,obviously scratch,etc

>0.5mm 99% 150p-600pcs/min
1 Support ring
4 Body
1 Bottom



Black spots, stains, and hair will be analyzed and processed according to the black spot detection index. The difference between the gray value of this item must be greater than 40, which can be effectively detected. If the sample has transparent oil stains or light-colored black spots, and the gray value contrast difference value is low (less than 40), the detection effect cannot be achieved.

PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector 2

Due to the complex structural features of the product, in the actual inspection application, there will be a certain detection blind spot in the structural overlapping area of the plane lens imaging, and the image cannot be collected within this blind spot, so it cannot be effectively detected.



After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

PET Preform Visual Inspection Machine Surface Bubble Oil Stain Defects Detector 3
