CR Closure Visual Inspection Machine Before Cap Induction Sealing
Company Profile
Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in visual inspection industry. As a leading manufacturer&Designer, It can provide the most advanced level AI visual inspection equipment and the customized AI system solutions of visual imaging, computing power, algorithm, and automatic control software for various sub-industries.
The company was established in 2011, it has a high-level R&D team from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.
Equipment Features
| 1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training |
| 2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history |
| 3.Multi-orientation: 360 ° comprehensive inside and outside the samples |
| 4.High precision: detection accuracy can be high |
| 5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs |
| 6.Easy to operate: It is easy to operate and easy to maintain |
| 7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment |
Inspection Overview

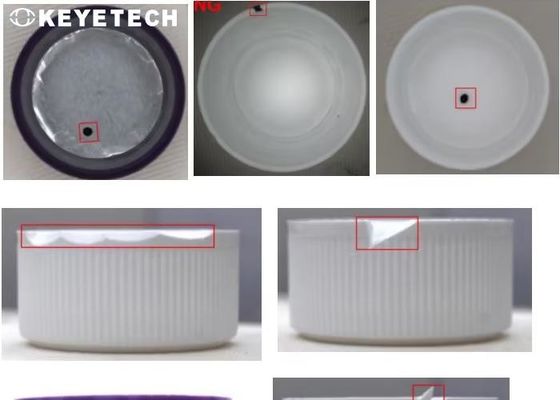

The design scheme uses high-pixel industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for the appearance defects of products. The inspection speed is 200-500 pcs/min, and the equipment can operate 24 hours a day. Products can be automatically rejected online.

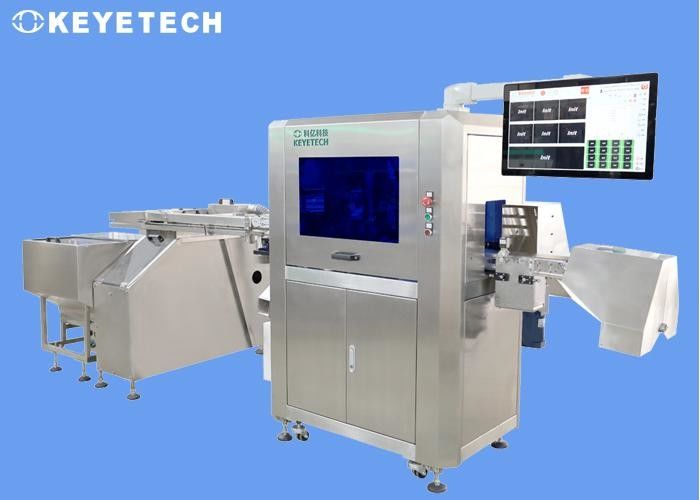

The whole set of vision machines includes mechanical parts, visual electronic hardware and vision system software. The entrance and exit of the inspection machine can be integrated with the customer's on-site conveyor line, and can be connected with upstream and downstream production equipment according to the specific production needs of the customer's site.
Software Function
- Enabling and disabling the system detection function
- Detection index parameters and accuracy adjustment
- Template sampling and saving, storage and retrieval of sample information
- Camera screen calibration function
- Real time production information display of the system (qualification rate, total output, speed, etc.), browsing of historical production information, export and storage functions
- Manage permissions based on login account (example, disabling parameter adjustment for general operation users)
- Operation and adjustment of the mechanical part of the system (If the transmission device is turned on, adjust the alarm signal)
Operation Parameters
| Power |
5.0-7.0Kw |
Voltage/Current |
Local standard |
| Ambient Temperature |
-20℃ ~ 60℃ |
Ambient humidity |
Less than 50% |
| System Language |
Chinese / English |
Mechanical |
Carbon Steel / SS 304 |
| Total Weight |
About 650Kg |
Dimension |
As actual drawings |
Configuration List
| Description |
Model |
Unit |
Q’ty |
Remark |
| Industrial Cameras |
KeyeTech |
Set |
7 |
China |
| Lenses |
KeyeTech |
Set |
7 |
China |
| LED Light Source |
KeyeTech |
Set |
3 |
Taiwan, China |
| Photoelectric Sensor |
SICK |
Pair |
1 |
Germany |
| Electromagnetic Valve |
SMC |
PC |
1 |
Japan |
| Industry Power |
Mean Well |
Set |
3 |
Taiwan, China |
| Main Control Board |
KEY-PC-2.1 |
PC |
1 |
China |
| AI Computing Unit |
KeyeTech EBS-1684X |
Set |
2 |
China |
| Pollution Filter |
KeyeTech AC30D-02G-A |
Set |
1 |
China |
| HID Touch Screen |
AOC 21’ |
Set |
1 |
China |
| AI Algorithm System |
KeyeTech KVS-V16.0 |
Set |
1 |
China |
| AI Cloud Platform |
KeyeTech |
Set |
1 |
China |
| Big Data Server |
KeyeTech |
Set |
1 |
China |
| Operation System |
Linux |
Set |
1 |
China |
Cooperation Partners
KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.
** Our company have served many well-known enterprises such as Coca-Cola, P&G, Unilever, ALPLA, Shriji Polymer, Berry Global, Aptar, LAMIPAK, TPAC, PACT Group, etc.
