Place of Origin: | China |
Brand Name: | KEYE |
Certification: | CE/ISO 9001/UL |
Model Number: | KVIS |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free wood |
Delivery Time: | 6 to 8 weeks |
Payment Terms: | L/C, T/T |
Supply Ability: | 30sets per month |
Product Name: | Defects Detection Machine Vision Cameras | Feature: | High Efficiency |
---|---|---|---|
Touch Screen: | 21 Inches | Voltage: | AC220/50HZ |
Condition: | New | MOQ: | 1 Set |
OEM: | Yes | Warranty: | 1 Year |
Loading Port: | Shanghai | Packaging: | Plywood Carton |
High Light: | Plastic Cap CCD Inspection Machine,CCD Cameras Vision Inspection System,Plastic Cap Defects Detection Machine |
Inspection Standards
Item | Camera | Position | Inspect | Precision | Accuracy | Speed |
KVIS | 1 | special area | Black sopt,dirt,size,burr,flash,hole,sealing ring broken,etc. | >0.5mm | 99% | 100p-150pcs/min |
1 | top area | >0.5mm | ||||
1 | upper area | >0.5mm | ||||
4 | bottom area | >0.5mm |
Inspection Details

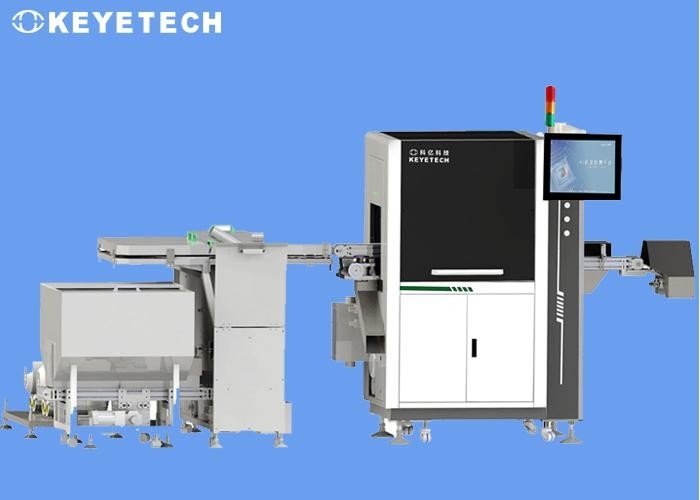

The design scheme uses 6 sets of high-pixel area array industrial cameras and high-performance strobe light sources to conduct comprehensive inspections on the concave surface of the lower cover, the side of the lower cover, the side of the upper cover, and the top surface of the upper cover. The entire set of equipment is designed and tested The speed is 100-150 pieces/minute, and the equipment can operate 7*24 hours a day. Unqualified products are automatically eliminated online, and qualified products are counted and packed.
The whole set of equipment includes mechanical parts, visual electronic hardware and detection system software, which can be independently arranged and used at the customer's site. The front end can be connected to the injection molding machine, and the rear end can be connected to upstream and downstream supporting equipment such as balers.

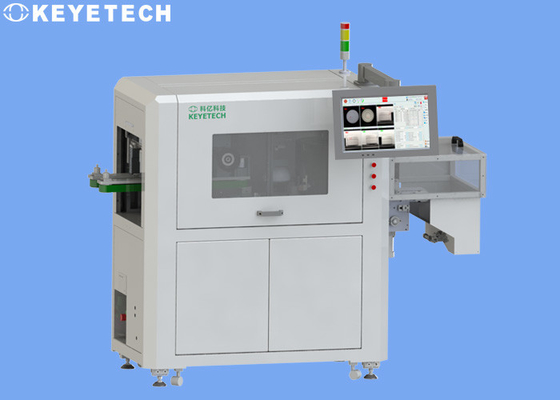

Machine Parameters
Item | Cap Defects Detection Machine | Main Material | Stainless steel |
Weight | 500kg | Size | 4250*1650*1860mm |
Software Algorithm | Deep Learning | Voltage | Ac220/50Hz |
Current | 4kw | Air Pressure | 0.5-0.8Mpa |
Transfer Method | Lossless Delivery | Detection Status | Online Real-Time Detection |
Detection Method | High-Speed Industrial Camera | Number Of Camera | Depending on the specific situation |
Company profile
KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.
** Our company have served many well-known enterprises such as Coca-Cola, P&G,Unilever,ALPLA,C'estbon, Nongfu Spring, etc., and has won praise from many users.
After-sale Service
The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.
After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
