Syrup Bottle Container Camera Vision Inspection Machine GMP FDA Standard
Company Profile
Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in visual inspection industry. As a leading manufacturer&Designer, It can provide the most advanced level AI visual inspection equipment and the customized AI system solutions of visual imaging, computing power, algorithm, and automatic control software for various sub-industries.
The company was established in 2011, it has a high-level R&D team from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.
Inspection details
| System operating parameters |
| Dimensions |
2.3×0.85×1.8(m) |
Power and frequency |
220V 20A 50HZ |
| Total power |
3.5kw |
Air pressure |
0.5~0.8MPa Purify and oil-free |
| Working temperature |
-20℃ ~ 60℃ |
Working humidity |
Below 50% relative humidity |
| Model |
Camera number |
Detection range |
Detection content |
Detection accuracy |
Detection precision |
Detection speed |
| KY-PB |
1set |
Bottle mouth |
Black spots, stains, overlap, burrs, lack of material, etc. |
≥0.5mm |
Qualified product 99.5% |
150 pcs/min |
| False detection is less than 0.5% |
| 1set |
Bottom of the bottle |
Black spots, stains,foreign material, etc. |
≥0.5mm |
Qualified product 99.5% |
| False detection is less than 0.5% |
| 4 set |
Upper area of the bottle |
Black spots, stains,missing, etc. |
≥0.5mm |
Qualified product 99.5% |
| False detection is less than 0.5% |
| 4set |
Lower area of the bottle |
Black spots, stains, etc. |
≥0.5mm |
Qualified product 99.5% |
| False detection is less than 0.5% |
| 1set |
Outer bottom of the bottle |
Black spots, stains |
≥0.5mm |
Qualified product 99.5% |
| Hole |
≥1mm |
Qualified product 99.5% |

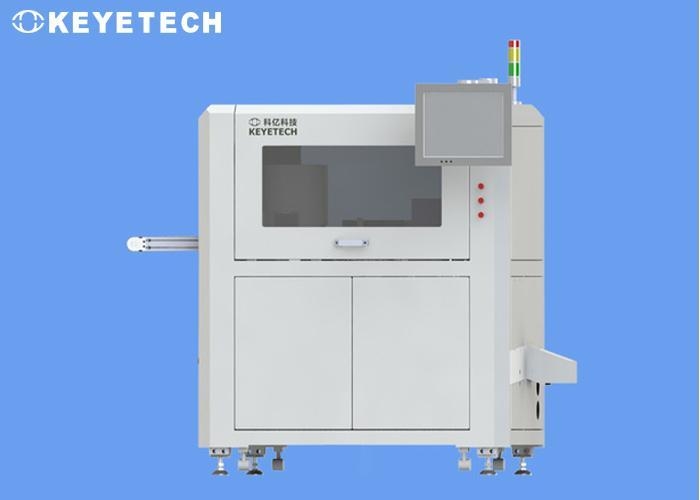

Equipment overviews

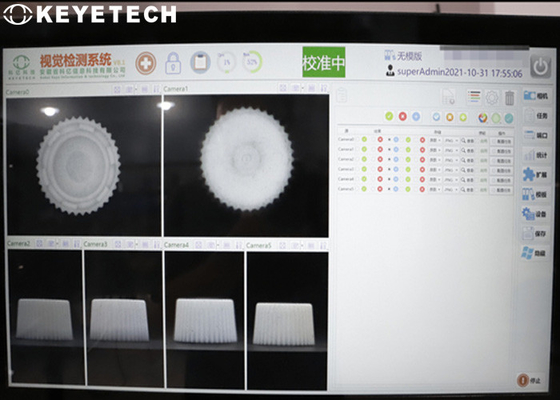

Software Function
- Enabling and disabling the system detection function
- Detection index parameters and accuracy adjustment
- Template sampling and saving, storage and retrieval of sample information
- Camera screen calibration function
- Real time production information display of the system (qualification rate, total output, speed, etc.), browsing of historical production information, export and storage functions
- Manage permissions based on login account (example, disabling parameter adjustment for general operation users)
- Operation and adjustment of the mechanical part of the system (If the transmission device is turned on, adjust the alarm signal)
Cooperation Partners
KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.
** Our company have served many well-known enterprises such as Coca-Cola, P&G, Unilever, ALPLA, Shriji Polymer, Berry Global, Aptar, LAMIPAK, TPAC, PACT Group, etc.
Delivery Time
The production cycle of the whole machine is expected to take 60 days. If additional inspection requirements are added or more adjustment needed, the time will be appropriately extended accordingly. After the equipment arrives at the customer's site, our company arranges after-sales personnel to complete installation and adjustment at the customer's site.
