Place of Origin: | China |
Brand Name: | KEYE |
Certification: | NO |
Model Number: | KVIS-B |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free wood |
Delivery Time: | 4 to 6 weeks |
Payment Terms: | L/C, T/T |
Name: | Bottle Detecting Equipment | Product Configuration: | High Brightness Frequency Flash Source |
---|---|---|---|
Warranty: | 1 Year | Condition: | New |
Origin: | CN | Material: | SUS 304 |
Quality: | Durable | ODM: | Yes |
Package: | Wooden Packing | ||
High Light: | Brown Bottle Defect Detecting Equipment,Brown Bottle Defect Detection Equipment |
Detection Principle

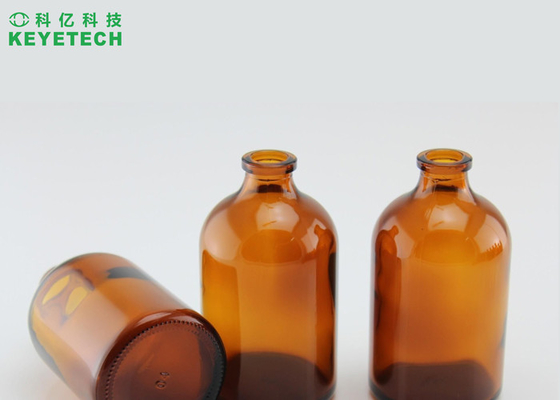

In order to prevent chemicals from being decomposed and deteriorated when exposed to sunlight. The transparent nature of the brown medicine bottle makes it easy to see whether there is any medicine in the bottle, and how much medicine remains in the bottle, which is very inconvenient to use. Therefore, brown medicine bottles have this indispensable position in the pharmaceutical industry.
Through the docking front automation mechanism,the syrup special brown bottle are stably transmitted to a specific detection station.Then transmitted the shooting high-pixel sample image to image processing software by industrial camera, detecting and determining a good product and defective product via AI manually intelligent algorithm, and controlling the corresponding pneumatic components to remove the defective product, and finally get the qualified product. The detecting machine rear end conveying platform can interface the automated packaging mechanism.
Product Configuration

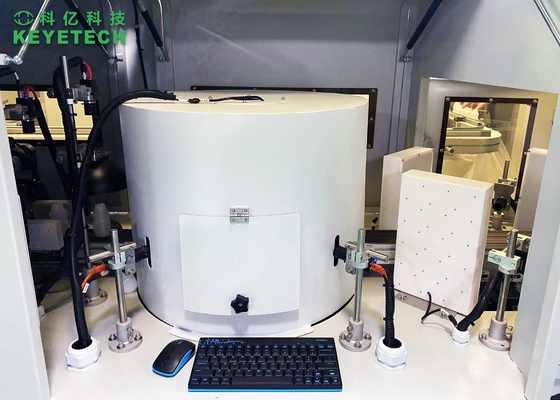

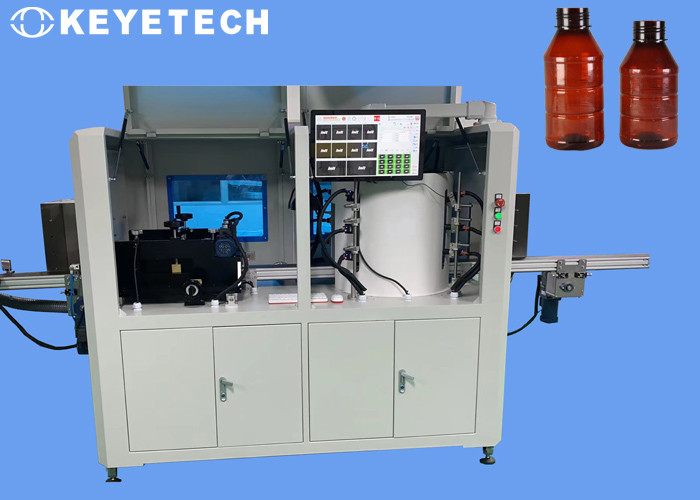

Equipment overview
-Online high speed detection, improve detection efficiency and accuracy, reduce human cost.
- High-pixel industrial camera accurate identification, the number of cameras is designed, accurate 0.1mm, speed 300 / min (can be customized according to the detection requirements).
- Compatible with multiple specifications, cost savings.

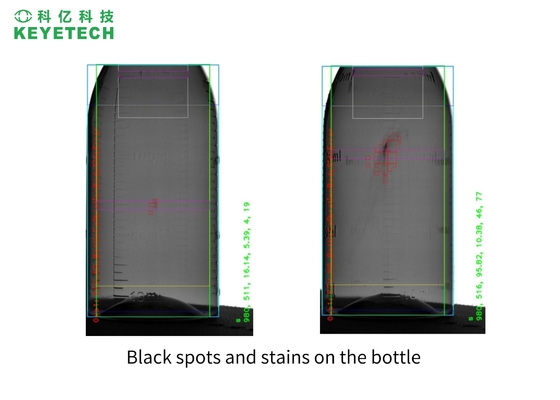

-Perform online detection and exclude for Syrup special brown bottle defects:black spots, color difference, impurities, gaps, residues of material, overlaps, bubbles, air cavities, deformation, thickness, sizes, etc.
Name | Syrup special brown bottle defect detecting equipment | Model | Kvis-Sc02 |
Software Algorithm | Deep Learning | Voltage | Ac220/50Hz |
Voltage | 200w | Air Pressure | Mpa |
Transfer Method | Lossless Delivery | Detection Status | Online Real-Time Detection |
Detection Method | High-Speed Industrial Camera | Number Of Camera | Determined due to specific requirements |
Our Advantages
AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training. |
Dataization: Independent database, save multiple samples, analyze non-good products, and retain history. |
Multi-orientation: 360 ° in the inside and outside of the Syrup special brown bottle, 360 ° in the outside without dead angle detection. |
Visualization: Real-time display sample image, operating state, real-time statistical test results and defects classification information. |
High precision: detection accuracy can reach 99.5%. Modularization, can flexibly increase or decrease the detection function according to customer actual needs. |
Easy to operate: It is easy to operate and easy to maintain. |
Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment. |
