Agro Pesticide Bottle Barrel Vision Inspection Equipment with Checkweigher
Company Profile
Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in visual inspection industry. As a leading manufacturer&Designer, It can provide the most advanced level AI visual inspection equipment and the customized AI system solutions of visual imaging, computing power, algorithm, and automatic control software for various sub-industries.
The company was established in 2011, it has a high-level R&D team from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.
Detection principle

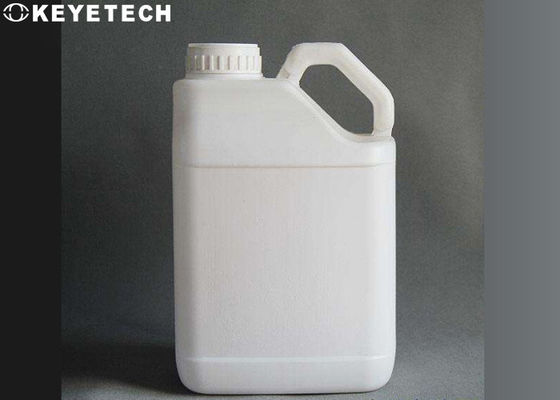

The defect detection equipment outside the 2L sauce packaging square barrel is connected to the front-end automation mechanism (which can be directly connected to the conveyor line, and the specific implementation method is to be determined according to the production site), and the 2L sauce packaging square barrel is stably and orderly transferred to the specific inspection process. Then the high-pixel sample image captured by the industrial camera is transmitted to the image processing software, and the good and bad products are detected and determined by the AI artificial intelligence algorithm, and the corresponding pneumatic components are controlled to eliminate the bad products, and finally the qualified products are output. The back-end conveying platform of the testing machine can be connected to the automatic packaging mechanism.

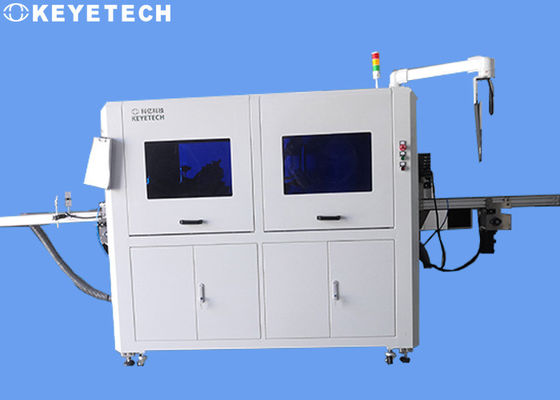

Equipment overview:
➢ Online high-speed detection, improve detection efficiency and accuracy, and reduce labor costs.
➢ Accurate identification of high-pixel industrial cameras, the number of cameras is designed on demand, the accuracy is 0.1mm, and the speed is 300 pieces/min (can be customized according to testing needs).
➢ Compatible with testing products of multiple specifications, saving costs.
➢ Detect and remove defects such as black spots, color difference, impurities, gaps, residual material, flash, air bubbles, voids, deformation, uneven thickness and size of 2L sauce packaging square barrels.
Operation Parameters
| Power |
5.0-7.0Kw |
Voltage/Current |
Local standard |
| Ambient Temperature |
-20℃ ~ 60℃ |
Ambient humidity |
Less than 50% |
| System Language |
Chinese / English |
Mechanical |
Carbon Steel / SS 304 |
| Total Weight |
About 650Kg |
Dimension |
As actual drawings |
Cooperation Partners
KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.
Delivery Time
The production cycle of the whole machine is expected to take 60 days. If additional inspection requirements are added or more adjustment needed, the time will be appropriately extended accordingly. After the equipment arrives at the customer's site, our company arranges after-sales personnel to complete installation and adjustment at the customer's site.
