KVIS-B Large Plastic Container Quality Control Visual Machine

KVIS-B Large Plastic Container Quality Control Visual Machine

  • KVIS-B Large Plastic Container Quality Control Visual Machine
  • KVIS-B Large Plastic Container Quality Control Visual Machine
  • KVIS-B Large Plastic Container Quality Control Visual Machine
  • KVIS-B Large Plastic Container Quality Control Visual Machine
KVIS-B Large Plastic Container Quality Control Visual Machine
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Model.No: KVIS-B Warranty: 1 Year
Apply: Quality Control Visual Machine Material: SS 304
Advantage: Easy To Operate Camera Number: 11set
Accuracy: 99.8% Payment: L/C,T/T,Paypal,Credit Card
High Light:

Juice Bottle Automated Quality Control System

,

KVIS-B Automated Quality Control System

,

KVIS-B machines for quality control

AI Machine Visual

Machine Vision is the modern, reliable, and safe approach to quality assurance inspection. It combines hardware and software to define safety parameters and measure for those parameters. This replaces the need for human labor to monitor production lines and judge whether or not a container passes or fails inspection.



Vision is our most powerful way of perception. We can obtain a lot of information about the surrounding environment through visual perception without actually touching it. Because the biological visual system is very complex, we cannot make a machine system fully possess this powerful visual perception ability. We are still at this stage: building a machine vision system that handles specific tasks in a controlled environment. Today, most of the machine vision is used in industry.



Inspection details

System operating parameters
Dimensions 2.3×0.85×1.8(m) Power and frequency 220V 20A 50HZ
Total power 3.5kw Air pressure 0.5~0.8MPa Purify and oil-free
Working temperature -20℃ ~ 60℃ Working humidity Below 50% relative humidity



Model Camera number Detection range Detection content Detection accuracy Detection precision Detection speed
KVIS-C -SC11 1set Bottle mouth Black spots, stains, overlap, burrs, lack of material, etc. ≥0.5mm Qualified product 99.5% 160 pcs/min
False detection is less than 0.5%
1set Bottom of the bottle Black spots, stains,foreign material, etc. ≥0.5mm Qualified product 99.5%
False detection is less than 0.5%
4 set Upper area of the bottle Black spots, stains,missing, etc. ≥0.5mm Qualified product 99.5%
False detection is less than 0.5%
4set Lower area of the bottle Black spots, stains, etc. ≥0.5mm Qualified product 99.5%
False detection is less than 0.5%
1set Outer bottom of the bottle Black spots, stains ≥0.5mm Qualified product 99.5%
Hole ≥1mm Qualified product 99.5%

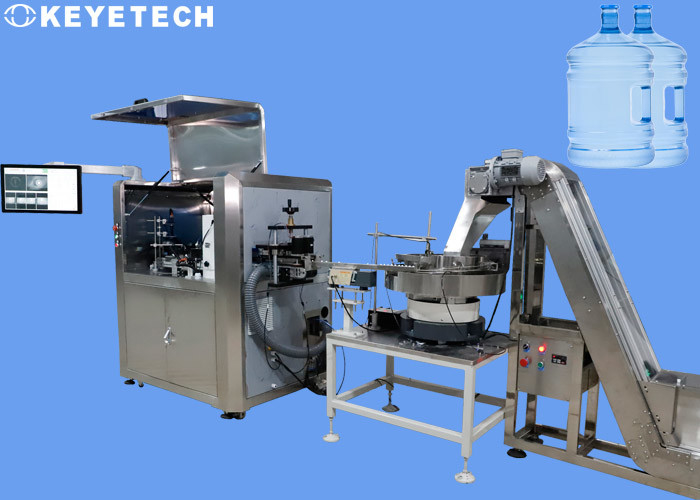

Equipment overviews

KVIS-B Large Plastic Container Quality Control Visual Machine 0



After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

KVIS-B Large Plastic Container Quality Control Visual Machine 1

After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
