Plastic Cover Lids Visual Inspection Equipment with Automatic Feeding Machine

Product Details:

Place of Origin:	China
Brand Name:	KEYE
Certification:	CE/ISO 9001
Model Number:	KY-PC

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Fumigation-free wood
Delivery Time:	6 to 8 weeks
Payment Terms:	L/C, T/T
Supply Ability:	2000 set per year

Contact Now

Detailed Product Description

Name:	Cap Sorting Machine	Brand:	KEYE
Industrial Applications:	FMCG Plastic	Colour:	According To Customer's Need
Core Component:	GPU Computing&processing Platform	Feature:	Free Of Labor
Touch Screen:	Humanized HMI	Light Source:	LED
OEM:	Yes
Highlight:	GPU metal inspection equipment , HMI metal inspection equipment , GPU metal inspection system

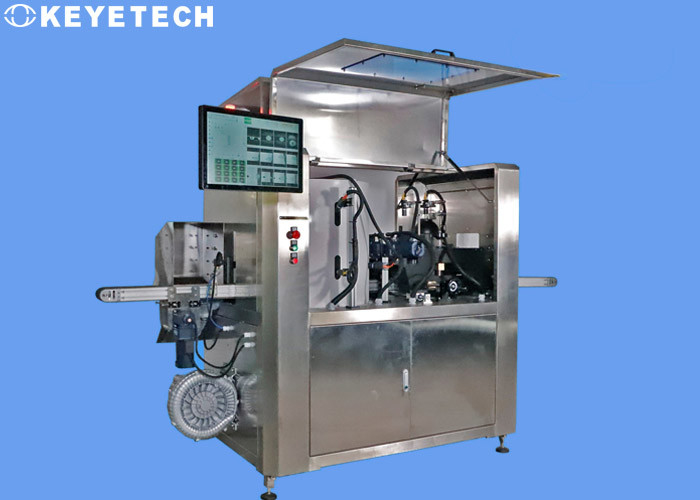

Plastic Cover Lids Visual Inspection Equipment with Automatic Feeding Machine

Company Profile

Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in visual inspection industry. As a leading manufacturer&Designer, It can provide the most advanced level AI visual inspection equipment and the customized AI system solutions of visual imaging, computing power, algorithm, and automatic control software for various sub-industries.

Plastic Cover Lids Visual Inspection Equipment with Automatic Feeding Machine 0

The company was established in 2011, it has a high-level R&D team from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.

System Features

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training

2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history

3.Multi-orientation: 360 ° comprehensive inside and outside the samples

4.High precision: detection accuracy can be high

5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs

6.Easy to operate: It is easy to operate and easy to maintain

7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment

Inspection Overview

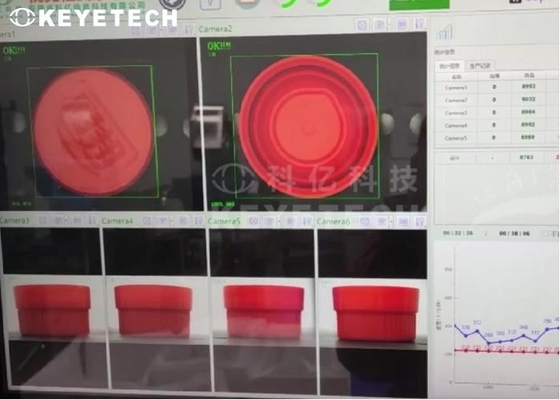

The design scheme uses high-pixel industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for the appearance defects of products. The inspection speed is 300-600 pcs/min, and the equipment can operate 24 hours a day. Products can be automatically rejected online.

The whole set of vision machines includes mechanical parts, visual electronic hardware and vision system software. The entrance and exit of the inspection machine can be integrated with the customer's on-site conveyor line, and can be connected with upstream and downstream production equipment according to the specific production needs of the customer's site.

Operation Parameters

Power	5.0-7.0Kw	Voltage/Current	Local standard
Ambient Temperature	-20℃ ~ 60℃	Ambient humidity	Less than 50%
System Language	Chinese / English	Mechanical	Carbon Steel / SS 304
Total Weight	About 650Kg	Dimension	As actual drawings

Configuration List

Description	Model	Unit	Q’ty	Remark
Industrial Cameras	KeyeTech	Set	6	China
Lenses	KeyeTech	Set	6	China
LED Light Source	KeyeTech	Set	3	Taiwan, China
Photoelectric Sensor	SICK	Pair	1	Germany
Electromagnetic Valve	SMC	PC	1	Japan
Industry Power	Mean Well	Set	3	Taiwan, China
Main Control Board	KEY-PC-2.1	PC	1	China
AI Computing Unit	KeyeTech EBS-1684X	Set	2	China
Pollution Filter	KeyeTech AC30D-02G-A	Set	1	China
HID Touch Screen	AOC 21’	Set	1	China
AI Algorithm System	KeyeTech KVS-V16.0	Set	1	China
AI Cloud Platform	KeyeTech	Set	1	China
Big Data Server	KeyeTech	Set	1	China
Operation System	Linux	Set	1	China

After Sales Service

The seller should complete the creation and debugging of the product basic algorithm model before the equipment is shipped, also provide remote assistance after the equipment arrives at the customer site; and provide buyer with the factory data and operation manual of equipment.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services. If you need to upgrade inspection algorithm, provide operational assistance, etc.
Our company have regular offline training plan every year, so domestic and foreign clients can send their engineers to participate (at their own expense). Those who pass the exam can obtain an industry functional skills certificate.
