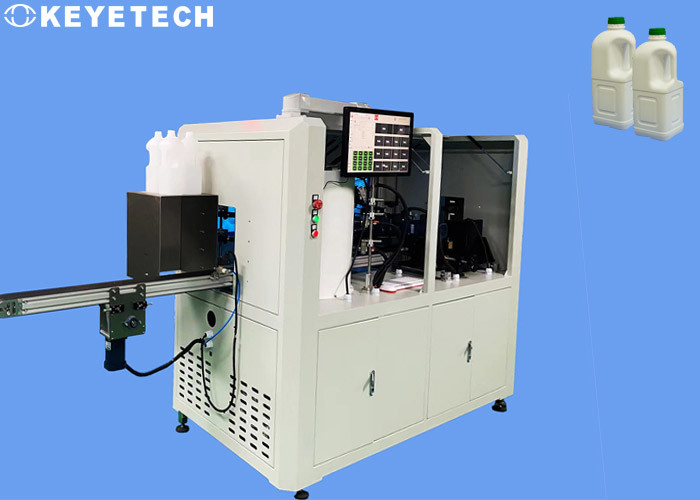

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling
Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling
Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: No
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 6 to 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling Origin: CN
Warranty: 1 Year Algorithm: Deep Learning
After-sale: Remote Service Core Technology: AI Algorithm
Software Support: Yes Application: Plastic Packaging
Packing: Plywood Carton Loading Port: Shanghai

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling

Inspection standards

Item Camera Position Inspect Precision Accuracy Speed
KVIS 1 bottle mouth Black sopt,dirt,burr,flash,hole, ring broken,etc. >0.5mm 99.5% 120pcs/min
6 bottle upper part
6 bottle lower part
1 bottle outer bottom



Company Profile

Anhui Keye Information Technology Co., Ltd. (hereinafter referred to as Key Technology) was established in 2011. It is a national high-tech enterprise focusing on applying AI technology to the industrial field. Provide visual imaging, algorithm computing power and automatic control AI system solutions for various sub-industries.

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling 0

Keye AI visual inspection overall solution adopts the world's top AI algorithm, equipped with visual analysis software and lighting, imaging and acquisition processing modules, which has the advantages of small sample size, strong generalization ability and rapid deployment. At present, the products are used in many industries such as food, alcoholic beverages, dairy products, pharmaceuticals, cosmetics, and daily chemicals.



Inspection principle

Common beverage bottle defects can affect the quality of beverage bottles, such as: high lid, crooked lid, cracked lid, no coverage, light intensity, standard error, no coding and other defects, so we need to give priority to these types of appearance when testing Defects are detected.

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling 1

These common defect problems can be effectively detected through the appearance defect visual inspection system, which can not only reduce labor costs for enterprises, but also effectively improve detection efficiency and accuracy, and provide enterprises with better online product inspection services.


Inspection Details

The solution uses 14 sets of high-resolution industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for defects on the outside, inner wall, inner bottom, and outer bottom of IML cups. The inspection speed is 120 pcs/min, and the detection of unqualified products It can be automatically removed online.

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling 2

The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software. The entrance and exit of the testing machine can be integrated with the customer's on-site conveyor line, and can be connected to upstream and downstream production equipment (such as offset printing machines, packaging machines, etc.) machines and other equipment).



Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.



** Our company have served many well-known enterprises such as Coca-Cola, P&G,Unilever,ALPLA,C'estbon, Nongfu Spring, etc., and has won praise from many users.

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling 3



After-sale service

After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.

Bottle Vision Inspection System Ensures Quality Assurance For Milk Bottling 4
