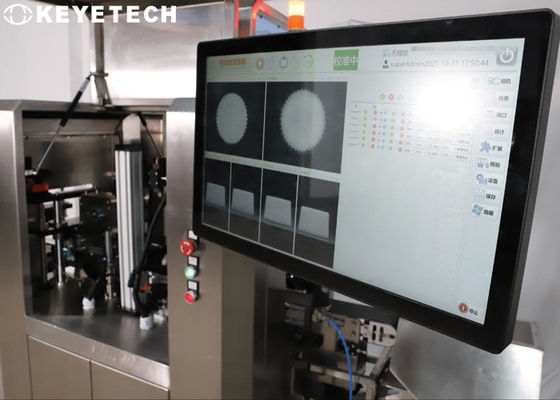

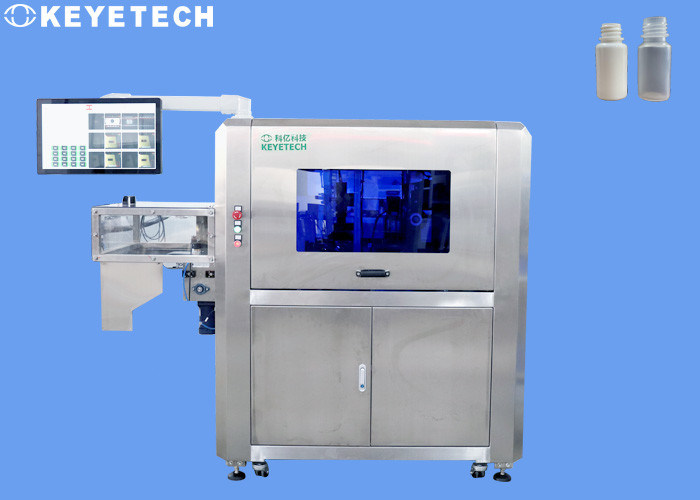

GMP Standard Bottle Visual Inspection Machine with Online Rejection Function

GMP Standard Bottle Visual Inspection Machine with Online Rejection Function

Technical parameters

Company Profile

Anhui Keye Information Technology Co., Ltd. (hereinafter referred to as Key Technology) was established in 2011. It is a national high-tech enterprise focusing on applying AI technology to the industrial field. Provide visual imaging, algorithm computing power and automatic control AI system solutions for various sub-industries.

Inspection principle

The design scheme uses 6 sets of high-pixel industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for the appearance defects of bottle products. The inspection speed is 100 pieces/minute, and the equipment can operate 24 hours a day. Products can be automatically rejected online.

The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software. The entrance and exit of the testing machine can be integrated with the customer's on-site conveyor line, and can be connected with upstream and downstream production equipment according to the specific production needs of the customer's site.

Application of Cameras

•
• Bottle mouth plane detection, install a set of industrial cameras above the bottle mouth, and use it with the lens inside the ring to collect plane images of the bottle mouth and the inner wall of the bottle mouth;
• The outer bottom of the bottle is detected, the bottle body is suspended in the air through a specific conveying mechanism, and a set of industrial cameras is installed below, and the image of the outer bottom of the bottle is collected with the use of visual light sources;
• For the inspection of the side surface of the bottle body, 4 sets of industrial cameras are installed around the bottle body to form a 360-degree annular surface inspection, which is used in conjunction with the use of visual light sources to collect side images from the side.

After-sale service

The production cycle of the whole machine is expected to take 60 days. If additional inspection requirements are added or more adjustment needed, the time will be appropriately extended accordingly. After the equipment arrives at the customer's site, our company arranges after-sales personnel to complete installation and adjustment at the customer's site.
