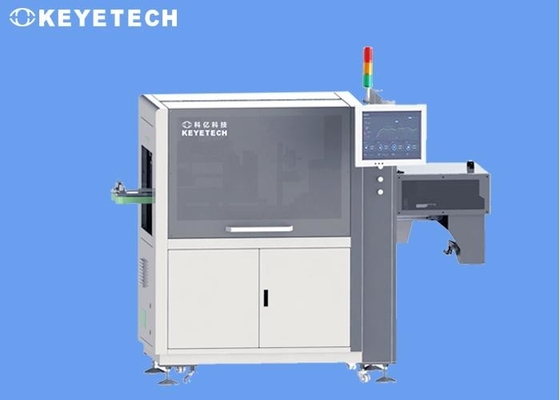

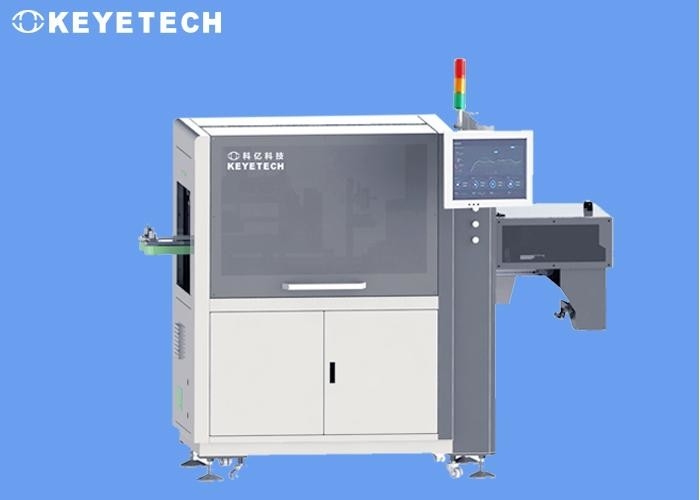

30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions

30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions

  • 30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions
  • 30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions
30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: 30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions Place Of Origin: Anhui,China
Weight: 500 Kg Warranty: 1 Year
Condition: New Technic Scheme: Provided
Applications: Plastic Packaging Solutions After-sale: Remote Service
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card

30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions

Item 30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions Main Material Stainless steel
Weight 500kg Size 4250*1650*1860mm
Software Algorithm Deep Learning Voltage Ac220/50Hz
Current 4kw Air Pressure 0.5-0.8Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method High-Speed Industrial Camera Number Of Camera Depending on the specific situation




Inspection standards

Item Camera Position Inspect Precision Accuracy Speed
KVIS 4 bottle body Black sopt,dirt,size,burr,flash,hole,label position,scratch,thickness,foreign item,etc. >0.5mm
1 bottle mouth >0.5mm 99%

100-150

pcs/min

1 outer bottle >0.5mm
1 inner bottle >0.5mm
1 bottles shoulder >0.5mm



Inspection principle

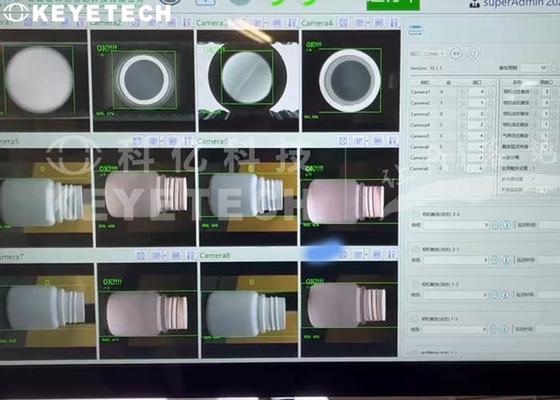

After the system collects the sample image, it compares and analyzes the image processing software with the standardized sample to determine good and bad products, and the defective products are automatically eliminated online. After the finished product is tested, the counting function can be realized, and the counting accuracy rate is 99.9%.

30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions 0

The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and choose the most suitable accuracy standard for their own production conditions, so as to control the defective rate.





Vision solutions

In the actual inspection, due to the influence of the critical fluctuation state of some inspection item data, it will lead to a certain probability of false detection of the product, which can be adjusted through the parameter setting of the system software to achieve the actual effect.

  • For defect features such as black spots and bubbles, the gray value contrast difference corresponding to the detection index must be greater than 30 (it can be understood as: place the sample at an arm’s length, about 30cm or more, and the defect features can be seen visually), you can effective detection. If the sample has transparent oil stains or light-colored black spots, the gray value contrast difference is low (less than 30), the detection effect cannot be achieved.
  • 30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions 1
  • Due to the different complexity of the structural features of different products, in actual application, there will be a certain area of detection blind area in the overlapping area of the plane lens imaging structure, and the image cannot be collected within this blind area, so it cannot be effectively detected.

Advantages of our system

  1. AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
  2. Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
  3. Multi-orientation: 360 ° comprehensive inside and outside the samples
  4. High precision: detection accuracy can be high
  5. Modularization, can flexibly increase or decrease the detection function according to customer actual needs
  6. Easy to operate: It is easy to operate and easy to maintain
  7. Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

30cc - 100cc Pharmaceutical Bottle Visual Inspections System Conveyor Belt Line Solutions 2

After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
