6kg PE Plastic Barrel Visual Inspection System For Inside Outside Size Measurement

6kg PE Plastic Barrel Visual Inspection System For Inside Outside Size Measurement

  • 6kg PE Plastic Barrel Visual Inspection System For Inside Outside Size Measurement
  • 6kg PE Plastic Barrel Visual Inspection System For Inside Outside Size Measurement
6kg PE Plastic Barrel Visual Inspection System For Inside Outside Size Measurement
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Inspection Sytem For Inside Outside Size Measurement WEIGHT: 500kg
Brand: KEYE Material: SS 304
Key Tech: AI Algorithm Show Room: None
Voltage: Adapt To Natioal Standards After-sale: Remote Service
OEM: Yes Loading Port: Shanghai
High Light:

6kg PE Barrel Visual Inspection System

,

6kg Plastic Barrel Visual Inspection System

6kg PE Plastic Barrel Visual Inspection Sytem For Inside Outside Size Measurement



System operating parameters
Dimensions

See the design drawings

for details

Power and frequency 220V 20A 50HZ
Total power 3kw ~ 4kw Air pressure 0.5~0.8MPa Purify and oil-free
Working temperature -20℃ ~ 60℃ Working humidity Below 50% relative humidity



Overview of inspection

After the regular sampling inspection, the product will be sent to the inspection station inside our inspection machine for sequential inspection through the conveying line in a stable and orderly manner. After processing by the image processing software and AI detection algorithm, the report output will be made on the size of the key parts that need to output data.



The overall equipment integrates mechanical mechanism, visual optical hardware and detection system software. The equipment adopts a highly integrated detection and calculation module, which has the characteristics of compact space, convenient installation and deployment, accurate and fast detection, simple operation and easy use. It can be freely matched and installed at any position of the assembly line for detection to ensure product quality.



Inspection principle

Our company's design scheme adopts 5 sets of high-pixel area array industrial cameras and high-performance strobe light sources, and comprehensively detects the size of cans. The design detection speed of the whole set of detection equipment is 5 pieces per minute, and the equipment can realize 7*24 hours all-weather run.

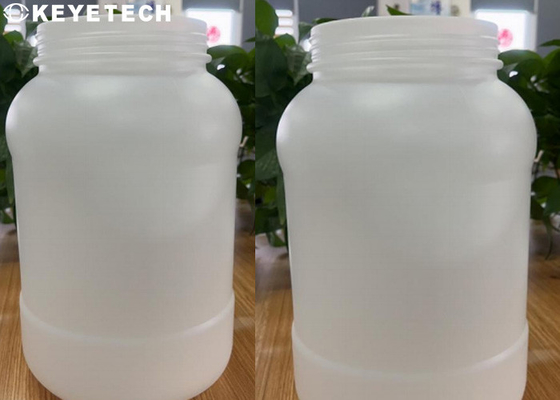

6kg PE Plastic Barrel Visual Inspection System For Inside Outside Size Measurement 0



Application of camera



  1. The first station: Arrange a set of industrial cameras on the top of the tank mouth, cooperate with the use of visual light sources, collect the images of the inner and outer diameters of the tank mouth, ellipticity, and thread top diameter for analysis and processing.
  2. The second station: arrange 2 sets of industrial cameras at opposite angles on the side of the tank mouth, cooperate with the use of visual light sources, collect the slope height of the tank mouth, and the image of the unevenness of the tank mouth surface for analysis and processing; The distance, measured by an algorithm.

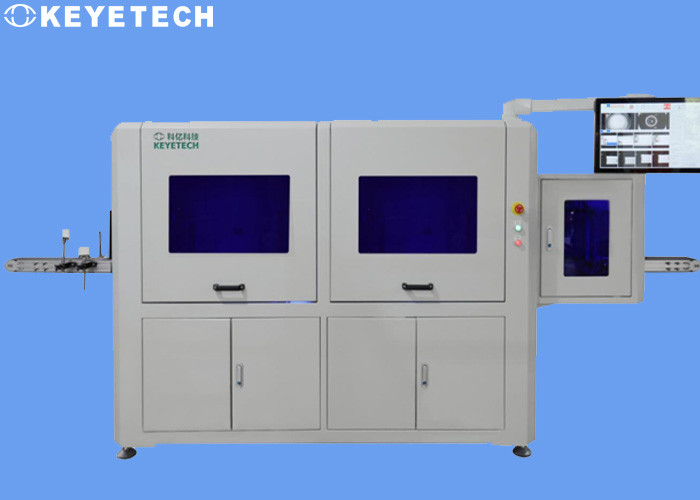

6kg PE Plastic Barrel Visual Inspection System For Inside Outside Size Measurement 1

  1. The third station: Arrange a set of industrial cameras on the middle and upper part of the side of the tank mouth, and cooperate with the use of visual light sources to collect the images of the upper part of the tank - 210 height, the middle part of the tank body - 170 height above, and the middle part of the tank body - 125 height images for analysis and processing .
  2. The fourth station: Arrange a set of industrial cameras at the middle and lower part of the side of the tank mouth, and cooperate with the use of visual light sources to collect the images of the middle section of the tank body - lower 80 heights and the lower part of the tank body - 50 heights for analysis and processing



After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.



After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
