Plastic Pharmaceutical Bottle Inspection Machine High Accuracy Sorting

Plastic Pharmaceutical Bottle Inspection Machine High Accuracy Sorting

Plastic Pharmaceutical Bottle Inspection Machine High Accuracy Sorting
Plastic Pharmaceutical Bottle Inspection Machine High Accuracy Sorting
Plastic Pharmaceutical Bottle Inspection Machine High Accuracy Sorting
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Plastic Pharmaceutical Bottle Inspection Machine Weight: 400kg
Color: According To Customer's Need Warranty: ONE YEAR
Function: Separate Bad Out From Good Sorting Accuracy: 99.98%
BOTTLE DIAMETER: 10mm~120mm SIZE: 2300*1200*1850mm
Camera: Inside/Outside Light Camera Loading Port: Shanghai
High Light:

Plastic Pharmaceutical Bottle Inspection Machine

,

High Accuracy Sorting Inspection Machine

Plastic Pharmaceutical Bottle Inspection Machine High Precision Accuracy Sorting Device



Inspection standards

Model Number of camera Inspection scope Inspection content Detection precision Accuracy Capacity

KVIS-SC10



1 set Bottle lip area Black spot, stain, impurity ≥0.2mm 99% 120/min
flash, injection incomplete ≥1.0mm 99%
4 sets Upper area of bottle body  Black spot, stain, impurity ≥0.2mm 99%
Bubble ≥1.0mm 99%
4 sets Lower area of bottle body Black spot, stain, impurity ≥0.2mm 99%
Bubble ≥1.0mm 99%
1 set Outside of bottle base Black spot, stain, impurity ≥0.2mm 99%
Injection point offset ≥1.5mm 99%
Hole ≥1.0mm 99%




Inspection Principle

Many pharmaceutical and health care product manufacturers use automated methods for pre-production, post-packaging, and post-packaging testing to reduce inefficiency and huge labor and management costs caused by manual inspection. In order to meet the quality requirements, many pharmaceutical factories combine machine vision systems and automated machines (production line machines) to eliminate products with black spots, dirt, flashes, material shortages, deformation and other defects in medicine bottles through high-speed shooting of data. High quality and efficient production line process.

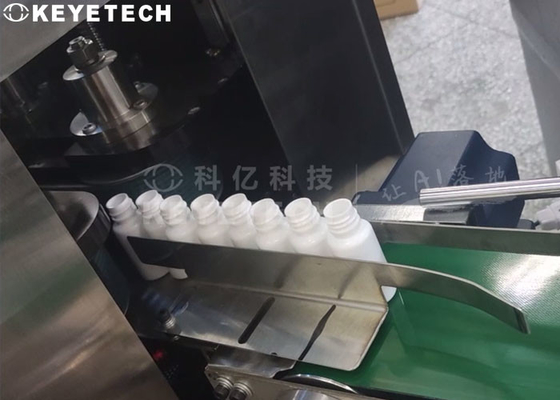

Plastic Pharmaceutical Bottle Inspection Machine High Accuracy Sorting 0

In the inspection process of medicine bottles, with the help of the machine vision system, the overall inspection efficiency and inspection accuracy are greatly improved compared with the previous manpower efficiency. The industrial camera in the inspection machine system can capture the image of each passing medicine bottle on the high-speed production line, and then analyze the good/defective product through the back-end image software analysis, and can also record the image data so that the subsequent sequence can be Quickly and accurately query, trace and retrieve items. Various automatic auxiliary machines can also be connected to the front and back ends of the inspection to comprehensively improve the automation level of the production line.




System features

  1. AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training.
  2. Dataization: Independent database, save multiple samples, analyze non-good products, and retain history.
  3. Multi-orientation: 360 ° comprehensive inside and outside the bottle without dead corners for medical packaging bottle caps, bottle mouths, bottle bottoms.
  4. High precision: detection accuracy can reach 99.5%.
  5. Modularization, can flexibly increase or decrease the detection function according to customer actual needs.
  6. Easy to operate: It is easy to operate and easy to maintain.
  7. Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment.

Our advantages

The medicine bottle inspection machine system can greatly improve the quality of medicine bottle production, reduce defects and improve customer satisfaction satisfaction and get more production orders.

Plastic Pharmaceutical Bottle Inspection Machine High Accuracy Sorting 1
