Full Automated Visual Inspection System For Pharmaceutical Bottles

Full Automated Visual Inspection System For Pharmaceutical Bottles

  • Full Automated Visual Inspection System For Pharmaceutical Bottles
  • Full Automated Visual Inspection System For Pharmaceutical Bottles
  • Full Automated Visual Inspection System For Pharmaceutical Bottles
  • Full Automated Visual Inspection System For Pharmaceutical Bottles
Full Automated Visual Inspection System For Pharmaceutical Bottles
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Name: Visual Inspection System For Pharmaceutical Bottles Origin: China
Feature: Easy To Operate Material: SS 304
Function: Product Classification Test Report: Provide
Technical Report: Yes Key Technology: AI Algorithm
OEM/ODM: Yes Loading Port: Shanghai
High Light:

Fully Automated Visual Inspection System

,

Pharmaceutical Bottles Visual Inspection System

Full Automated Visual Inspection System For Pharmaceutical Bottles



Inspection Standard

Model Number of camera Inspection scope Inspection content Detection precision Accuracy Capacity









KVIS
1 set Concave area Black spot,stains (color different) ≥0.2mm Qualified more than 96% 300 Pcs/mins
Wrong detecting rate less than 1%
1 set Top area Black spot,stains (color different) ≥0.2mm Qualified more than 96%
Wrong detecting rate less than 1%
4 set Side area Black spot,stains (color different) ≥0.2mm Qualified more than 96%
Wrong detecting rate less than 1%
Printing missing ≥1.0mm Qualified more than 96.5%
Wrong detecting rate less than 1%
Injection incomplete ≥0.5mm Qualified more than 98%
Wrong detecting rate less than 0.8%
Sealing not good ≥1.0mm Qualified more than 95%
Wrong detecting rate less than 1%


4 set

Ring area
Black spot, stains (color different) ≥0.2mm Qualified more than 96%
Wrong detecting rate less than 1%
Incomplete ≥0.5mm Qualified more than 98%
Wrong detecting rate less than 0.8%






















Product background

Vial vial, also known as borosilicate glass or soda-lime glass controlled injection bottle, is a small bottle with a rubber stopper combined with a cap. There are brown, transparent and other types of vials. The vials made of borosilicate are the mainstream products on the market and are often used in medical and health care. With the development of industrial technology, the existing technology will use visual inspection technology to test the quality of the vials, to detect whether there are cracks in the vials, whether the gap of the cap meets the requirements, etc., with high detection accuracy and fast detection efficiency, suitable for high-speed production and production. in line.



Inspection Principle

In the vial production line, according to the results of the visual inspection, different transportation channels are used to connect with the terminal of the visual inspection production line to change the transportation channel of the vials, so that the qualified vials are transported to one area, and the unqualified vials are transported to one area. Vials are collectively transported to another area.

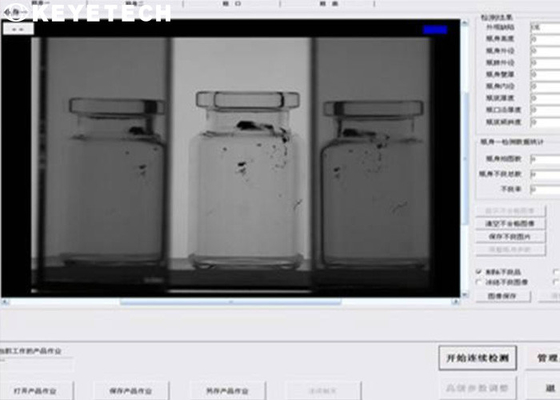

Full Automated Visual Inspection System For Pharmaceutical Bottles 0

However, due to the swing during the switching process, the transport channel of the vial will turn, and coupled with the inertia of the switching process, the vial will fall sideways. , the vial will be bent, which will cause the vial to not be transported continuously. Coupled with the forward thrust of the subsequent vial, the vial will be squeezed against each other on the transportation channel and damaged. Once damaged, production needs to be suspended. Clean up glass shards and potions that affect yield.

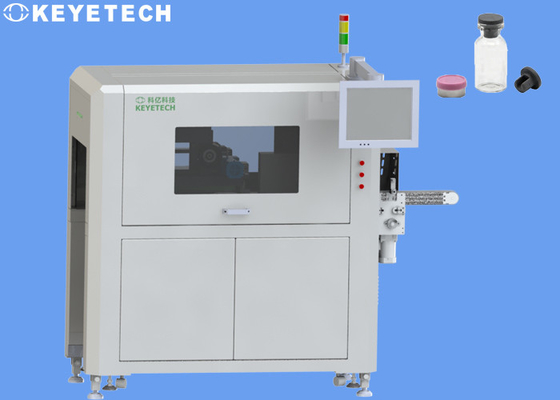

Equipment configurations

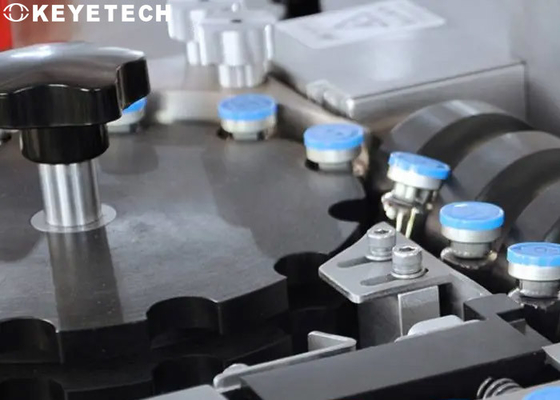

Full Automated Visual Inspection System For Pharmaceutical Bottles 1



Features of system

  • AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
  • Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
  • Multi-orientation: 360 ° comprehensive inside and outside the samples
  • High precision: detection accuracy can be high
  • Modularization, can flexibly increase or decrease the detection function according to customer actual needs
  • Easy to operate: It is easy to operate and easy to maintain
  • Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment
