Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling

Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling

  • Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling
  • Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling
  • Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling
Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: CE/ISO 9001
Model Number: KY-PB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1set per 8 weeks
Contact Now
Detailed Product Description
Weight: 400kg Compressed Air: 0.5-0.8Mpa
Accuracy: 0.15mm Size: 2300x1200x1850mm
Voltage: Adapt To National Standards Inspect: Surface Defects Of The Bottle
Power: 4Kw Speed: 240/min
OEM: Accept Quality: High Grade
Highlight:

Beverages Bottle Inspection System

,

Yakult Package Bottle Inspection System

,

0.15mm Accuracy Bottle Inspection System

Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling

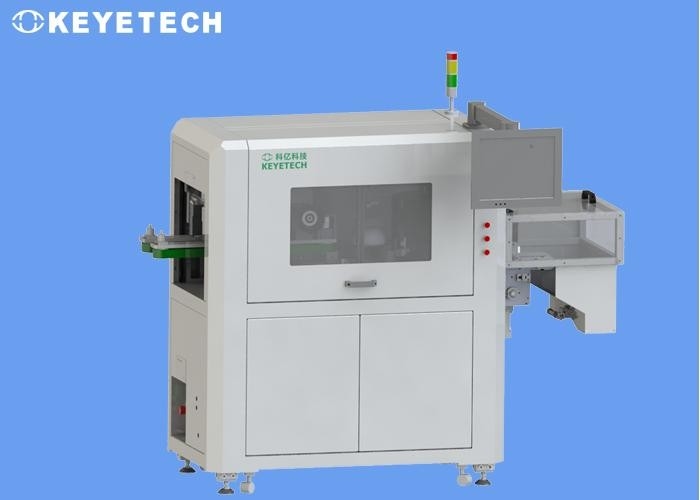

Equipment Overview

We adopt 6~8 sets of high pixel industrial cameras and high-performance LED strobe light sources to conduct comprehensive defect inspection on the appearance of products. The entire set of detection equipment includes mechanical transmission part, optical imaging system, visual electronic hardware, and detection system software. The entire equipment can be independently placed on the customer's site, The maximum detection speed can reach 100~200 pcs/min, the unqualified products can be automatically rejected online and good product can be counted and packed if needed.

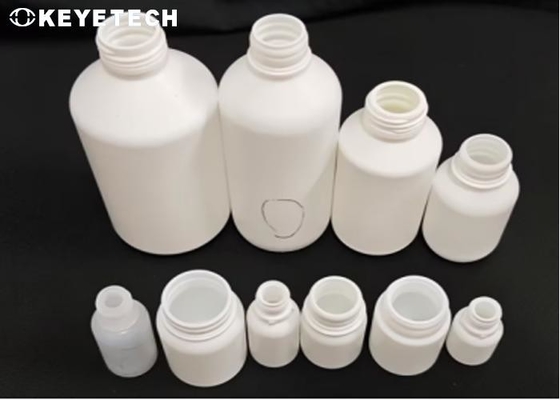

Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling 0



Operation Parameters

Power 5.0-7.0Kw Voltage/Current 3 phase 440V / 60Hz
Noise <70dB Compressed air 0.5~0.8MPa
Ambient Temperature -20℃ ~ 60℃ Ambient Humidity Less than 50%
System Language English / Spanish Mechanical Structure Carbon Steel / SS 304
Total Weight About 300Kg Dimension According to the drawings



Configurations

Description Model Unit Qty Remark
Hardware
Industrial Cameras KeyeTech Set 8 China
Lenses KeyeTech Set 8 China
LED Light Source KeyeTech Set 4 Taiwan, China
Photoelectric Sensor SICK Pair 1 Germany
Electromagnetic Valve SMC PC 1 Japan
Industry Power Mean Well Set 3 Taiwan, China
Main Control Board KEY-PC-2.1 PC 1 China
AI Computing Unit

KeyeTech EBS-1684X



 Set 2 China
Pollution Filter KeyeTech AC30D-02G-A Set 1 China
HID Touch Screen AOC 21.5” Set 1 China
Software
AI Algorithm System KeyeTech KVS-V16.0 Set 1 China
AI Cloud Platform KeyeTech Set 1 China
Big Data Server KeyeTech Set 1 China
Operation System Linux Set 1 China
** The above configuration is only for reference

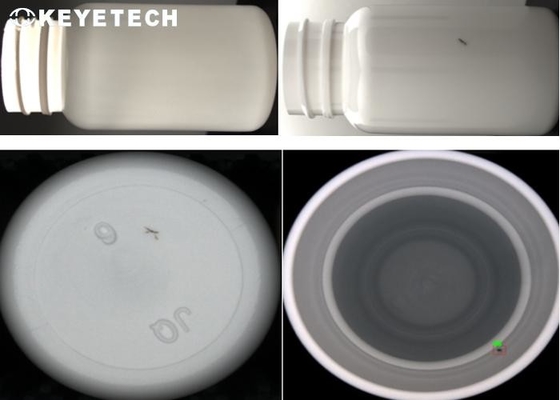

Inspection Picture

Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling 1

Empty Dairy Bottle Machine Vision Technology Before Labeling and Liquid Filling 2
