Sauce Packaging Bottle Square Big Capacity Barrel Inspection Equipment

2L Capacity Sauce Packaging Square Barrel Defect Detection Equipment

Inspection principle

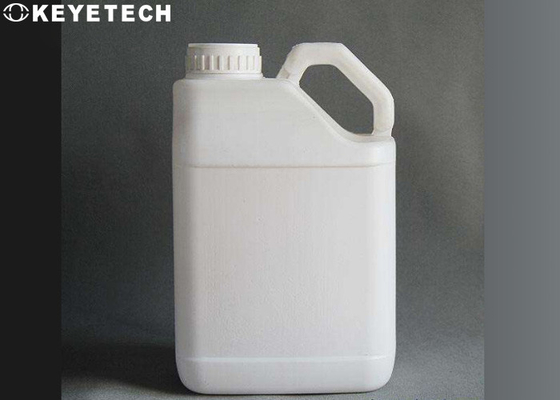

The 2L capacity sauce packaging square barrel defect detection equipment is an equipment for all-round detection of defects in the 2L sauce packaging square barrel during the production process. The square barrel is a regular bottle. Whether it is used at home or in a restaurant, it has extremely high stability and a very large capacity.

It is very popular with some seasoning manufacturers, but most of the square barrels are made of injection molding. At the same time, for the convenience of taking, the square bucket will be equipped with a handle, so during the production and injection molding process, there may be defects in the appearance of some products, which will affect the normal use of the product. Therefore, manufacturers usually provide professional visual inspection equipment. In this way, defective products and possible problems in the production process are found during the inspection process.

Detection principle

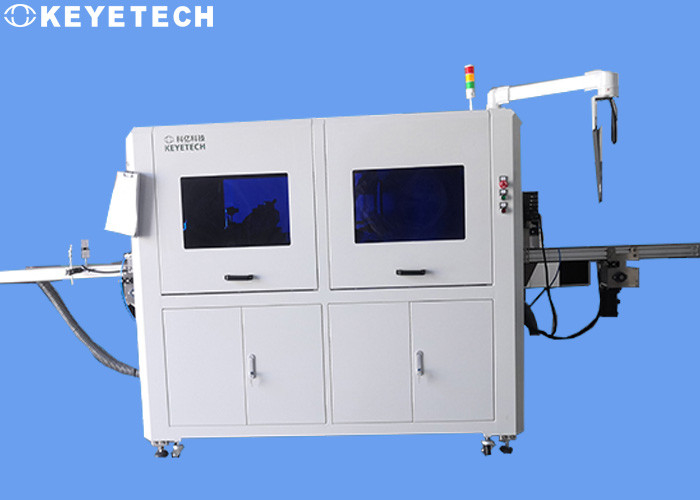

The defect detection equipment outside the 2L sauce packaging square barrel is connected to the front-end automation mechanism (which can be directly connected to the conveyor line, and the specific implementation method is to be determined according to the production site), and the 2L sauce packaging square barrel is stably and orderly transferred to the specific inspection process. Then the high-pixel sample image captured by the industrial camera is transmitted to the image processing software, and the good and bad products are detected and determined by the AI ​​artificial intelligence algorithm, and the corresponding pneumatic components are controlled to eliminate the bad products, and finally the qualified products are output. The back-end conveying platform of the testing machine can be connected to the automatic packaging mechanism.

Equipment overview:

➢ Online high-speed detection, improve detection efficiency and accuracy, and reduce labor costs.

➢ Accurate identification of high-pixel industrial cameras, the number of cameras is designed on demand, the accuracy is 0.1mm, and the speed is 300 pieces/min (can be customized according to testing needs).

➢ Compatible with testing products of multiple specifications, saving costs.

➢ Detect and remove defects such as black spots, color difference, impurities, gaps, residual material, flash, air bubbles, voids, deformation, uneven thickness and size of 2L sauce packaging square barrels.

Product advantages

AI algorithm: high stability, can adapt to the disturbance of the environment and background; after training, it can automatically identify different defect samples.

Dataization: independent database, save a variety of samples, analyze defective products, and keep historical records.

Visualization: Real-time display of sample images, running status, real-time statistical inspection results and defective product defect classification information.

High precision: The detection accuracy rate can reach 99.5%.
