Cosmetic PET Bottle Embryos Detection Equipment Humanized HMI

Cosmetic PET Bottle Embryos Detection Equipment Humanized HMI

  • Cosmetic PET Bottle Embryos Detection Equipment Humanized HMI
  • Cosmetic PET Bottle Embryos Detection Equipment Humanized HMI
  • Cosmetic PET Bottle Embryos Detection Equipment Humanized HMI
  • Cosmetic PET Bottle Embryos Detection Equipment Humanized HMI
Cosmetic PET Bottle Embryos Detection Equipment Humanized HMI
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Name: Cosmetic PET Bottle Embryos Defect Detection Equipment Equipment Advantages: Three-dimensional
Camera Number: 10 Set Colour: According To Customer's Need
After-sales Service: Video Technical Support Touch Screen: Humanized HMI
Product Type: Bulk Material Light Source: LED
Product Advantages: High Stability, Can Adapt To The Disturbance Of The Environment And Background
High Light:

Humanized HMI Packaging Inspection Equipment

,

PET Bottle Packaging Inspection Equipment

Cosmetic PET bottle embryos defect detection equipment



The defects of cosmetic PET bottle embryos are mainly caused by defects such as black spots, bubbles, impurities, overlaps, and lack of materials in the production process due to the incomplete production technology and mechanized production line. PET bottle embryos are part of the production of cosmetics. It is mainly processed by injection molding. Before it is made into a finished product, it must undergo strict product appearance detection. Through equipment detection, problems in production can be found in time, and it will play a role in reminding to improve the quality of products and ensure the interests e will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and seleof consumers.

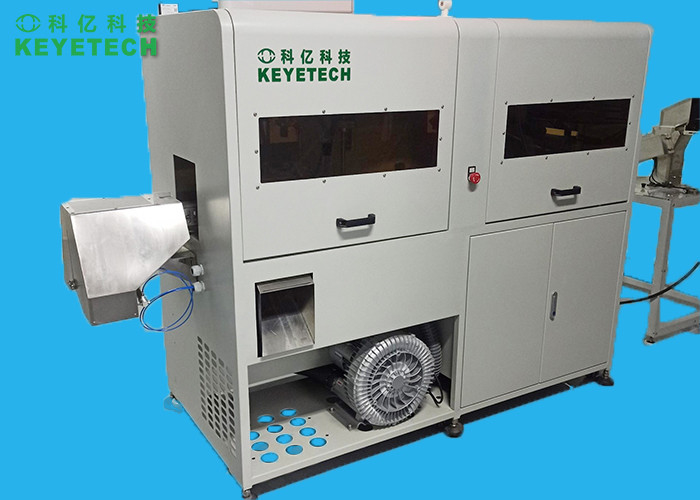

The overall equipment for PET bottle embryos defects integrates mechanical mechanisms, visual optical hardware and detection system software, defective product rejection and counting devices. The normal detection speed is 70 pieces/min. The front end of the bottle embryos detection machine is directly connected to the injection molding machine conveyor line ( The height of the conveyor line is adjustable from 960mm -1380mm) to ensure that the products enter the detection station in sequence, and the equipment can operate 7*24 hours a day, greatly improving production efficiency.



The overall detection equipment is equipped with 10 sets of high-pixel industrial cameras to comprehensively detect the appearance defects of the outer side of the bottle embryos, the opening of the embryo and the bottom of the embryo. After the system collects the sample image, the image processing software is compared with the standardized sample to determine the good product and the bad product. Good products are detected and defective products are automatically eliminated online, and the counting function can be realized after the finished product is detected, and the counting accuracy rate is 100%. The softwarct the most suitable accuracy standard for their own production conditions, thereby controlling the defect rate.



The specific detecting technical standards are as follows:



Model Cameras Detection Range Detection Content Detection Accuracy Accuracy Rate False Detection Rate Detection Speed
Kvis-Sc10 4Set Around The Bottle Preform Black Spots, Bubbles, Impurities (Different Colors) ≥0.3Mm 99% ≤0.2% 70Pcs/Min
1Set Preform Base Black Spot, Hole ≥1.5Mm 99% ≤0.2%
4Set Opening Of The Preform Black Spots, Stains, Impurities (Different Colors) ≥0.2Mm 99% ≤0.2%
Overlap, Lack Of Material ≥1Mm 99% ≤0.2%
1Set Support Ring Lack Of Material ≥1Mm 99% ≤0.2%



Cosmetic PET Bottle Embryos Detection Equipment Humanized HMI 0

Equipment advantages

High-pixel industrial camera

High-resolution industrial lenses

High-intensity strobe light source

Artificial Intelligence (Al) Algorithms

High-performance GPU computing processing platform

High-resolution industrial touch screen
