Place of Origin: | China |
Brand Name: | KEYE |
Certification: | NO |
Model Number: | KVIS-B |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free wood |
Delivery Time: | 4 to 6 weeks |
Payment Terms: | L/C, T/T |
Supply Ability: | 1 set per 6 weeks |
Name: | Cap Lids Visual Inspection Equipment | Origin: | CN |
---|---|---|---|
Brand: | KEYE | After-sales Service: | 24*7h Online Service |
Operating Environment: | GMP Workshop | Industrial Applications: | Quality Inspection |
Advantages: | Easy Operate | Transfer Method: | Lossless Delivery |
Product Configuration: | High-brightness Strobe Light Source | Loading Port: | Shanghai |
High Light: | Bronzing Defect Detection Equipment,Wine Lid Defect Detection Equipment |
Equipment features:
1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training |
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history |
3.Multi-orientation: 360 ° comprehensive inside and outside the samples |
4.High precision: detection accuracy can be high |
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs |
6.Easy to operate: It is easy to operate and easy to maintain |
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment |

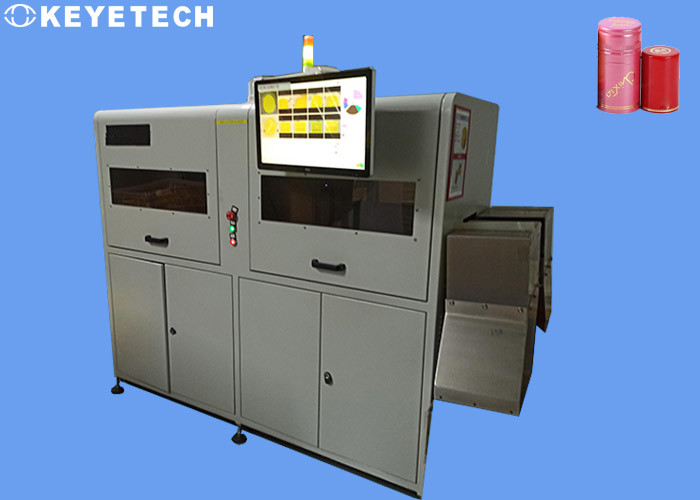

Wine lid surface bronzing defect detection equipment
The bronzing defect detection equipment on the surface of wine caps is mainly aimed at the production process of various wine caps. Due to the printing process and tools, the bronzing pattern is missing and offset, blurred, hair, black spots, chromatic impurities and other defects. Many wine The factory uses the bronzing process to show the high-end of its own brand, so the winery is generally equipped with professional testing equipment to control the quality and quality.
Detection principle
The packaging surface bronzing testing equipment is connected to the front-end automation mechanism (which can directly connect to conveying lines, waterfall capping machines, vibrating discs and other material sorting mechanisms, and the specific implementation method is to be determined according to the production site), and the samples that need to be tested for surface bronzing will be stable.
Orderly transfer to a specific inspection station, and then transmit the captured high-pixel sample image to the image processing software through the industrial camera, and the AI artificial intelligence algorithm detects and determines the good and bad products, and controls the corresponding pneumatic components to remove the defective products. Eliminate, and finally output the qualified products, and the back-end conveying platform of the testing machine can be connected to the automatic packaging mechanism.
Equipment overview
➢ Online high-speed detection, improve detection efficiency and accuracy, and reduce labor costs.
➢ Accurate identification of high-pixel industrial cameras, the number of cameras is designed on demand, the accuracy is 0.1mm, and the speed is 300 pieces/min (can be customized according to testing needs).
➢ Compatible with testing products of multiple specifications, saving costs.
➢ Detect and remove defects such as pattern loss, offset, blur, hair, black spots, chromatic aberration, and impurities on the surface of bronzing.
Product advantages
AI algorithm: high stability, can adapt to the disturbance of the environment and background; after training, it can automatically identify different defect samples.
Dataization: independent database, save a variety of samples, analyze defective products, and keep historical records.
Multi-directional: 360° all-round detection of surface bronzing samples without dead angle.
Visualization: real-time display of sample images, running status, real-time statistical inspection results and defective product defect classification information.
High precision: The detection accuracy rate can reach 99.5%.
Modularity: The detection function can be flexibly increased or decreased according to the actual needs of customers.
Easy to operate: The equipment is easy to operate and easy to maintain.
