300 Pcs Per Minute Speed Water Bottle Preform Vision Inspection System

Product Details:

Place of Origin:	China
Brand Name:	KEYE
Certification:	CE/ISO 9001
Model Number:	KY-PP

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Fumigation-free wood
Delivery Time:	8 to 10 weeks
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Name:	Preform Sorting Machine	Test Report:	Provided
After-sales Service:	Video Technical Support	Information Storage:	Available
Image Capture:	Available	Core Component:	Camera And Ejector
Speed:	300 Pcs/min	Number Of Cameras:	6~11sets
Highlight:	PET Bottle Embryo Automatic Detection Equipment , PET Bottle Automatic Defect Detection Equipment

300 Pcs Per Minute Speed Water Bottle Preform Vision Inspection System

Company Profile

Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in visual inspection industry. As a leading manufacturer&Designer, It can provide the most advanced level AI visual inspection equipment and the customized AI system solutions of visual imaging, computing power, algorithm, and automatic control software for various sub-industries.

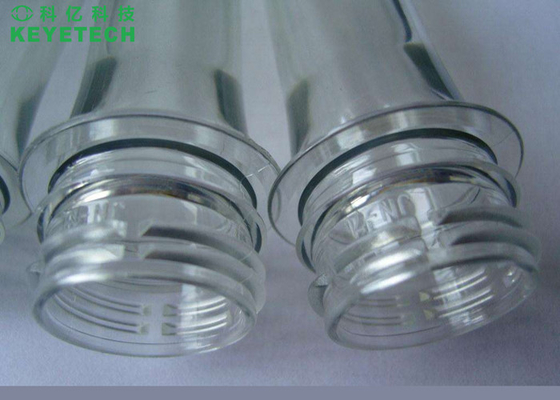

300 Pcs Per Minute Speed Water Bottle Preform Vision Inspection System 0

The company was established in 2011, it has a high-level R&D team from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.

Inspection principle

The design scheme uses high-pixel industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for the appearance defects of bottle products. The inspection speed is 300-400 pcs/min, and the equipment can operate 24 hours a day. Products can be automatically rejected online.

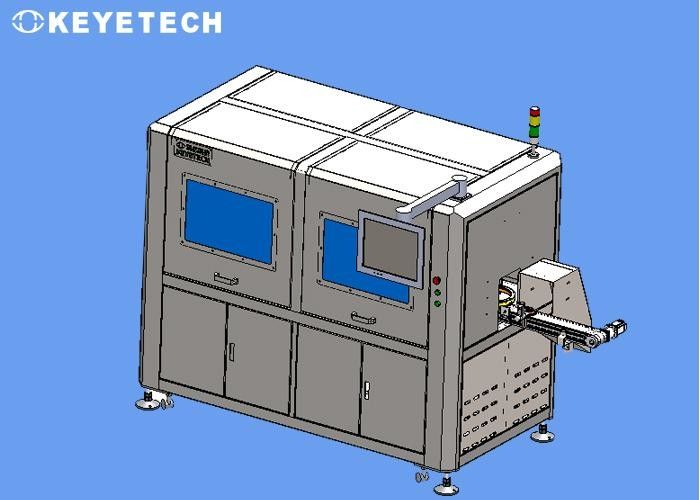

300 Pcs Per Minute Speed Water Bottle Preform Vision Inspection System 1
The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software. The entrance and exit of the testing machine can be integrated with the customer's on-site conveyor line, and can be connected with upstream and downstream production equipment according to the specific production needs of the customer's site.

Technical List

Model	Cameras	Detection Range	Detection Content	Detection Accuracy	Accuracy Rate	False Detection Rate	Detection Speed
KY-PP	4Set	Around The Bottle Preform	Black Spots, Bubbles, Impurities (Different Colors)	≥0.3Mm	99%	≤0.2%	300Pcs/Min
	1Set	Preform Base	Black Spot, Hole	≥1.5Mm	99%	≤0.2%
	4Set	Opening Of The Preform	Black Spots, Stains, Impurities (Different Colors)	≥0.2Mm	99%	≤0.2%
	4Set	Opening Of The Preform	Overlap, Lack Of Material	≥1Mm	99%	≤0.2%
	1Set	Support Ring	Lack Of Material	≥1Mm	99%	≤0.2%

After-sale Service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

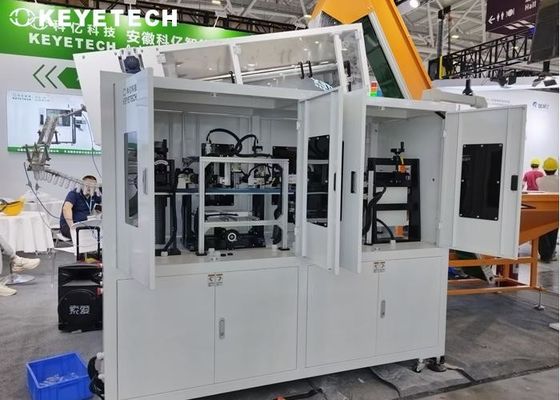

300 Pcs Per Minute Speed Water Bottle Preform Vision Inspection System 2
