Anhui Keye Information & Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | KEYE |
| Certification: | NO |
| Model Number: | KVIS-B |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free wood |
| Delivery Time: | 4 to 6 weeks |
| Payment Terms: | L/C, T/T |
| Nema: | Medical Drug Brown Bottle Testing Equipment | Ambient Temperature: | -20℃ ~ 60℃ |
|---|---|---|---|
| Environment Humidity: | Below 50% Relative Humidity | After Sale Service: | On-line Service |
| Core Component: | High Resolution Industrial Lens | Test Report: | Provided |
| Voltage And Current: | 220V 20A 50HZ | System Size: | See Design Drawings For Details |
| High Light: | Brown Bottle Visual Inspection System,Medical Drug Visual Inspection System,220V 50HZ Visual Inspection System |
||
General condition of equipment:

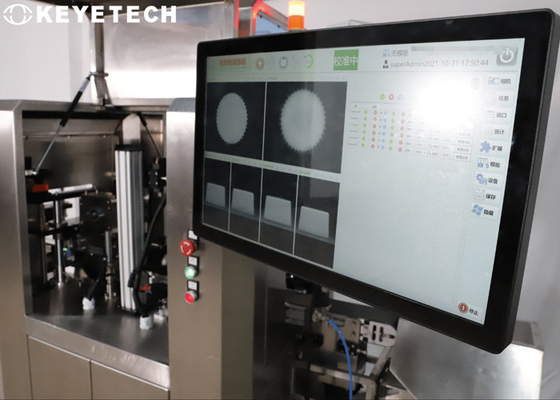

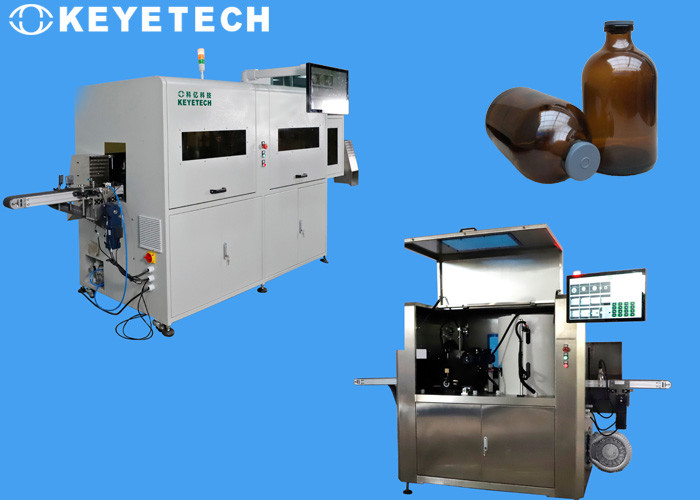

The brown medicine bottle appearance inspection equipment is equipped with 5 sets of high-pixel industrial cameras to conduct a comprehensive inspection of the appearance defects on the outer side (surroundings) and bottle mouth of the brown medicine bottle. After the analysis, the good and bad products are determined, and the defective products are automatically eliminated online. After the finished product is detected, the counting function can be realized, and the counting accuracy rate is 100%. The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and select the most suitable accuracy standard for their own production conditions, thereby controlling the defect rate.
Test standard&Equipment overviews
| Model | Camera | Scope Of Test | Test Content | Detection Accuracy | Accuracy | Detection Speed |
|
Kvis-Sc10 |
1set | Bottle Mouth Area |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | 120 Per Minute |
| Flash, Lack Of Material | ≥1.0mm | 99% | ||||
| 4 Sets | The Upper Area Of The Bottle Body (Including The Outside Of The Bottle Mouth) |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | ||
| Bubble | ≥1.0mm | 99% | ||||
| 4 Sets | Lower Area Of Bottle |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | ||
| Bubble | ≥1.0mm | 99% | ||||
| 1 Set | Outer Bottom Of Bottle | Black Spots, Stains, | ≥0.2mm | 99% | ||
| Impurities (Different Colors) | ≥1.5mm | 99% | ||||
|
Hole (Penetration, No Adhesion In The Hole) |
≥1.0mm | 99% |
|
1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training. 2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history. 3.Multi-orientation: 360 ° comprehensive inside and outside the bottle without dead corners for medical packaging bottle caps, bottle mouths, bottle bottoms. 4.High precision: detection accuracy can reach 99.5%. 5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs. 6.Easy to operate: It is easy to operate and easy to maintain. 7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment.
|
Our Advantages
The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.
During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.
