Anhui Keye Information & Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | KEYE |
| Certification: | NO |
| Model Number: | KVIS-B |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free wood |
| Delivery Time: | 4 to 6 weeks |
| Payment Terms: | L/C, T/T |
| Nema: | PET Brown Medicine Bottle Appearance Inspection Equipment | Detection Content: | Black Spots, Bubbles, Impurities (different Colors) |
|---|---|---|---|
| False Detection Rate: | ≤0.2% | After Sale Service: | On-line Service |
| Core Component: | High Resolution Industrial Lens | Test Report: | Provided |
| Voltage And Current: | 220V 20A 50HZ | System Size: | See Design Drawings For Details |
| High Light: | Brown Medicine Bottle Visual Inspection System,PET Medicine Bottle Visual Inspection System,Medicine Bottle Inspection Equipment |
||
Detection Principle

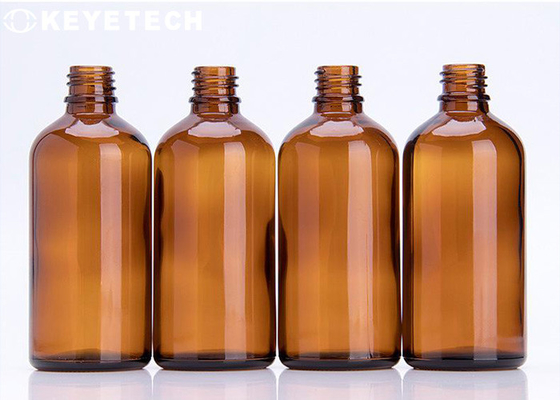

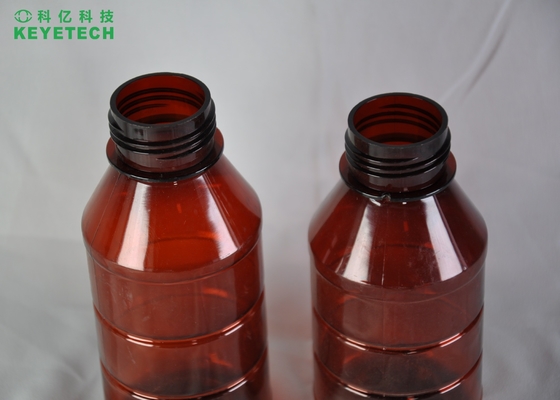

PET brown plastic bottle products are used in the pharmaceutical packaging industry. There is no printed content on the bottle body during testing. This is because the brown color can prevent the irradiation of visible light and prevent the reagents from decomposing and deteriorating. The PET brown medicine bottle appearance inspection equipment can effectively detect the appearance defects of the samples, which plays an important role in the timely detection of production problems in the pharmaceutical packaging production line. For details, please refer to the actual plan.

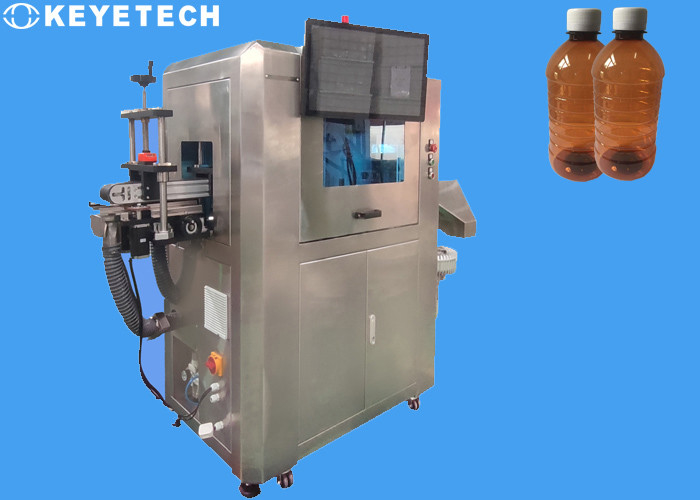

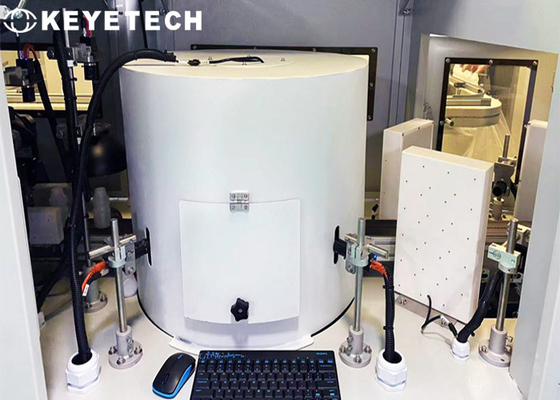

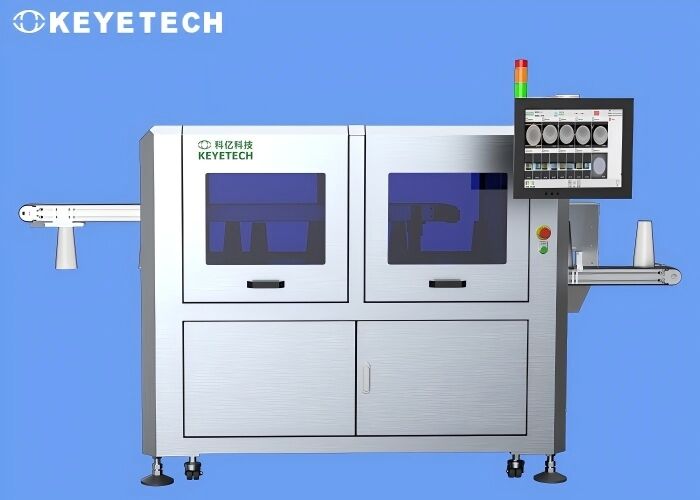

The PET brown medicine bottle appearance inspection equipment is equipped with 5 sets of high-pixel industrial cameras to comprehensively inspect the appearance defects of the side and outer side (around) and bottle mouth of the PET brown medicine bottle. After the sample comparison and analysis, the good and bad products are determined, and the defective products are automatically eliminated online. After the finished product is detected, the counting function can be realized, and the counting accuracy rate is 100%. The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and select the most suitable accuracy standard for their own production conditions, thereby controlling the defect rate.
Test details:
This plan requires preliminary communication between the two parties, and comprehensively considers the complexity and feasibility of the system. The confirmation of bottle testing requirements and indicators is as follows:
| System operating parameters | |||
| System size | See design drawings for details | Voltage and current | 220V 20A 50HZ |
| Equipment Power | 5.0-6.0kw | Compressed Air | 0.5~0.8Mpaclean And Oil-Free |
| Ambient Temperature | -20℃ ~ 60℃ | Environment Humidity | Below 50% Relative Humidity |
Testing standards
| Model | Camera | Scope Of Test | Test Content | Detection Accuracy | Accuracy | Detection Speed |
|
Kvis-Sc10
|
1set | Bottle Mouth Area |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | 120 Per Minute |
| Flash, Lack Of Material | ≥1.0mm | 99% | ||||
| 4 Sets | The Upper Area Of The Bottle Body (Including The Outside Of The Bottle Mouth) |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | ||
| Bubble | ≥1.0mm | 99% | ||||
| 4 Sets | Lower Area Of Bottle |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | ||
| Bubble | ≥1.0mm | 99% | ||||
| 1 Set | Outer Bottom Of Bottle | Black Spots, Stains, | ≥0.2mm | 99% | ||
| Impurities (Different Colors) | ≥1.5mm | 99% | ||||
|
Hole (Penetration, No Adhesion In The Hole) |
≥1.0mm | 99% |
Machining Process
The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.
During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.
Contact Person: Ms. Amy Zheng
Tel: +86 17355154206/+86 186 5518 0887
