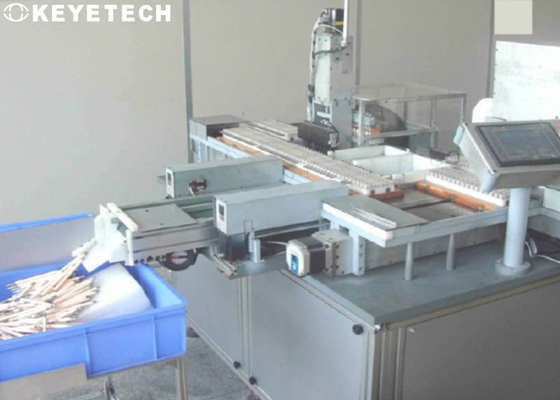

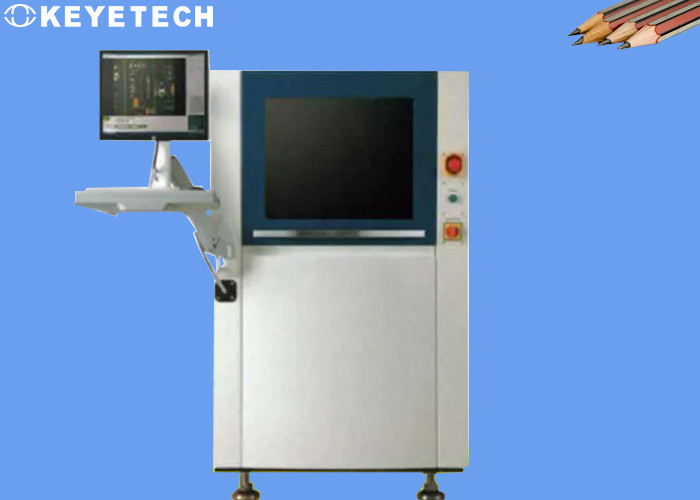

Pencil Quality Inspection Machine Product Inspection Systems 500pcs/Min

Pencil Quality Inspection Machine Product Inspection Systems 500pcs/Min

  • Pencil Quality Inspection Machine Product Inspection Systems 500pcs/Min
  • Pencil Quality Inspection Machine Product Inspection Systems 500pcs/Min
Pencil Quality Inspection Machine Product Inspection Systems 500pcs/Min
Product Details:
Place of Origin: CHINA
Brand Name: KEYE
Certification: NO
Model Number: KVIS-G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Dimension: Reference To The Drawings Power: 5.0-6.0kw
Working Humidity: -20℃ ~ 60℃ Function: Quality Analyzer
Selling Points: Easy To Operate Applications: Qualified Product Inspection
MOQ: 1 SET Packing: Plywood Carton
High Light:

500pcs/min Quality Inspection Machine

,

Pencil Quality Inspection Machine

,

500pcs/Min product inspection systems

Equipment features:

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3.Multi-orientation: 360 ° comprehensive inside and outside the samples
4.High precision: detection accuracy can be high
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6.Easy to operate: It is easy to operate and easy to maintain
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment





Inspection principle

The modern pencil processing process is to use a planer to plane the pencil board to a suitable thickness and have a slot board with a core slot that matches the diameter of the lead core, and then glue the lead core and the pencil board. The feeling of using a pencil has a lot to do with the pencil body. Because there are many different processing methods of pencil body, the appearance of the pencil body is also different.



The pencil body appearance defect detection equipment designed by KEYE TECH has carried out a full range of inspections on the appearance of the pencil body. Mainly for the appearance defects of the pen body. such as jagged, rough cut surface, burrs, deformation, damage, scratches, smudges, fractures, nicks, cracks, dents, sharp edges and other defects.



System parameter
Dimension Reference to the drawings Voltage 220V 20A 50HZ
Power 5.0-6.0kw

Air pressure

0.5~0.8MPa Cleaned and oil free

Working temperature -20℃ ~ 60℃

Working humidity

Below 50% relative humidity



Inspection details

Our design plan uses a set of high-pixel industrial cameras and high-performance stroboscopic light sources to carry out a full range of visual inspections for the appearance defects of pencil body. The inspection speed is 300~500 pieces/min. The equipment can achieve 7*24 hours. It runs around the clock, and unqualified products can be automatically rejected online.



The whole set of inspection equipment includes mechanical parts, visual electronic hardware, and inspection system software. The entrance and exit of the inspection machine can be integrated with the automation mechanism (see the design drawings for details), and can be connected to upstream and downstream production equipment according to the specific production needs of customers .



Basic Principles of Pencil Body Inspection

After moving to the designated station, the pencil body is held by the clamping mechanism, and it is controlled by the servo motor to rotate for a full circle. At the same time, there is a light source on the side, and the line scan camera captures images at the same time to obtain high-resolution scans of different sides. The inspection software compares this picture with the standard sample picture and detects the corresponding defects.



5, Real-time image

Sawtooth, rough cut surface, burrs

Pencil Quality Inspection Machine Product Inspection Systems 500pcs/Min 0
