Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Inspection Types: PET/PS Bottles Function: Bottle Inspection
ODM/OEM: Available Advantages: Easy To Operate
Show Room: None Structure: Stable
Current: 5.0kw-6.0kw Voltage: 220V 20A
MOQ: 1 Set Loading Port: Shanghai
High Light:

100ml bottle inspection System

,

PS bottle inspection System

,

100ml Heuft Bottle Inspection

Detection principle
The product is stably ordered to a specific station through the transfer device, and then the high-pixel sample image taken by the industrial camera is transferred to the image processing software, and the standard sample is compared and analyzed to determine the good product and the defective product, and control the corresponding pneumatic to remove the defective products and finally collect the qualified products.
The software will open the sample comparison standard, and the production personnel on the customer site can control the comparison accuracy and choose the accuracy standard most suitable for their own production conditions, thereby controlling the product defect rate.

Detecting details
Our design plan adopts 11 sets of high-pixel industrial cameras and high-performance stroboscopic light sources to carry out a full range of visual detection for the appearance defects of the bottle body. The detection speed is 120 pieces per minute. The equipment can realize 7*24 hours of operation, and the unqualified products can be automatically rejected online.

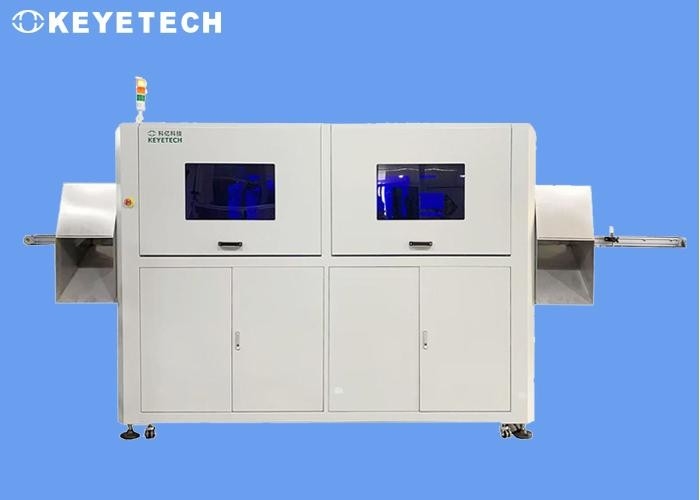

The whole set of detecting equipment includes mechanical parts, visual electronic hardware and detecting system software. The entrance and exit of the detecting machine can be integrated with the on-site conveyor line (see the design drawings for details), and can be connected to the upstream and downstream production equipment according to the specific production needs of the customer.

System operating parameters
Dimensions

See the design drawings
for details

Power and frequency 220V 20A 50HZ
Total power 5.0~6.0 kw Air pressure 0.5~0.8MPa Purify and oil-free
Working temperature -20℃ ~ 60℃ Working humidity Below 50% relative humidity


Inspection procedure

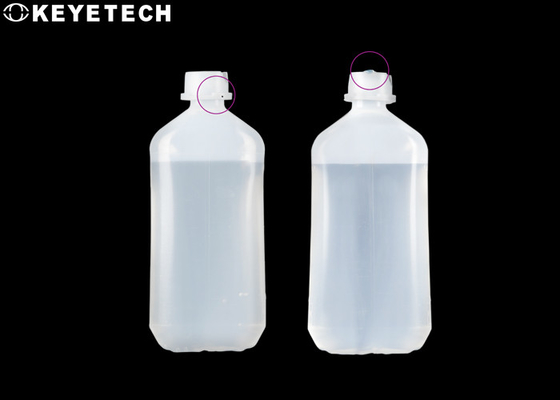

PS Material Visual Inspection System Defect Detection Bottle Sorting Machine 0



 Detection standard

Model Camera number Detection range Detection content and accuracy Detection precision Speed



















KVIS- SC11


1 set

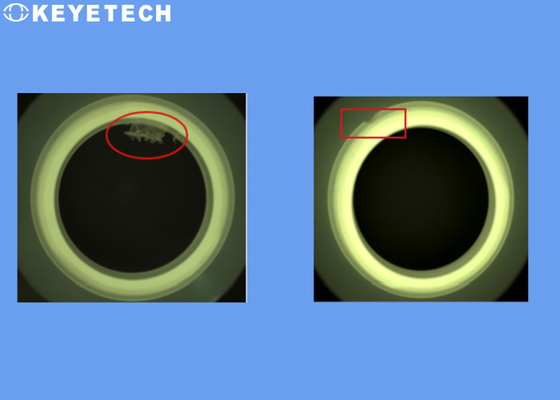

Bottle mouth

Black spots, stains (different colors) ≧0.2mm 99%



















120 pcs/min

Lack of material on cup mouth,overlap≧0.5mm 99%



1 set



Outer bottom part of the bottle

Black spots, stains (different colors) ≧0.2mm 99%

Penetrating hole (no adhesion in the hole)≧0.5mm

99%





1 set





Inner bottom part of the bottle

Black spots, stains (different colors) ≧0.2mm 99%

Obviously uneven thickness
(The difference in gray value of local color difference is greater than 40 or more)

99%
Injection point offset≧±0.5mm 99%

Bottle inner
bottom accumulation of material≧0.5mm

99%






4 set point light source





Bottle mouth outer side part

Uneven bottle mouth
Depth≧0.5mm,length≧1.0mm

99%

The bottle mouth and lifting ring are crushed
Depth≧0.5mm, length≧1.0mm

99%

lifting ring dimple, lack of material
Depth≧0.5mm, length≧1.0mm

99%

Dimples in the inner wall of the bottle mouth
Depth≧0.5mm, length≧1.0mm

99%

4set
Integral cavity + point light source


Bottle outer side part

Black spots, stains (different colors) ≧0.2mm 99%
Obviously uneven thickness (including over material on parting line) (The difference in gray value of local color difference is greater than 40 or more) 99%


System composition

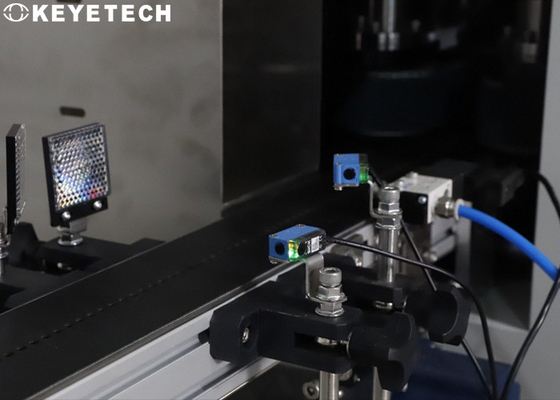

(1) Mechanical part:The mechanical part is the core component of the system, which carries all the transmission devices and electronic hardware (industrial cameras,Light source, industrial computer, touch screen, electrical box, etc.).
The conveyor belt adopts a vacuum adsorption belt to adsorb and fix the sample on the surface of the belt without sliding, so that the picture can be accurately taken.
(2) Hardware part:The hardware part includes camera, lens, light source, high-speed air valve, computer, touch screen and other electrical equipment.



Machining process

 PS Material Visual Inspection System Defect Detection Bottle Sorting Machine 1
