Anhui Keye Information & Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | KEYE |
| Certification: | NO |
| Model Number: | KVIS-B |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free wood |
| Delivery Time: | 4 to 6 weeks |
| Payment Terms: | L/C, T/T |
| Light Source: | LED | Number Of Cameras: | 6 Sets |
|---|---|---|---|
| Key Technology: | AI Inspection | After Sale Service: | On-line Service |
| Operating Environment: | GMP Workshop | Item: | Aoi Equipment Inspection Machine |
| Pixel: | 5 Million | False Rate: | 0.5% |
| High Light: | Pharmaceutical 3d Aoi Inspection Machine,3d Aoi Inspection Machine,Aoi auto visual inspection machine |
||
Detection Principle

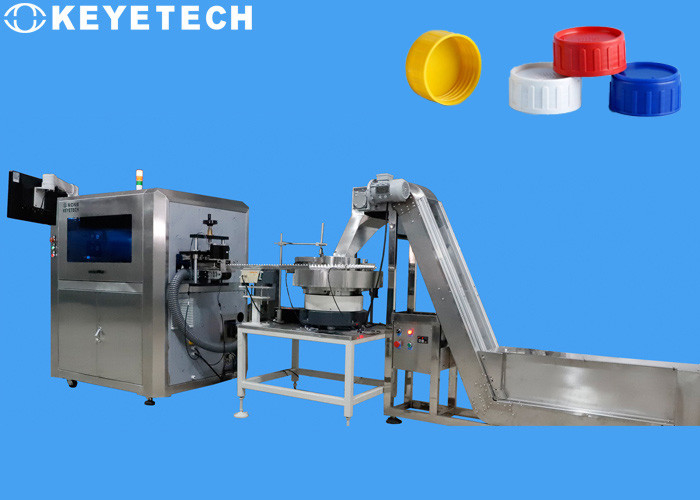

The design plan for our company is equipped with 6 sets of 200W pixel black and white industrial cameras, a cap organize machine to realize a full range of defect detection on the concave, trademark and side of the bottle caps. The normal detection speed is 500 pieces per minute (can be adjusted according to the actual situation); The front part of the detection machine can be equipped with a set of organize conveying equipment to transport the bottle caps into the detection equipment in a regular and orderly manner. The detection equipment is divided into 3 major detection system modules: the first module is to realize the defect detection function in the concave and the side of the caps, then the second use the vacuum adsorption method to adsorb and transport the product to carry out the defect detection on the trademark part, and the unqualified products can be automatically eliminated; finally the counting function can be performed after detecting the finished product, and the counting accuracy is 100%. The equipment can operate for a full day of 7 x 24 hours.
The detection standards are as follows:
| Model | Camera number | Detection range | Detection content and accuracy | Detection precision | Accuracy of detection | Detection speed | Remark |
| KVIS-CC06 | 4sets | Outside (part, area) | Black spots≥0.2mm | 99.8% | 99.5% | 300-500 pcs/min | |
| 0.5mm＜overlap and lack of material≤1mm | 99.8% | ||||||
| 1 set | Concave (part, area) | 0.5m＜lack of material≤1mm | 99.8% | ||||
| Black spots≥0.2mm | 99.8% | ||||||
| 2mm＜Deformed | 99.8% | ||||||
| 1 set | Trademark part | Black spots≥0.2mm | 99.8% |

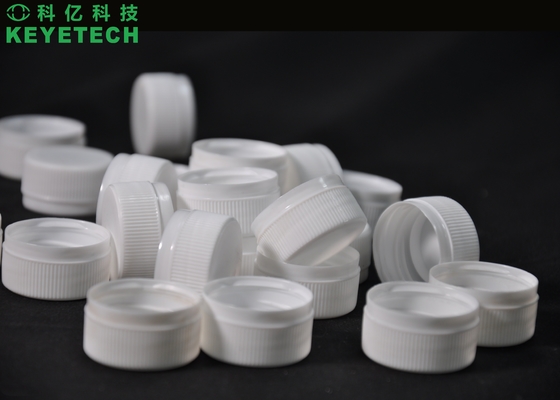

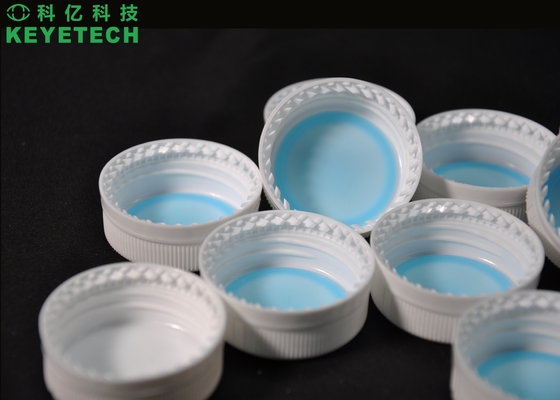

The pictures of the collected samples are as follows (reference pictures):
The large-scale production of pharmaceutical companies is becoming more and more obvious, and the grades are gradually improving. A development trend of modern pharmaceutical companies is that larger pharmaceutical factories are equipped with packaging companies. At present, the packaging quality of most pharmaceutical products is low, and there is still a big gap with developed countries. The quality of packaging materials and the contribution rate of packaging to the pharmaceutical industry is low. In developed countries, pharmaceutical packaging accounts for 30% of the value of medicines, while the proportion in many other countries is less than 10%. Therefore, the pharmaceutical packaging industry occupies an important position in the pharmaceutical industry and is a key part of promoting global pharmaceutical development.
Our Advantages
