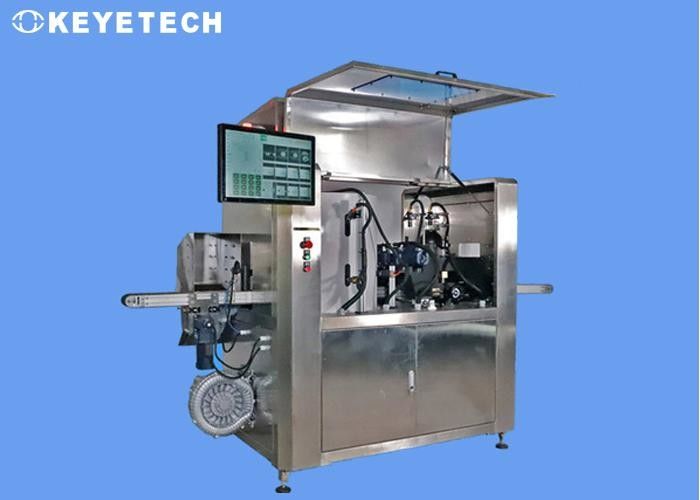

Cost-effective and Small Footprint Compact Cap Vision Inspection Machine

Cost-effective and Small Footprint Compact Cap Vision Inspection Machine
Equipment features:


Inspection Overview
The design scheme uses high-pixel industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for the appearance defects of products. The inspection speed is 200-1000 pcs/min, and the equipment can operate 24 hours a day. Products can be automatically rejected online.

The whole set of vision machines includes mechanical parts, visual electronic hardware and vision system software. The entrance and exit of the inspection machine can be integrated with the customer's on-site conveyor line, and can be connected with upstream and downstream production equipment according to the specific production needs of the customer's site.

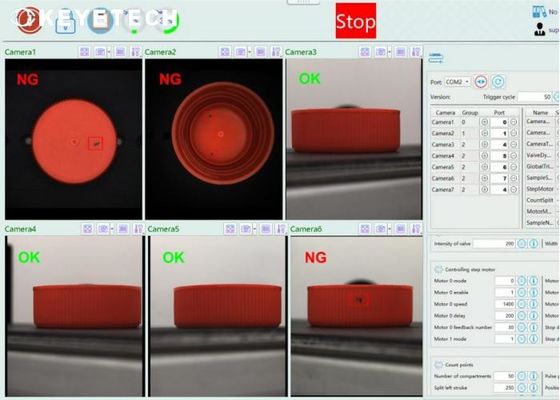

Software Function

• Enabling and disabling the system detection function
• Detection index parameters and accuracy adjustment
• Template sampling and saving, storage and retrieval of sample information
• Camera screen calibration function
• Real time production information display of the system (qualification rate, total output, speed, etc.), browsing of historical production information, export and storage functions
• Manage permissions based on login account (example, disabling parameter adjustment for general operation users)
• Operation and adjustment of the mechanical part of the system (If the transmission device is turned on, adjust the alarm signal)


Operation Parameters


Configuration List


Cooperation Partners
KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.

** Our company have served many well-known enterprises such as Coca-Cola, P&G, Unilever, ALPLA, Shriji Polymer, Berry Global, Aptar, LAMIPAK, TPAC, PACT Group, etc.


Delivery Time
The production cycle of the whole machine is expected to take 60 days. If additional inspection requirements are added or more adjustment needed, the time will be appropriately extended accordingly. After the equipment arrives at the customer's site, our company arranges after-sales personnel to complete installation and adjustment at the customer's site.

After Sales Service

1. The seller should complete the creation and debugging of the product basic algorithm model before the equipment is shipped, also provide remote assistance after the equipment arrives at the customer site; and provide buyer with the factory data and operation manual of equipment.
2. Daily operation and maintenance services: Our company provides free remote operation and maintenance online services. If you need to upgrade inspection algorithm, provide operational assistance, etc.
3. Our company have regular offline training plan every year, so domestic and foreign clients can send their engineers to participate (at their own expense). Those who pass the exam can obtain an industry functional skills certificate.


Others

• The above solutions is strictly based on the customer's existing sample styles and defect types and is confirmed on the basis of our optical testing, algorithm and mechanical evaluation. If there are new products and defect requirements in the future, please be sure to provide us before the production date of the order (the date of receipt of the advance payment) so that the technical team can do second evaluation & confirmation. Once the order is produced, the whole inspection plan will not be modified.
• This plan is a technical reference provided by Anhui Keye Intelligent Technology Co., Ltd to customers for equipment selection, which involves some technical content of Keye Company. Therefore, this plan cannot be forwarded, printed or published to third parties.
