Place of Origin: | China |
Brand Name: | KEYE |
Certification: | NO |
Model Number: | KVIS-B |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free wood |
Delivery Time: | 4 to 6 weeks |
Payment Terms: | L/C, T/T |
Supply Ability: | 1set per 4 weeks |
Weight: | 400kg | Light Source: | LED |
---|---|---|---|
Warranty: | ONE YEAR | Function: | Separate Bad Out From Good Sorting |
Accuracy: | 99.98% | Key Technology: | AI Inspection |
Selling Points: | High Precision | Use: | Quality Control |
High Light: | 125ml Visual Inspection System,105ml Visual Inspection System,KEYE quality inspection machine |
Detection Principle

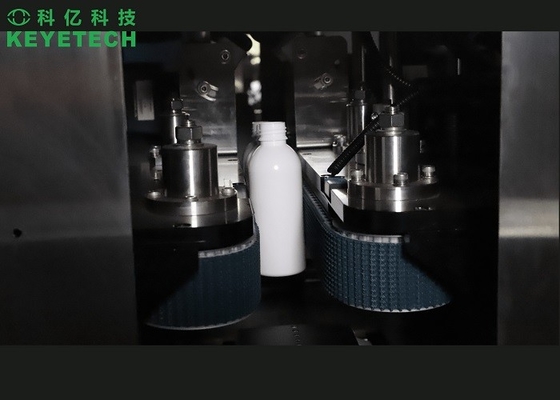

Due to the need to check the bottle body's depression and deformation (which may affect the subsequent labeling) and the bottle body wall thinness, a backlight imaging system needs to be added to the bottle body stain detection to highlight the wall thinness problem and bottle body depression through the backlight. In addition, in order to minimize the imaging dead angle of the depression detection, the bottle body needs to be rotated 45 degrees on the bottle clamping belt (achieved by the speed difference of the two belts), so the system is finally composed of the following parts:
(The camera for bottle lip and bottle base inspection is not on the image)

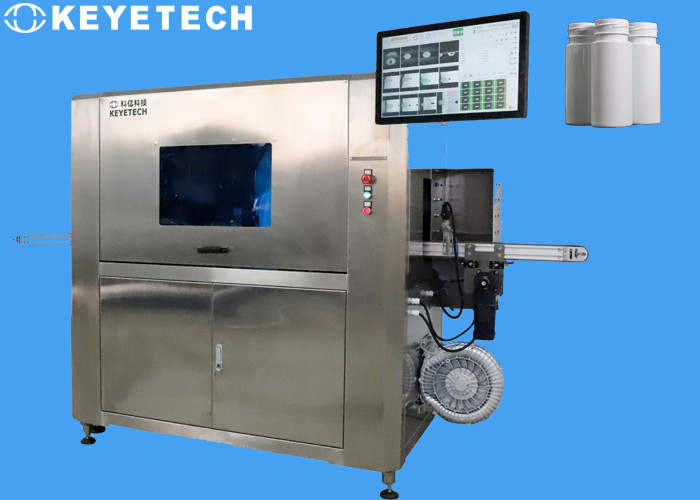

Equipment Overviews
Model |
Number of cameras |
Inspection scope |
Inspection content |
Detection precision |
Accuracy |
Capacity |
KVIS-SC10
|
1set |
Bottle lips |
Black spot, stain, impurity (different color) |
≥0.2mm | 99.5% | 120/min |
Lash, Injection Incomplete |
≥1.0mm | 99.5% | ||||
4 set |
Upper area of bottle body (include outside of bottle lip) |
Black spot, Stain, Impurity (different color) |
≥0.2mm | 99.5% | ||
Bubble | ≥1.0mm | 99.5% | ||||
4set |
Lower area of bottle body |
Black spot, stain, impurity(different color) |
≥0.2mm | 99.5% | ||
Bubble | ≥1.0mm | 99.5% | ||||
1set |
Outside of bottle base |

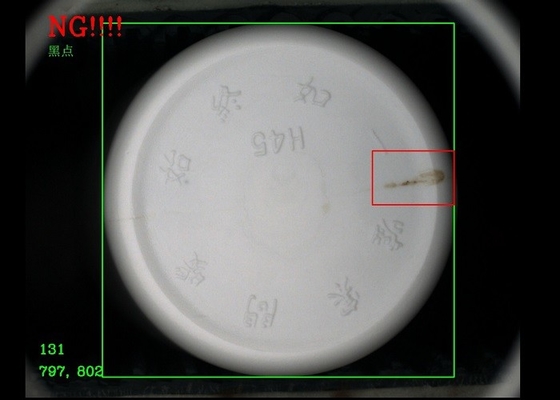

Black spot, Stain, Impurity (different color) |
≥0.2mm | 99.5% | ||
Injection point offset |
≥1.5mm | 99.5% | ||||
Hole(through holes, no adhesion in the hole) |
≥1.0mm | 99.5% |
Machining Process
