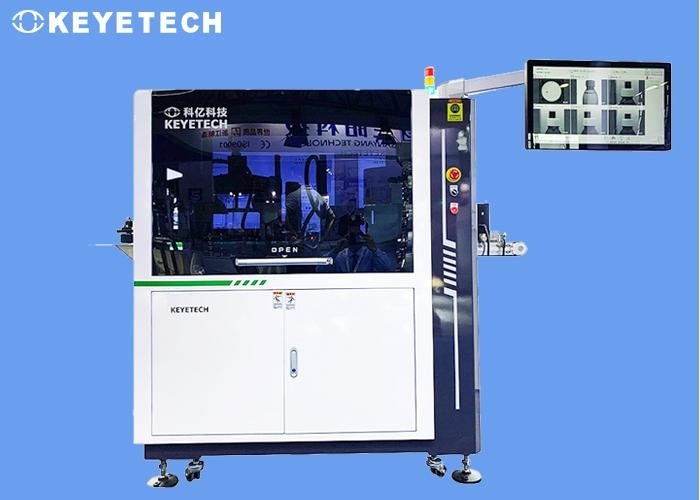

Empty Drop Bottle Inspector Machine with HMI Touch Screen Display

Offline Empty Drop Bottle Inspector Machine with HMI Touch Screen Display

Inspection Principle

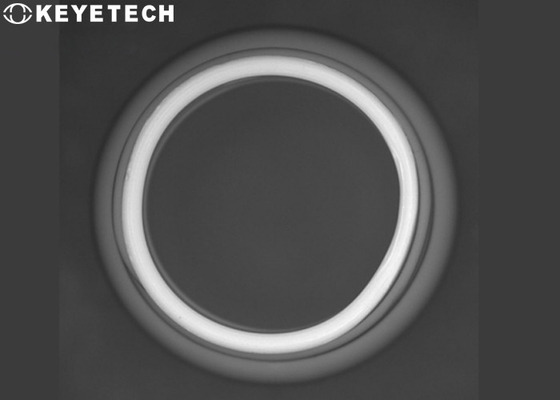

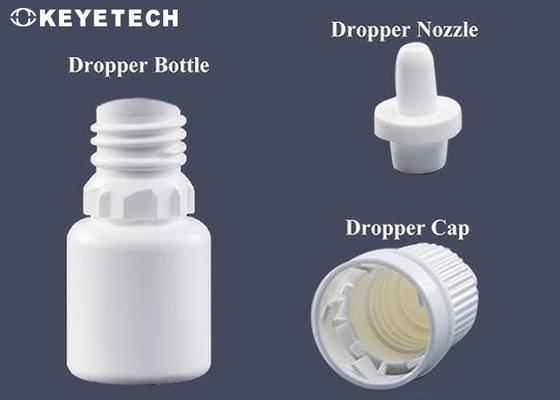

According to the requirements by customers, We has drawn up a 50-70ml white pharma container testing program through experiments and simulation analysis. The main principle is based on high-speed and high-precision visual imaging, coupled with special lighting methods, to visualize and visualize sample defects. Digitization, through the development of real-time detection algorithms to mark the size and location of defects, and comprehensive online defect detection on the appearance of the bottle. The normal detection speed is 3600-4200 bottles per hour. The entrance and exit of the equipment can be integrated with the on-site conveyor line. , The detection of unqualified products realizes online automatic rejection, and the counting function is realized after finished product detection, and the counting accuracy rate is 100%.

Equipment Overview

We adopt 8 sets of high pixel industrial cameras and high-performance LED strobe light sources to conduct comprehensive defect inspection on the appearance of products. The entire set of detection equipment includes a sample material handling system, mechanical transmission part, optical imaging system, visual electronic hardware, and detection system software. The entire equipment can be independently placed on the customer's site, The maximum detection speed can reach 150pcs/min, the unqualified products can be automatically rejected online and good product can be counted and packed if needed.

Company Profile

Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in visual inspection industry. As a leading manufacturer&Designer, It can provide the most advanced level AI visual inspection equipment and the customized AI system solutions of visual imaging, computing power, algorithm, and automatic control software for various sub-industries. The company was established in 2011, it has a high-level R&D team from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.

Keye AI visual inspection overall solution adopts the world's top AI algorithm, equipped with visual analysis software and lighting, imaging and acquisition processing modules, which has the advantages of small sample size, strong generalization ability and rapid deployment. At present, the products are used in many industries such as food, alcoholic beverages, dairy products, pharmaceuticals, cosmetics, and daily chemicals.

Software Function

Ø Enabling and disabling the system detection function

Ø Detection index parameters and accuracy adjustment

Ø Template sampling and saving, storage and retrieval of sample information

Ø Camera screen calibration function

Ø Real time production information display of the system (qualification rate, total output, speed, etc.), browsing of historical production information, export and storage functions

Ø Manage permissions based on login account (example, disabling parameter adjustment for general operation users)

Ø Operation and adjustment of the mechanical part of the system (If the transmission device is turned on, adjust the alarm signal)

Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.

** Our company have served many well-known enterprises such as Coca-Cola, P&G,Unilever,ALPLA,C'estbon, Nongfu Spring, etc., and has won praise from many users.
