Place of Origin: | China |
Brand Name: | KEYE |
Certification: | NO |
Model Number: | KVIS-B |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free wood |
Delivery Time: | 4 to 6 weeks |
Payment Terms: | L/C, T/T |

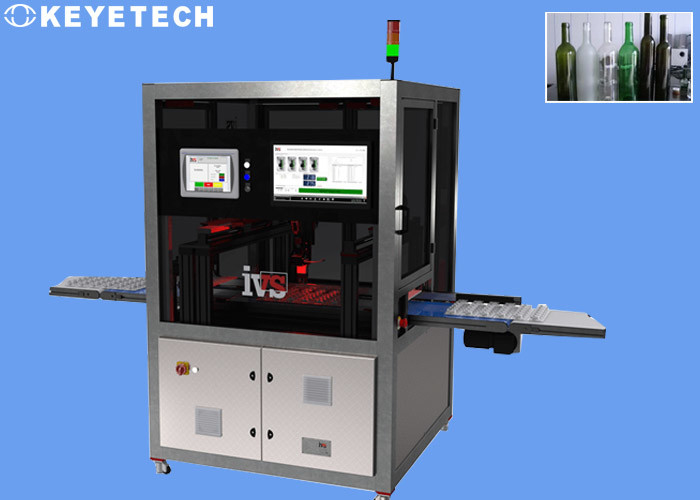

Applications: | Glass Bottle & Cap Packaging Inspection Equipment | WEIGHT: | 500kg |
---|---|---|---|
COLOR: | GRAY | WARRANTY: | ONE YEAR |
OPERATING ENVIRONMENT: | GMP WORKSHOP | BOTTLE HIGHT: | 5mm~50mm |
BOTTLE DIAMETER: | 5mm~60mm | STRUCTURE : | STAINLESS STEEL 304 |
ODM/OEM: | AVAILABLE | Packing: | Plywood Carton |
High Light: | Glass Bottle Packaging Inspection Equipment,Ebi Packaging Inspection Equipment,glass bottle inspection machine |
Product configuration details
Name | Unit | Quantity |
Smart camera | pcs | 1 |
camera lens | pcs | 1 |
Stroboscopic flash source | pcs | 1 |
Laser beamer | Pair | 2 |
High-speed ejector | pcs | 1 |
Industrial Power | pcs | 4 |
Circuit trigger board | pcs | 2 |
HD touch screen | pcs | 1 |
Pneumatic Components | pcs | 1 |
Warning light | pcs | 1 |
Terminal/Relay | pcs | 1 |
Strong and weak wires | pcs | Several |
Design concept:

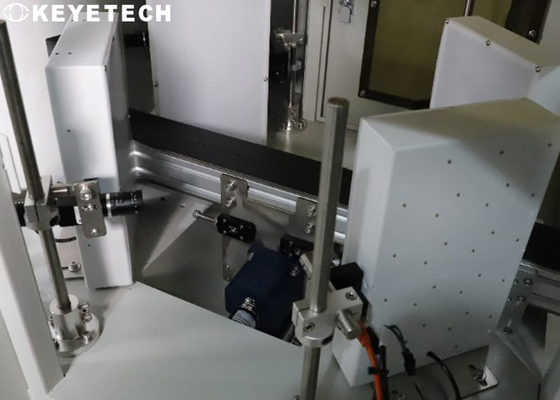

The fully automatic identification detection system designed by our company uses high-speed smart cameras, high-definition lenses and stroboscopic light sources to perform online collection and monitoring of the detected products after coding. The camera transmits the collected image information of the detected products to the control system, and the system calculates the picture information fed back by the camera through the internal software system to determine whether there are missing sprays, wrong sprays, and digital incompleteness on the side of the rum bottle cap and the production date on the label.
This project uses a color high-magnification camera, which can be moved up and down to meet the detection needs of the side of the bottle cap and on the label. The equipment adopts a highly integrated detection and calculation module, which has the characteristics of compact space, convenient installation and deployment, accurate and fast detection, simple operation, and easy to use. It can be freely matched and installed at any position in the assembly line to ensure product quality.
System functions
-Enabling and disabling the system detection function
-Inspection index parameters, precision adjustment.
-Template sampling and storage, sample detection information storage and recall.
-Camera screen calibration function
-System real-time production information (qualified rate, total output, speed, etc.) display, historical production information browsing, export and storage functions.
-Perform authority management according to the login account (for example, the general operation user disables parameter adjustment authority)
-Operation and adjustment of the mechanical part of the system (such as: air valve jet time adjustment, camera trigger time adjustment)
-Additional functions required by Party A
Note: The actual configuration can be applied according to customer requirements or designated brands.
Product test picture:
The picture below shows a normal product picture.
