Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System

Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System

Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System
Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System
Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 6 to 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 8 weeks
Contact Now
Detailed Product Description
Name: Plastic Parts Cap Inner Plug Vision Inspection And Quality Control System Place Of Origin: Anhui,China
Weight: 500 Kg Warranty: 1 Year
Condition: New Technic Scheme: Provided
Applications: Plastic Accessories After-sale: Remote Service
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card

Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System

Item Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System Main Material Stainless steel
Weight 500kg Size 4250*1650*1860mm
Software Algorithm Deep Learning Voltage Ac220/50Hz
Current 4kw Air Pressure 0.5-0.8Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method High-Speed Industrial Camera Number Of Camera 8



Company Profile

Anhui Keye Information Technology Co., Ltd. (hereinafter referred to as Key Technology) was established in 2011. It is a national high-tech enterprise focusing on applying AI technology to the industrial field. Provide visual imaging, algorithm computing power and automatic control AI system solutions for various sub-industries.

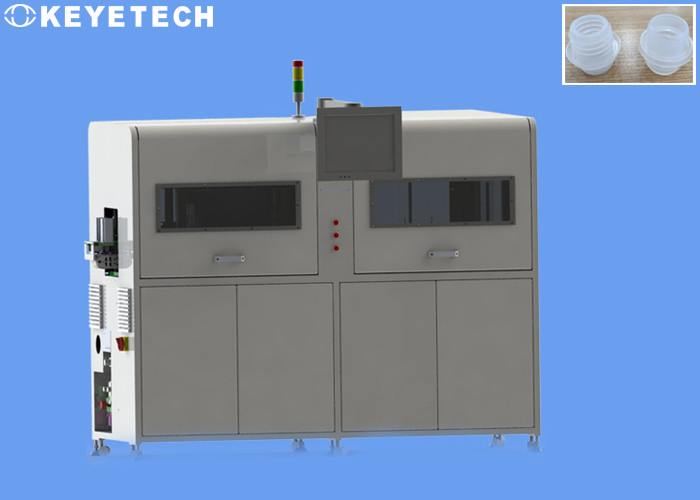

Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System 0

Keye AI visual inspection overall solution adopts the world's top AI algorithm, equipped with visual analysis software and lighting, imaging and acquisition processing modules, which has the advantages of small sample size, strong generalization ability and rapid deployment. At present, the products are used in many industries such as food, alcoholic beverages, dairy products, pharmaceuticals, cosmetics, and daily chemicals.



Inspection details

The equipment is a plastic cap visual inspection machine, which integrates the conveying mechanism, visual system hardware and inspection software, defective product rejection device, bottle cap inner plug inspection equipment, and each equipment is equipped with 8 sets of industrial camera systems.

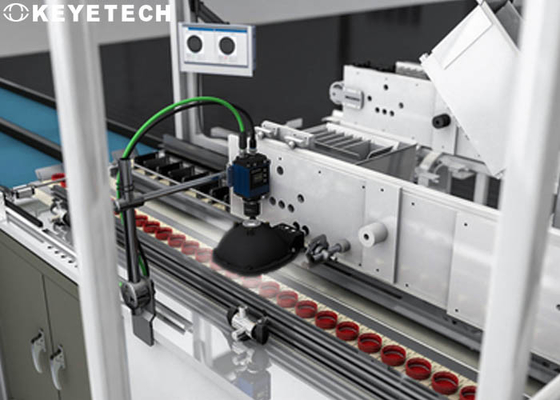

Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System 1

A full range of defect detection is carried out on the overall appearance of the product. The detection speed is about 250 pieces per minute. The whole set of equipment integrates the conveying mechanism, vision system hardware and detection software, and the unqualified products can be automatically eliminated. box function.



Inspection standards

Item Camera Position Inspect Precision Accuracy Speed
KVIS 1 outer ring black sopt,dirt,size,deformation >0.5mm 99% 250pcs/min
1 inner side
1 bigger ring mouth
1 small ring mouth
4 outer side



Equipment features:

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3.Multi-orientation: 360 ° comprehensive inside and outside the samples
4.High precision: detection accuracy can be high
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6.Easy to operate: It is easy to operate and easy to maintain
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.



** Our company have served many well-known enterprises such as Coca-Cola, P&G,Unilever,ALPLA,C'estbon, Nongfu Spring, etc., and has won praise from many users.

Plastic Parts Cap Inner Plug Vision Inspection and Quality Control System 2
