Printing Defects Detector for Liquor Box Packaging with Real-time Production System

Printing Defects Detector for Liquor Box Packaging with Real-time Production System

  • Printing Defects Detector for Liquor Box Packaging with Real-time Production System
  • Printing Defects Detector for Liquor Box Packaging with Real-time Production System
Printing Defects Detector for Liquor Box Packaging with Real-time Production System
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 6 to 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Printing Defects Detector For Liquor Box Packaging With Real-time Production System Place Of Origin: Anhui,China
Weight: 500 Kg Warranty: 1 Year
Condition: New Technic Scheme: Provided
Applications: Printing Inspection After-sale: Remote Service
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card

Printing Defects Detector for Liquor Box Packaging with Real-time Production System

Item Printing Defects Detector for Liquor Box Packaging with Real-time Production System Main Material Stainless steel
Software Algorithm Deep Learning Voltage Ac220/50Hz
Current 4kw Air Pressure 0.5-0.8Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method High-Speed Industrial Camera Number Of Camera Depending on the specific situation



Inspection Principle

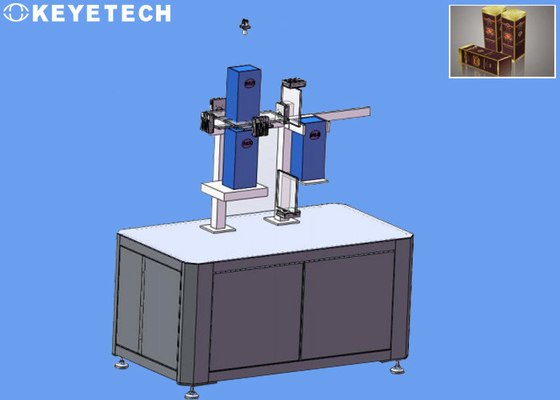

By directly connecting with the product conveying line, the product is stably and orderly grabbed to a specific station by installing a robot, and then the high-pixel sample image captured by the industrial camera is transmitted to the image processing software for comparison and analysis with the standardized model.

Printing Defects Detector for Liquor Box Packaging with Real-time Production System 0

Then judge the good and bad products, and control the corresponding pneumatic components to remove the bad products, and finally collect the qualified products, which greatly improves the detection efficiency. The software will open the sample comparison standard, and the test personnel at the customer site can control the comparison accuracy and choose the most
Accuracy standards suitable for their own production conditions, so as to control the defective rate.



Inspection details

The testing equipment scheme uses 7 sets of high-resolution industrial cameras and high-performance strobe light sources, which are divided into 2 stations, and the first station has 2 high-resolution industrial cameras to conduct comprehensive inspections on the appearance defects of the bottom and top of the wine box. For visual inspection, the second station uses 5 high-resolution industrial cameras to detect the appearance defects on the top and side of the wine box, and the speed is about 5 pieces per minute.

Printing Defects Detector for Liquor Box Packaging with Real-time Production System 1

Wine box and wine box standard sample check, mainly to detect whether there are errors in text, pattern, trademark, bar code, two-dimensional code, number, punctuation mark, storage and transportation mark.The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software, which can be deployed independently at the customer's site for use, and can be connected to the production equipment of the upper and lower processes according to the specific production needs of the customer.



Equipment features:

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3.Multi-orientation: 360 ° comprehensive inside and outside the samples
4.High precision: detection accuracy can be high
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6.Easy to operate: It is easy to operate and easy to maintain
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.



After-sale service:

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

Printing Defects Detector for Liquor Box Packaging with Real-time Production System 2
