Robust Vision Inspection System Detecting Capacitor Defects Of Film

Robust Vision Inspection System Detecting Capacitor Defects Of Film

  • Robust Vision Inspection System Detecting Capacitor Defects Of Film
  • Robust Vision Inspection System Detecting Capacitor Defects Of Film
  • Robust Vision Inspection System Detecting Capacitor Defects Of Film
  • Robust Vision Inspection System Detecting Capacitor Defects Of Film
Robust Vision Inspection System Detecting Capacitor Defects Of Film
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: No
Model Number: Kvis-Sc02(A-21)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1set per 8 weeks
Contact Now
Detailed Product Description
Warranty: 1 Year Model.No: Kvis-Sc02(A-20)
Accuracy: 0.15mm Size: 2200x800x1500mm
Voltage: Adapt To National Standards Use: A Robust Vision Inspection System
Power: 2.5Kw Speed: 600/min
Advantage: Full-auto Quality: High Grade
High Light:

Capacitor Defects Vision Inspection System

,

600/min Vision Inspection System

A Robust Vision Inspection System , Detecting Capacitor Defects of Film



Detection Principle



(1)KEYE TECH has developed a capacitance detector with a double valve rejection device for the first time in the industry. The rejection system composed of double air valves can complete the rejection command more perfectly, greatly reduce the false and missed detection rate during the capacitor external inspection process, and further satisfy the customers' pursuit of product quality.



(2)Transmitted the shooting high-pixel sample image to image processing software by industrial camera, detecting and

determining a good product and defective product via AI manually intelligent algorithm.



(3)AI artificial intelligence algorithm to determine the pros and cons of products, to achieve automated production lines

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Robust Vision Inspection System Detecting Capacitor Defects Of Film 0



System Structure

Item

A Robust Vision Inspection System

Main Material Stainless steel
Software Algorithm Deep Learning Voltage Ac220/50Hz
Voltage 2.5kw Air Pressure 0.2-0.5Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method High-Speed Industrial Camera Number Of Camera Depending on the specific situation



Robust Vision Inspection System Detecting Capacitor Defects Of Film 1

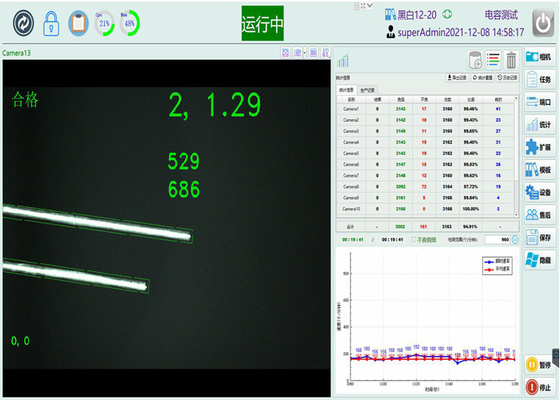

Inspection Software:1)Enabling and disabling the system detection function;2)Adjustment of the parameters and accuracy of detection indicators.Template sampling and storage, sample detection information storage and recall;3)Camera calibration;Display system real-time production information;4)Perform authority management according to the login account;5)Operation and adjustment of the mechanical parts of the system;6)Additional functions added due to customer needs.

Hardware Part:1)Trigger the light source strobe;2)Trigger the camera to take a photo;3)Trigger the solenoid valve to jet off waste products;4)Control the belt speed;5)Emergency treatment for system jams or similar situation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Machine Processing

Robust Vision Inspection System Detecting Capacitor Defects Of Film 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------------------------------------
