Anhui Keye Information & Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | KEYE |
| Certification: | NO |
| Model Number: | KVIS |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free wood |
| Delivery Time: | 4 to 6 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per 6 weeks |
| Name: | CRC Cap Visual Inspection System 360 Degree Inside And Outside Defects Detector | Place Of Origin: | Anhui,China |
|---|---|---|---|
| Weight: | 500 Kg | Warranty: | 1 Year |
| Condition: | New | Technic Scheme: | Provided |

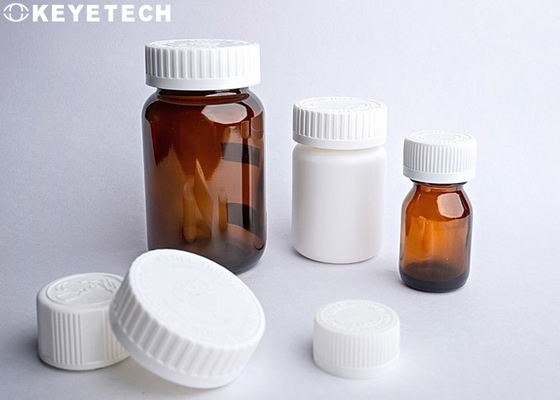

| Applications: | Bottle Caps | After-sale: | Remote Service |
| MOQ: | 1 Set | Payment: | T/T,L/C,Paypal,Credit Card |

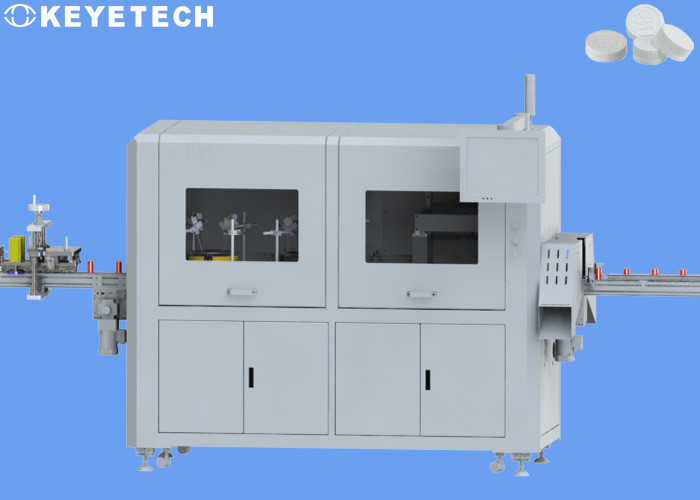

CRC Cap Visual Inspection System 360 Degree Inside and Outside Defects Detector
| Item | CRC Cap Visual Inspection System 360 Degree Inside and Outside Defects Detector | Main Material | Stainless steel |
| Weight | 500kg | Size | 4250*1650*1860mm |
| Software Algorithm | Deep Learning | Voltage | Ac220/50Hz |
| Current | 4kw | Air Pressure | 0.5-0.8Mpa |
| Transfer Method | Lossless Delivery | Detection Status | Online Real-Time Detection |
| Detection Method | High-Speed Industrial Camera | Number Of Camera | Depending on the specific situation |
Inspection standards
| Item | Camera | Position | Inspect | Precision | Accuracy | Speed |
| KVIS | 1 | special area | Black sopt,dirt,size,burr,flash,hole,sealing ring broken,etc. | >0.5mm | 99% | 100p-150pcs/min |
| 1 | top area | >0.5mm | ||||
| 1 | upper area | >0.5mm | ||||
| 4 | bottom area | >0.5mm |
Inspection details
The design scheme uses 6 sets of high-pixel area array industrial cameras and high-performance strobe light sources to conduct comprehensive inspections on the concave surface of the lower cover, the side of the lower cover, the side of the upper cover, and the top surface of the upper cover. The entire set of equipment is designed and tested The speed is 100-150 pieces/minute, and the equipment can operate 7*24 hours a day. Unqualified products are automatically eliminated online, and qualified products are counted and packed.
The whole set of equipment includes mechanical parts, visual electronic hardware and detection system software, which can be independently arranged and used at the customer's site. The front end can be connected to the injection molding machine, and the rear end can be connected to upstream and downstream supporting equipment such as balers.
Equipment features:
| 1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training |
| 2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history |
| 3.Multi-orientation: 360 ° comprehensive inside and outside the samples |
| 4.High precision: detection accuracy can be high |
| 5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs |
| 6.Easy to operate: It is easy to operate and easy to maintain |
| 7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment |
Company profile
KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.
After-sale service:
The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.
