Toothpaste Shoulders Visual Inspection System With Vibrating Disk Unscrambler

Toothpaste Shoulders Visual Inspection System With Vibrating Disk Unscrambler

  • Toothpaste Shoulders Visual Inspection System With Vibrating Disk Unscrambler
  • Toothpaste Shoulders Visual Inspection System With Vibrating Disk Unscrambler
Toothpaste Shoulders Visual Inspection System With Vibrating Disk Unscrambler
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Toothpaste Shoulders Visual Inspection System With Vibrating Disk Unscrambler Place Of Origin: Anhui,China
Weight: 500 Kg Warranty: 1 Year
Condition: New Technic Scheme: Provided
Applications: FMCG Packaing After-sale: Remote Service
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card
High Light:

Toothpaste Shoulders Visual Inspection Machine

,

Toothpaste Shoulders Visual Inspection System

,

Visual Inspection System With Vibrating Disk

Toothpaste Shoulders Visual Inspection System with Vibrating Disk Unscrambler

Item Toothpaste Shoulders Visual Inspection System with Vibrating Disk Unscrambler Main Material Stainless steel
Weight 500kg Size 4250*1650*1860mm
Software Algorithm Deep Learning Voltage Ac220/50Hz
Current 4kw-5kw Air Pressure 0.5-0.8Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method High-Speed Industrial Camera Number Of Camera Depending on the specific situation



Equipment features:

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3.Multi-orientation: 360 ° comprehensive inside and outside the samples
4.High precision: detection accuracy can be high
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6.Easy to operate: It is easy to operate and easy to maintain
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



Inspection details

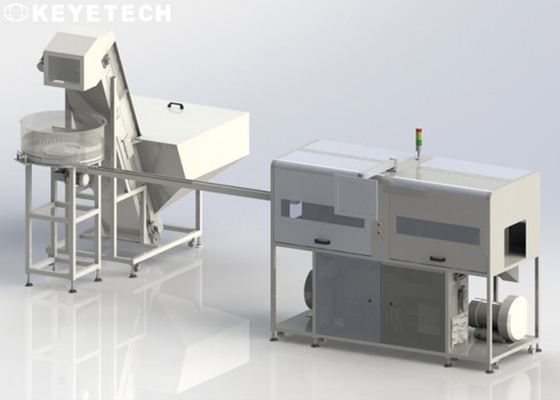

The equipment is composed of two parts: material sorting part and detection part. When working, the pipe shoulder first enters the silo, and then enters the centrifugal turntable through the lifting of the hoist. The tube shoulder is then conveyed to the conveyor belt by centrifugal principle and enters the inspection section.

Toothpaste Shoulders Visual Inspection System With Vibrating Disk Unscrambler 0

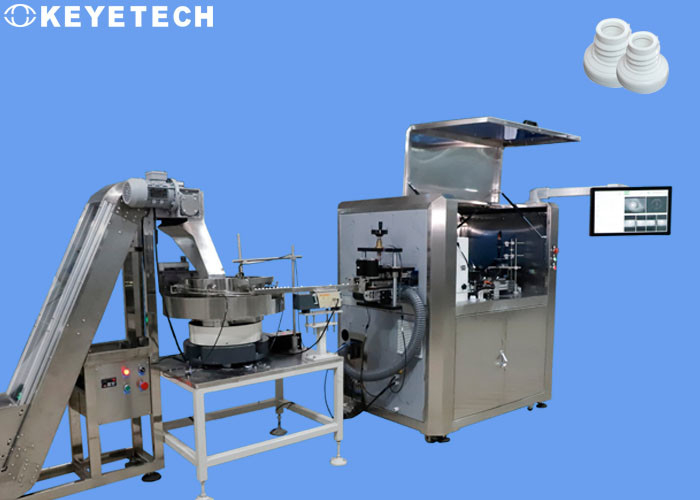

The detection part uses four high-speed industrial cameras to take pictures of the samples, and then compares the images with the standard samples to detect the lack of material in the pipe shoulder. The overall equipment is made of stainless steel, which has the characteristics of compact space volume, convenient installation and deployment, accurate and fast detection, simple operation and easy use.



Application of cameras

Our design scheme adopts 3-6 sets of high-pixel industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for the appearance defects of dinner plate products. The inspection speed is 300-600 pieces/minute, and the equipment can realize 7*24 hours all-weather Running, unqualified products can be automatically removed online.

Toothpaste Shoulders Visual Inspection System With Vibrating Disk Unscrambler 1

The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software. The entrance and exit of the testing machine can be integrated with the automation mechanism (see the design drawings for details of the connection method), and can be connected with upstream and downstream production according to the specific production needs of the customer's site equipment.



Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.
