Place of Origin: | China |
Brand Name: | KEYE |
Certification: | NO |
Model Number: | KVIS |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free wood |
Delivery Time: | 4 to 6 weeks |
Payment Terms: | L/C, T/T |
Supply Ability: | 1 set per 6 weeks |
Name: | On-line Detector Equipment For Tablet Bottle Inspection & Rejection | Place Of Origin: | Anhui,China |
---|---|---|---|
Weight: | 500 Kg | Warranty: | 1 Year |
Condition: | New | Technic Scheme: | Provided |
Applications: | Food Packaging | After-sale: | Remote Service |
MOQ: | 1 Set | Payment: | T/T,L/C,Paypal,Credit Card |
High Light: | PE Food Packaging Inspection Equipment,Ac220 50Hz Inspection Equipment |

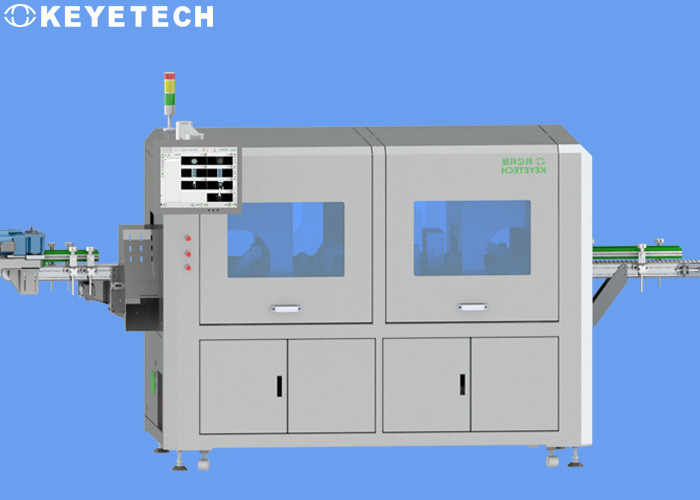

PE Food Packaging Containers Inspection Equipment with Online Camera to Take Pictures
Item | PE Food Packaging Containers Inspection Equipment with Online Camera to Take Pictures | Main Material | Stainless steel |
Weight | 500kg | Size | 4250*1650*1860mm |
Software Algorithm | Deep Learning | Voltage | Ac220/50Hz |
Current | 4kw-5kw | Air Pressure | 0.5-0.8Mpa |
Transfer Method | Lossless Delivery | Detection Status | Online Real-Time Detection |
Detection Method | High-Speed Industrial Camera | Number Of Camera | Depending on the specific situation |
Overviews of inspection
Square bowl is one of the main packages of many fast food brands, and the appearance quality of the package will attract the attention of many consumers. Therefore, when the brand side entrusts the packaging manufacturer to produce, it will gradually increase the requirements for the manufacturer according to market feedback. The detection volume of a large number of products is also gradually increased.
In order to ensure the manufacturer's own production quality and the reputation of cooperation with the brand, it is an inevitable choice for manufacturers to change the traditional manual inspection methods and use high-tech inspection methods. Keye Tech has mature packaging visual inspection experience. At the same time, it can use big data information to match industry-accurate data, check production line problems in a timely manner, improve efficiency and save costs for enterprises.
Inspection details

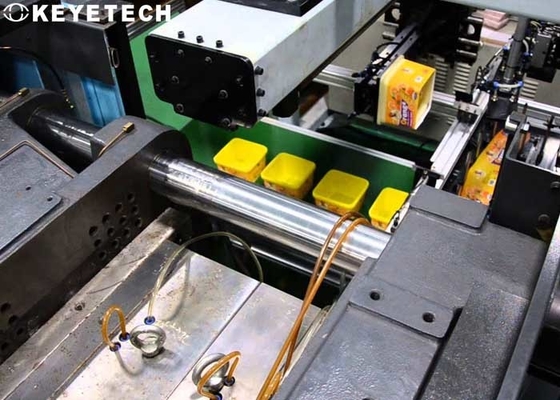

Through the docking conveying device (the product needs to be conveyed out in a straight line with the mouth facing upwards), the square bowl product is stably and orderly transmitted to a specific station, and then the high-pixel sample image captured by the industrial camera is transmitted To the image processing software, the system analyzes and processes to determine good and bad products, and controls the corresponding pneumatic components to eliminate the bad products, and finally collects qualified products.
The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and choose the most suitable accuracy standard for their own production conditions, so as to control the defective rate.
Application of camera
The solution uses 5 sets of high-resolution industrial cameras and high-performance strobe light sources to conduct a full range of visual inspections for the defects inside the square bowl. The inspection speed is 6600-7200 pieces per hour, and the equipment can operate 7*24 hours a day. Unqualified products can be automatically removed online.
The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software. The entrance and exit of the testing machine can be integrated with the on-site conveying line (see the design drawing for specific docking methods), and can be connected upstream and downstream according to the specific production needs of the customer's site. Production equipment.
After-sale service
The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.
After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
