On Line Detector Machine For Bottle Closure Laundry Detergent Spout Cap

On Line Detector Machine For Bottle Closure Laundry Detergent Spout Cap

On Line Detector Machine For Bottle Closure Laundry Detergent Spout Cap
On Line Detector Machine For Bottle Closure Laundry Detergent Spout Cap
On Line Detector Machine For Bottle Closure Laundry Detergent Spout Cap
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: On-line Detector Machine For Bottle Closure Laundry Detergent Spout Cap Place Of Origin: Anhui,China
Weight: 500 Kg Warranty: 1 Year
Condition: New Technic Scheme: Provided
Applications: Bottle Caps After-sale: Remote Service
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card
High Light:

Detergent Spout Cap Detector Machine

,

Laundry Spout Cap Detector Machine

On-line Detector Machine for Bottle Closure Laundry Detergent Spout Cap



Item On-line Detector Machine for Bottle Closure Laundry Detergent Spout Cap Main Material Stainless steel
Weight 500kg Size 4250*1650*1860mm
Software Algorithm Deep Learning Voltage Ac220/50Hz
Current 4kw Air Pressure 0.5-0.8Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method High-Speed Industrial Camera Number Of Camera Depending on the specific situation



Inspection standards

Item Camera Position Inspect Precision Accuracy Speed
KVIS 1 special area Black sopt,dirt,size,burr,flash,hole,label position,sealing ring,etc. >0.5mm 99% 50p-60pcs/min
1 top area >0.5mm
4 upper area >0.5mm
4 bottom area >0.5mm



Inspection principle

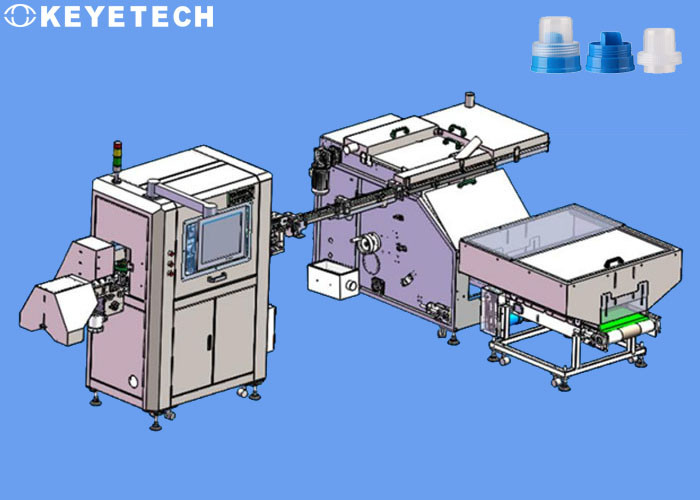

The equipment is composed of a vibrating plate unscrambling machine and a visual inspection machine; the lids are sorted into columns by the "cap unscrambling machine" in a stable and orderly manner, and then enter the "visual inspection machine" inspection station. There are two stations inside the "visual inspection machine" , the camera at the first station is arranged under the upper adsorption conveyor belt, the cover is sucked by the adsorption belt, and the camera takes pictures from bottom to top to collect the concave area of the lower cover.

On Line Detector Machine For Bottle Closure Laundry Detergent Spout Cap 0

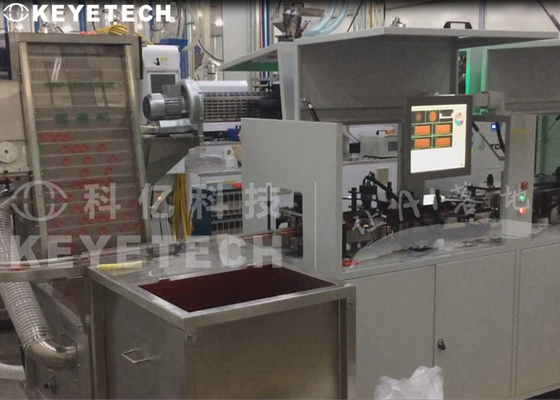

The camera at the second station is arranged above the conveyor belt, with 8 cameras (2 layers*4 cameras) and 1 camera on the top to take pictures of the top surface of the cover, the side of the upper cover, and the side of the lower cover. The camera transmits the captured image to the processing software, compares and analyzes it with the standardized sample to determine good products and defective products, and controls the corresponding pneumatic components to eliminate the defective products, and finally collects qualified products.



Inspection details

The design scheme uses 10 sets of high-pixel area array industrial cameras and high-performance strobe light sources to conduct comprehensive inspections on the concave surface of the lower cover, the side of the lower cover, the side of the upper cover, and the top surface of the upper cover. The entire set of equipment is designed and tested The speed is 60 pieces/minute, and the equipment can operate 7*24 hours a day. Unqualified products are automatically eliminated online, and qualified products are counted and packed.

On Line Detector Machine For Bottle Closure Laundry Detergent Spout Cap 1

On Line Detector Machine For Bottle Closure Laundry Detergent Spout Cap 2



Equipment features:

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3.Multi-orientation: 360 ° comprehensive inside and outside the samples
4.High precision: detection accuracy can be high
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6.Easy to operate: It is easy to operate and easy to maintain
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.
