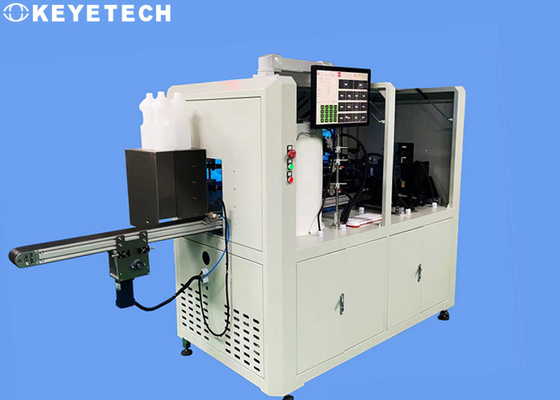

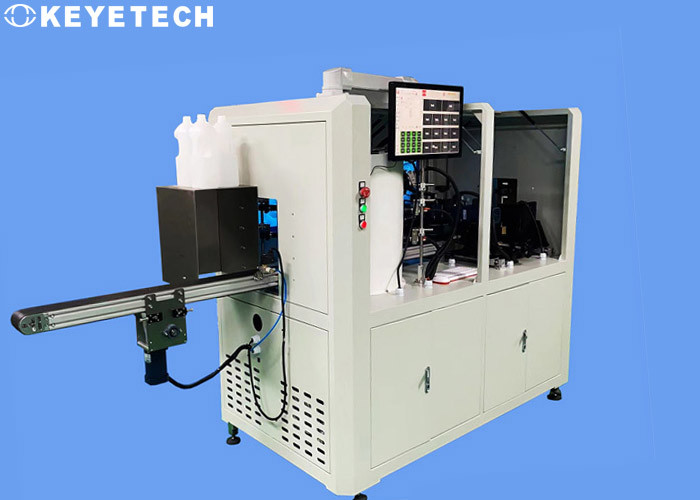

Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens

Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens

Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens
Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens
Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Pesticide Bottle Caps Ai Visual Inspection System WEIGHT: 500kg
Brand: KEYE Material: SS 304
Key Tech: AI Algorithm Show Room: None
Voltage: Adapt To Natioal Standards After-sale: Remote Service
OEM: Yes Loading Port: Shanghai
High Light:

Bottle Caps Ai Visual Inspection System

,

Pesticide Bottle Caps Visual Inspection System

,

Pesticide Bottle Cap Inspection System

Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens



System operating parameters
Dimensions

See the design drawings

for details

Power and frequency 220V 20A 50HZ
Total power 3kw ~ 4kw Air pressure 0.5~0.8MPa Purify and oil-free
Working temperature -20℃ ~ 60℃ Working humidity Below 50% relative humidity



Inspection standards

Item Camera Position Inspect Accuracy Speed
KVIS 2 concave flash,burr,deformation,gasket 99% 150pcs/min
1



Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.



Inspection principle

The pesticide cover detection equipment is equipped with 2 sets of high-resolution industrial cameras and 1 set of double-pad sensors to conduct a comprehensive inspection of the geometric dimensions of the key points of the concave surface of the pesticide cover and appearance defects.

The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software.

Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens 0

Black spots, cracks and other defect features (heterochromatic), the gray value contrast difference corresponding to the detection index must be greater than 30 (it can be understood as: put the sample at a distance of about 30cm, and the defect features that can be seen by visual inspection ), which can be effectively detected. If the sample has transparent oil stains or light-colored black spots, and the gray value contrast difference is low (less than 30), the detection effect cannot be achieved.



Application of camera

In actual use, the anti-counterfeiting teeth need to face the camera to ensure the detection accuracy;
In the actual inspection, due to the influence of the critical fluctuation state of some inspection item data, it will lead to a certain probability of false detection of the product, which can be adjusted through the parameter setting of the system software to achieve the actual effect.

Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens 1

Due to the complexity of the structural features of different products, in practical applications, there will be a certain detection blind spot in the structural overlapping area of the plane lens imaging, and the image cannot be collected within this blind spot, so it cannot be effectively detected.



Delivery period
The delivery time of the testing equipment is expected to take 6-8 weeks, if the testing requirements are increased, the period will be extended appropriately. After the equipment arrives at the customer's site, our company arranges after-sales personnel to complete the installation and commissioning at the customer's site.



After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

Pesticide Bottle Caps Ai Visual Inspection System With Plane Lens 2

After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
