Panel Surface Quality Checking Machine With Full Automatic Inspection System

Panel Surface Quality Checking Machine With Full Automatic Inspection System

  • Panel Surface Quality Checking Machine With Full Automatic Inspection System
  • Panel Surface Quality Checking Machine With Full Automatic Inspection System
Panel Surface Quality Checking Machine With Full Automatic Inspection System
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: No
Model Number: KVIS-Sc
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Application: Panel Surface Quality Checking Machine Model.No: KVIS
Brand: KEYE Weight: 300-500kg
After-sale: Remote Service Material: SS 304
Voltage: Adapt To Natioal Standards Feature: Easy To Operate
OEM: Yes Loading Port: Shanghai
High Light:

Panel Surface Quality Automatic Inspection System

,

SS 304 Automatic Inspection System

Panel Surface Quality Checking Machine With Full Automatic Inspection System



Technical standards:

Inspection Surface defects of the panel
Size Length 1m ~ 3.2m, width 0.6m ~ 1.5m, thickness 0.3mm ~ 101mm
Precision Pit/missing meat: 0.1mm×0.1mm, accuracy ≥80%;Peeling: 0.01mm×0.1mm, accuracy ≥80%;Crack: 0.01mm×0.1mm, accuracy ≥80%;
Others Locate the position of the defect (±1mm), calculate the length and width value of the defect;
Inspection method Off-line automatic detection;
Feeder Automatic or manual, semi-manual;
Remark Mark the defect area of the plate (the marking method can distinguish more than 3 categories, and the color is obvious without corrosion and easy to erase).
Display The defect type and size were directly marked on the image.
OA function Defect data (location, size, type, etc.) is archived and can be retrieved. It should have OA functions such as report query, data analysis and data storage, and the software interface is beautiful and generous, in line with the characteristics of industrial testing.



System Overview
The surface quality of the sheet is one of the important indicators of product quality, and it is also an expression of many product defects. The necessity and importance of its detection are self-evident. Surface defects have many manifestations and complex sources. Detection and identification technology is the key technology for surface defect detection. Its manifestations include three types of defects, line defects and surface defects, such as pitting (pits), peeling, cracks, inclusions, lack of meat, pressing objects, oxidation, acid stains, water stains, stains, scratches, waves, etc. species; it comes from raw materials, production process, transportation and storage.


This system can detect the surface defects of the plate, and mark the over-limit area and defect area on the plate. It is a successful application of vision technology in the field of metal and non-metal plate inspection.



Inspection principle
The KEYE TECH machine vision inspection method is to select a single or multiple industrial line camera scanning method to obtain images, and perform fast algorithm processing on the images to accurately detect defects and identify and classify them, while achieving accurate length and width measurement (visual image method). ), and finally displayed in a suitable way.

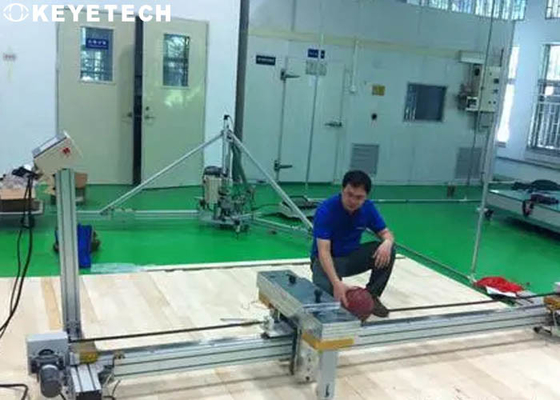

Panel Surface Quality Checking Machine With Full Automatic Inspection System 0


System Components
The detection system is composed of a detection line for plate loading and unloading and motion control, an image acquisition system, a data processing system and an operating console. The image acquisition system consists of a camera (including a lens), a light source, a mounting bracket, a motion system, and a plate displacement measurement mechanism. The plate displacement measuring mechanism accurately measures the displacement of the plate in real time, providing the basis for the camera to take pictures and image positioning.



Conveyor line and layout

  • The plate inspection system is mainly composed of three functional equipments: the feeding roller table section, the detection section and the disengaging roller table section.
  • The feeding roller section is widely adapted to various incoming materials, and the incoming method can be based on the existing methods adopted by the equipment user;
  • The detection section is mainly composed of frame body, roller table supporting equipment, ranging sensor, linear motor, slider drive assembly, industrial camera, light source components, protective components, etc.;

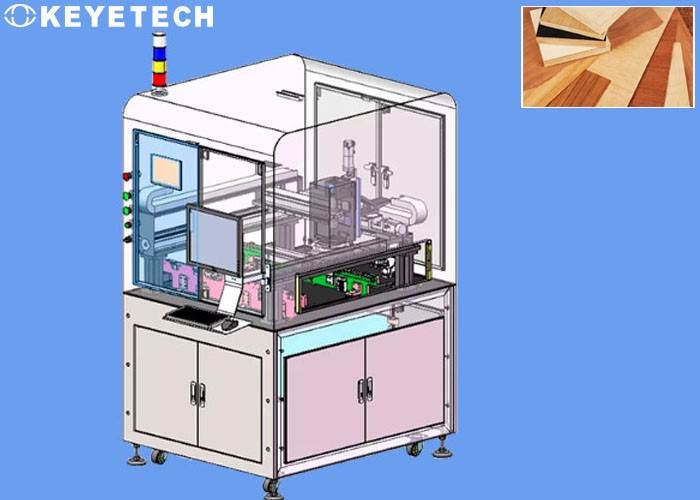

  • The detection section centrally completes the length detection, width detection, thickness detection, and defect detection of the upper and lower surfaces of the titanium plate to be tested (including pits, lack of meat, air bubbles, peeling, cracks, etc.).Panel Surface Quality Checking Machine With Full Automatic Inspection System 1

































Software system
The software system includes subsystems such as interface, system monitoring, detection control, data processing, storage and retrieval. After inputting or selecting the length, width, thickness and other data of the plate to be inspected through the interface, the system automatically calculates and outputs the motion control parameters. After starting the inspection, the system automatically completes the entire inspection process of plate motion control, thickness inspection, image acquisition, and data processing.


The system monitoring part realizes system self-inspection and real-time monitoring of the working status of each equipment. The data processing part includes position calculation of thickness measurement points, image splicing, calculation of length and width (based on the complete image of the spliced sheet), surface defect finding and classification algorithms, etc.
