AI Based Visual Inspection System For Glass Bottles 160 Pcs/Min

AI Based Visual Inspection System For Glass Bottles 160 Pcs/Min

AI Based Visual Inspection System For Glass Bottles 160 Pcs/Min
AI Based Visual Inspection System For Glass Bottles 160 Pcs/Min
AI Based Visual Inspection System For Glass Bottles 160 Pcs/Min
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Place Of Origin: China Condition: New
Name: Empty Bottle Inspection For Glass Selling Points: Automated
Showroom: No Weight: 400kg
Payment: T/T,L/C,Paypal,Credit Card Loading Port: Shanghai
High Light:

Glass Bottles Visual Inspection System

,

AI Based Visual Inspection System

,

160 Pcs/Min Visual Inspection System

AI Based Visual Inspection System For Glass Bottles Good Quality Made In China



Inspection principle

in our daily life. Glass bottled beverages, water cups and other liquid objects. More inclined to make a glass bottle. Glass bottles have many advantages. Qi materials have good barrier properties, good corrosion resistance, and can be recycled many times, which is conducive to reducing packaging costs. But at the same time, the glass bottle also has certain deficiencies, it is more easily damaged and broken. Therefore, in the automatic production line, in order to better ensure the quality of the goods, the glass bottles will be tested in an all-round way.

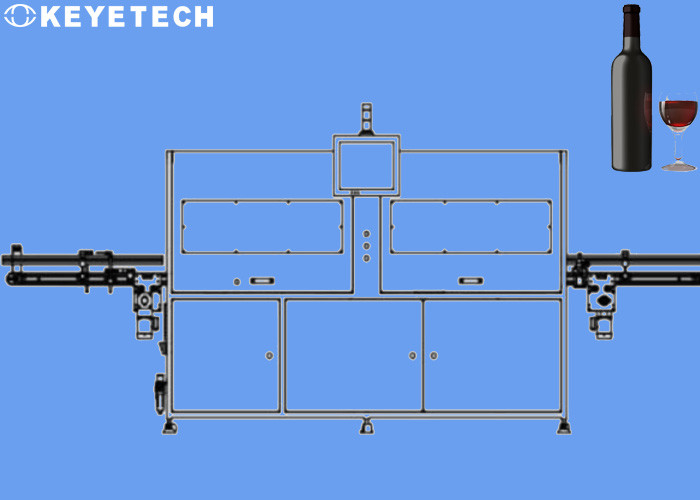

AI Based Visual Inspection System For Glass Bottles 160 Pcs/Min 0

Using visual inspection technology to carry out all-round inspection of each position of the bottle body, it can detect high and short bottles, special-shaped bottles, inverted bottles, half bottles, residual liquid, damage to the upper edge of the bottle mouth, damage to the outer edge of the bottle mouth, damage to the lower edge of the bottle mouth, side All kinds of defects such as wall stains burst, bottle bottom stains and foreign objects, bottle bottom transparent film, bottle bottom damage and other defects are eliminated online.



Inspection details

The key to the glass bottle inspection machine depends on the machine vision technology, which uses the combination of light source, lens, camera and software algorithm to achieve accurate inspection of glass bottles. For different bottle types, an appropriate light source combination must be selected, which will help maximize the visual contrast of defective foreign objects and improve the detection accuracy and accuracy. Then use industrial cameras to collect pictures, and use visual algorithms to process and classify the collected picture data.

  • Shape detection (high and short bottles, broken bottles, special-shaped bottles, different-color bottles, inverted bottles, half-cut bottles)
  • Bottle mouth detection (damage of the sealing surface of the mouth, damage to the mouth plane, damage to the lower edge of the mouth)
  • Bottle body inspection (bottle body stains, cracks, wear)
  • Bottle bottom detection (bottom stains, foreign objects, damage, transparent film foreign objects)
  • Residual liquid (residual water, residual lye)



Detection details

Model Camera number Detection range Detection content Detection accuracy Detection precision Detection speed
KVIS-C -SC11 1set Bottle mouth Black spots, stains, overlap, burrs, lack of material, etc. ≥0.5mm Qualified product 99.5% 160 pcs/min
False detection is less than 0.5%
1set Bottom of the bottle Black spots, stains,foreign material, etc. ≥0.5mm Qualified product 99.5%
False detection is less than 0.5%
4 set Upper area of the bottle Black spots, stains,missing, etc. ≥0.5mm Qualified product 99.5%
False detection is less than 0.5%
4set Lower area of the bottle Black spots, stains, etc. ≥0.5mm Qualified product 99.5%
False detection is less than 0.5%
1set Outer bottom of the bottle Black spots, stains ≥0.5mm Qualified product 99.5%
Hole ≥1mm Qualified product 99.5%




After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

AI Based Visual Inspection System For Glass Bottles 160 Pcs/Min 1

After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
