Flip Top Caps Quality AOI Inspection System With High Precision Imaging

Flip Top Caps Quality AOI Inspection System With High Precision Imaging

Flip Top Caps Quality AOI Inspection System With High Precision Imaging
Flip Top Caps Quality AOI Inspection System With High Precision Imaging
Flip Top Caps Quality AOI Inspection System With High Precision Imaging
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: No
Model Number: KVIS-G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Features: Easy Operate Item: Visual Quality Inspection Machine
Material: SS 304 Quality: High Grade
Structure: Stable Power: Electric
Voltage: Adapt To National Standards Applicable: Bottle Caps
OEM: Yes Payment: T/T,L/C,Paypal
High Light:

Flip Top Caps AOI Inspection System

,

Caps Quality AOI Inspection System

Flip Top Caps Quality AOI Inspection System With High Precision Imaging



Inspection Reasons

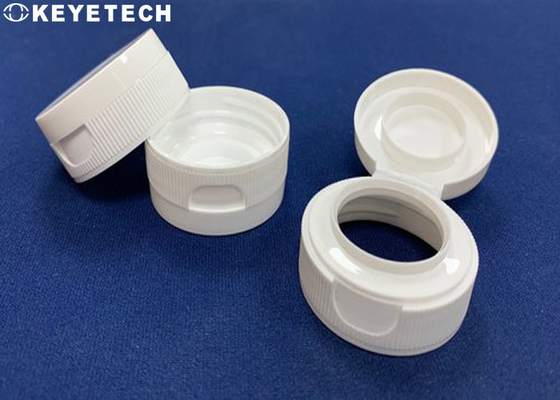

Combination lids can effectively avoid liquid waste. At the same time, packaging is an important part of food safety. Many manufacturers of combination lids have gradually increased their inspection efforts on the appearance quality of combination lids. However, traditional manual inspections cannot achieve good results.



Due to the visual fatigue of human eye detection and the factors that exist in objective judgment, the final inspection effect is not accurate, which greatly affects the production efficiency of the production line. According to the special structure of the combined cover, Keyi Technology has customized a set of testing solutions for the combined cover.



Inspection Principle

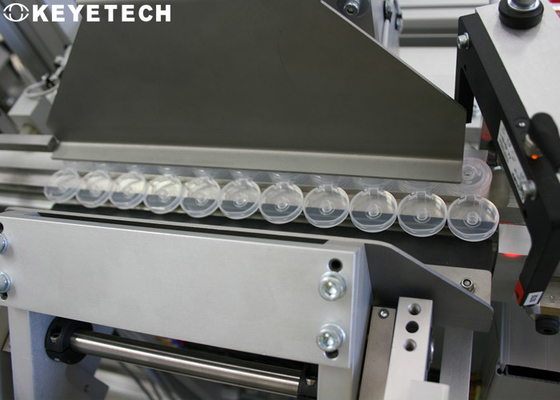

Through the material handling equipment, the product is stably and orderly transferred to a specific station, and then the high-pixel sample image captured by the industrial camera is transferred to the image processing software, and the standard sample is compared and analyzed to determine the good and bad products, and control the corresponding The pneumatic components will remove defective products and finally collect qualified products.

Flip Top Caps Quality AOI Inspection System With High Precision Imaging 0
The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and select the most suitable accuracy standard for their own production conditions, thereby controlling the defect rate.



System configurations

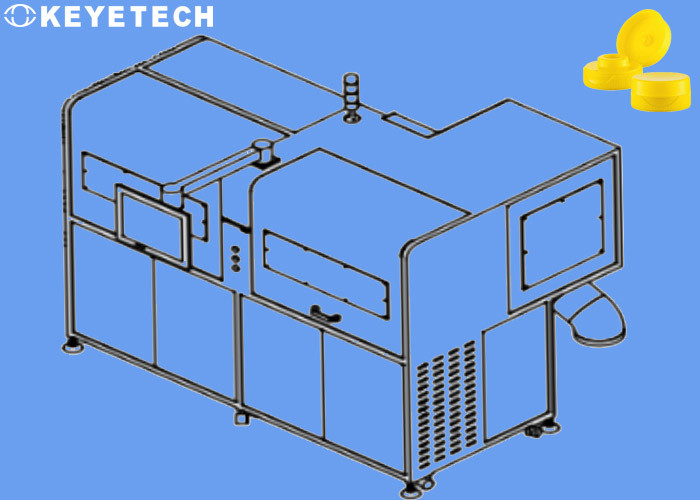

Our design plan uses 10 sets of high-pixel industrial cameras and high-performance stroboscopic light sources to conduct a full range of visual inspections for the appearance defects of smart cover products. The inspection speed is 300/min, and the equipment can operate 7*24 hours a day. , the unqualified products can be automatically rejected online.

Flip Top Caps Quality AOI Inspection System With High Precision Imaging 1

Model Number of camera Inspection scope Inspection content Detection precision Capacity
KVIS-C-SC006 1 set Top area 0.2mm<Black spot 99%

150-200

Pc/min

0.5mm<Rag 99%
0.5mm<Oily dirty (with obviously color difference) 99%
4 sets Visible position of the side of the outer cover and the inner cover 0.2mm<Black spot 99%
0.5mm<Oily dirty (with obviously color difference) 99%
1 set Cover bottom and inside of cover bottom 0.2mm<Black spot 99%
0.5mm<Injection incomplete, flash 99%
0.5mm<Oily dirty (with obviously color difference) 99%

The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software, which can be independently deployed on the customer's site for use, and can be connected to the production equipment of the upper and lower processes according to the specific production needs of customers.



AI algorithm features

  • AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
  • Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
  • Multi-orientation: 360 ° comprehensive inside and outside the samples
  • High precision: detection accuracy can be high
  • Modularization, can flexibly increase or decrease the detection function according to customer actual needs
  • Easy to operate: It is easy to operate and easy to maintain
  • Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



Machining process

Flip Top Caps Quality AOI Inspection System With High Precision Imaging 2
