Place of Origin: | CN |
Brand Name: | KEYE |
Certification: | No |
Model Number: | KVIS-T-C |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free wood |
Delivery Time: | 4 to 6 weeks |
Payment Terms: | L/C, T/T |
Supply Ability: | 1 set per 4 weeks |
Name: | Bottle Inspection Machine | Feature: | Automated AI Process System |
---|---|---|---|
Power: | Electric | Voltage: | Adapt To National Standards |
Camera: | Industrail Camera | Algorithm: | Deep Learing |
Apply: | Bottles | OEM: | Yes |
Loading Port: | Shanghai | Payment: | T/T,L/C,Paypal Etc. |
High Light: | Automated AI Process Bottle Inspection Machine,Plastic Glass Bottle Inspection Machine |

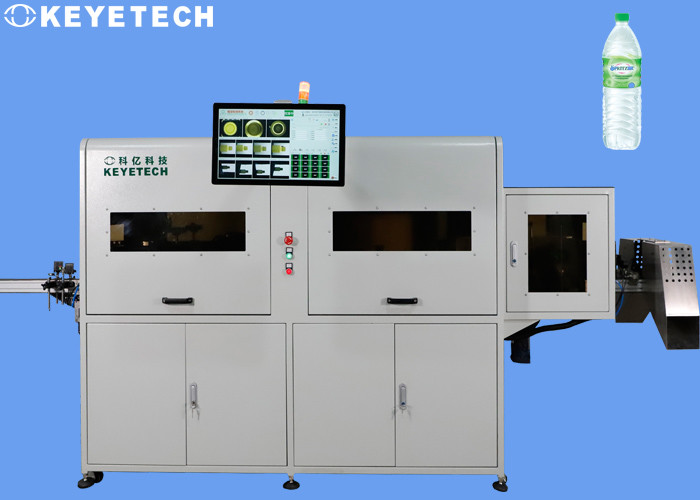

Plastic Glass Bottle Inspection Machine With Automated AI Process System
Product background
As an important supplement to daily drinking water, bottled drinking water has become a necessity of people's life. For the same product, a slight difference in the liquid level will cause a serious psychological gap to buyers. The height of the bottle cap, the crooked cap, and the poor coding will affect the brand image of mineral water and reduce consumers' desire to buy.
Mineral water bottle cap liquid level coding detection system is a set of online detection system independently developed by our company, which can be used to detect whether there are caps, high caps, skewed caps, and skewed safety caps in the production process of PET bottles; Deformation, high, missing, etc. after heat shrinking; insufficient liquid level after filling, poor coding, missing, missing spray; label sticking crookedly, missing sticking.
Inspection principle
Transfer the bottle products to a specific station in a stable and orderly manner, and then transmit the captured high-pixel sample image to the image processing software through an industrial camera. Defective products are eliminated, and qualified products are finally collected.
The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and select the most suitable accuracy standard for their own production conditions, thereby controlling the defect rate. Greatly reduce costs.

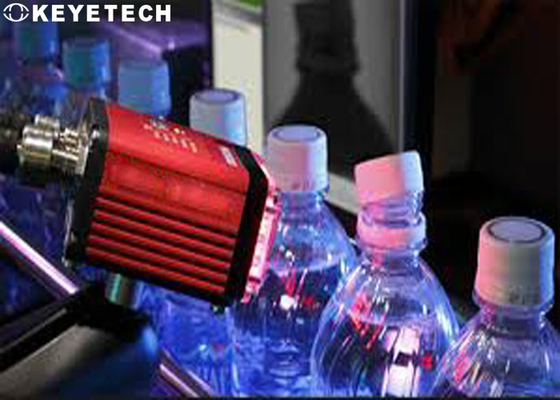

Our company's design plan adopts 11 sets of high-pixel industrial cameras and high-performance strobe light sources to comprehensively test the bottle mouth, bottle bottom and bottle body defects of bottle products. The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing systems. Software, the entrance and exit of the inspection machine can be integrated with the conveyor line, the inspection speed is 9600 pieces/hour, the equipment can be operated 7*24 hours a day, and the unqualified products can be automatically rejected.
Detection process&system details
1. Install a customized visual inspection system on the mineral water production line;
2. When the mineral water bottle flows into the visual inspection station, the product picture taken by the machine vision sensor is triggered and sent to the system. The system extracts and analyzes the taken picture and compares it with the setting to know whether the bottle cap of the mineral water bottle has a high cap or a low cap. Whether the cover, high and low liquid level, and coding are bad;
3. When it is detected that the mineral water bottle cap has a high cap or a low cap, the coding is defective or the liquid level is high or low, the system sends a signal to the rejection device to give rejection processing and alarm prompts.
Model.No | Camera | Detection range | Test content | Error | Accuracy | Speed | Remark |
KVIS-T-C-C06 | 1set | bottle shoulder |
black spot, impurity |
>=0.5mm | 99.5% | 100-120/min | All other foreign bodies are treated as black spots |
1set | bottle lip | flash | |||||
black spot, impurity |
|||||||
deformation | |||||||
4set |
side printing surface |
missing print | the font to disappear | 100% | |||
blur | >=0.5mm | 99% | |||||
black spot, impurity |
99.5% |
Special features
1. The testing equipment needs to be regularly maintained and cleaned during use (such as conveyor belt cleaning, camera cleaning, etc.), and the testing equipment itself will not produce secondary pollution sources (such as debris, fine foam, etc.) to the testing samples.
2. Detection software function: enable and disable the system detection function, detection index parameters, and precision adjustment.
3. Template sampling and storage, sample detection information storage and recall.
4. Camera screen calibration function, system real-time production information (qualified rate, total output, speed, etc.) display, historical production information browsing, export and storage functions.
5. Manage permissions according to the login account (such as general operation users disable parameter adjustment permissions).
6. Operation and adjustment of the mechanical part of the system (such as the opening of the transmission device, the control of the cylinder, the adjustment of the alarm signal)
Machining process
