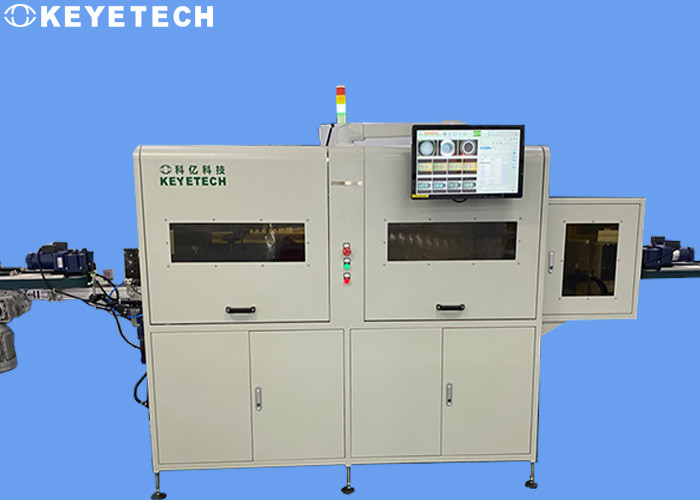

Medical Quantity Cup Appearance Defect Detecting Equipment 70 Pcs/Min

Equipment overview

-Online high speed detection, improve detection efficiency and accuracy, reduce human cost.

- High-pixel industrial camera accurate identification, the number of cameras is designed, accurate 0.1mm, speed 300 / min (can be customized according to the detection requirements).

- Compatible with multiple specifications, cost savings.

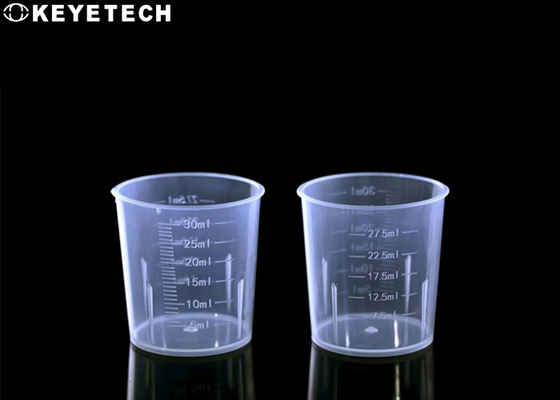

-Perform online detection and exclude for quantity cup defects:black spots, color difference, impurities, gaps, residues of material, overlaps, bubbles, air cavities, deformation, thickness, sizes, etc.

Detection Principle

Medical quantity cup appearance defect detecting equipment through the docking front automation mechanism (can directly contact the conveyor line, the waterfall cover machine, the centrifugal turntable and multiple typing mechanisms, specifically based on the production site to determine),the quantity cup are stably transmitted to a specific detection station.Then transmitted the shooting high-pixel sample image to image processing software by industrial camera, detecting and determining a good product and defective product via AI manually intelligent algorithm, and controlling the corresponding pneumatic components to remove the defective product, and finally get the qualified product. The detecting machine rear end conveying platform can interface the automated packaging mechanism.

Product configuration

●High pixel industrial camera

● High resolution industrial lens

● High brightness frequency flash source

● Artificial intelligence (AL) algorithm

● High performance GPU calculation platform

● High resolution industrial touch screen

Product Advantages

1. AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training.
2. Dataization: Independent database, save multiple samples, analyze non-good products, and retain history.
3. Multi-orientation: 360 ° in the inside and outside of the quantity cup, 360 ° in the outside without dead angle detection.
4. Visualization: Real-time display sample image, operating state, real-time statistical test results and defects classification information.
5. High precision: detection accuracy can reach 99.5%.
6. Modularization, can flexibly increase or decrease the detection function according to customer actual needs.
7. Easy to operate: It is easy to operate and easy to maintain.
8. Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment.
