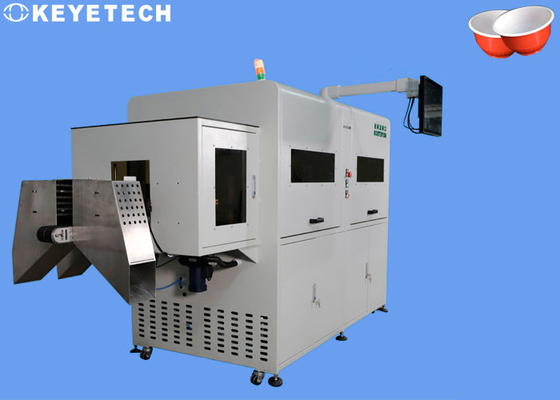

Instant Noodles Bowl Appearance Defect Detection Equipment 300pcs/Min

Instant Noodles Bowl Appearance Defect Detection Equipment 300pcs/Min

Instant Noodles Bowl Appearance Defect Detection Equipment 300pcs/Min
Instant Noodles Bowl Appearance Defect Detection Equipment 300pcs/Min
Instant Noodles Bowl Appearance Defect Detection Equipment 300pcs/Min
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Instant Noodles Bowl Appearance Defect Detection Equipment Detection Speed: 300pcs/min
Camera Number: 8 Set Colour: According To Customer's Need
After-sales Service: Video Technical Support Touch Screen: 21 Inches
Product Type: Bulk Material Syste Size: System Operating
High Light:

300pcs/min Packaging Inspection Equipment

,

300pcs/min Defect Detection Equipment

Food-Specific Paper-Plastic Bowl Appearance Defect Detection Equipment



System Operating Parameters

Syste Size

System Operating Parameters

Voltage And Current

220V 20A 50Hz

Power

5.0-6.0kw

Compressed Air

Clean And Oil-Free

Ambient Temperature

-20℃ ~ 60℃

Environment Humidity

Below 50% Relative Humidity



The Testing Standards Are As Follows:

Model

Camera

Detecton Range

Detection Content And Accuracy

Accuracy

Speed

Kvis-Sc10

1 Set

Cup Mouth Plane, Cup Inner Wall Area

Black Spots, Stains (Different Colors) ≥ 0.2mm

99%

150pcs/Min

Black Spots, Stains (Different Colors) ≥ 0.3mm

99%

Gap, Flash ≥0.5mm

99%

8 Sets

The Outer Side Area Of The Cup Body

Black Spot Stains (Different Color)≥0.2mm

(No Printed Content Area)



Black Spot Stains (Different Color)≥0.2mm

(No Printed Content Area)

99%

Label Misplacement, Stamping, Damage≥0.5mm

99%

1 Set

Outer Bottom Of Cup

Black Spots, Stains (Different Colors) ≥ 0.2mm

99%

Note:

Ø Black spots, stains, hair, impurities (different colors) will be analyzed and processed according to the black spot detection index. The contrast difference of this gray value should be greater than 40, which can be effectively detected. If the sample has transparent oil stains or light-colored black spots, and the gray value contrast difference is low (below 40), the expected detection effect cannot be achieved.

Ø Considering the complex structure of the product, in the actual detection application, there may be a very small detection blind area in the overlapping area of the structure in the plane lens imaging, and the image cannot be collected in this blind area, so it cannot be effectively detected.

Ø In the actual inspection, due to the influence of the critical fluctuation state of the data of some inspection items, there will be a certain probability of false inspection of the product, which can be adjusted through the parameter settings of the system software to achieve the actual inspection effect.



 1. Detection the product

With the improvement of people's living standards, paper-plastic bowls have become a necessity in people's daily life, and people are more and more chasing good quality of life. requirements.However, double-walled anti-scalding paper bowls, support-type anti-scalding paper bowls, and solid anti-scalding paper bowls (containers) appeared. There are also traditional plastic bowls (containers) that can prevent leakage, but they cannot be insulated, and the printing surface is simple, the printing effect is poor, and the bowls (containers) are easily squeezed when the bowls are stacked.

Instant Noodles Bowl Appearance Defect Detection Equipment 300pcs/Min 0

There are also traditional plastic bowls (containers) that can prevent leakage, but they cannot be insulated, and the printing surface is simple, the printing effect is poor, and the bowls (containers) are easily squeezed when the bowls are stacked. The paper-plastic bowl overcomes the deficiencies in the above-mentioned prior art, and provides a paper-plastic anti-scalding support and reinforced heat-insulating bowl, which achieves thermal insulation, anti-scalding, anti-leakage, anti-squeeze protection, good stiffness, material saving, etc. Purpose. The product is made of paper-plastic material, white and primary color, and is divided into a variety of specifications. Please refer to the actual sample for details.



2. Detection principle

Through the docking conveying device (the paper-plastic bowl needs to be output in a straight line with the mouth upright, and the product spacing needs to be kept above the radius of the cup mouth), the products are stably and orderly transported to a specific station, and then passed through the industrial The camera transmits the captured high-pixel image of the sample to the image processing software. After system analysis, it determines the good and bad products, and controls the corresponding pneumatic components to remove the bad products, and finally collects qualified products.





The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and select the most suitable accuracy standard for their own production conditions, thereby controlling the defect rate.



2, Camera Instructions:

In the plane of the cup mouth, install a set of industrial camera directly above the product, and use it with the visual light source to collect the plane images of the cup mouth, the inner wall of the cup, and the bottom of the cup for analysis and processing.



In the outer side area of the cup body, because the height of the cup body exceeds the width range of a single camera, it is necessary to divide the cup body into two parts: upper and lower parts. Each part adopts a ring layout of 4 sets of cameras, a total of 8 sets of cameras, which are used with the visual light source. , collect the images of the outer side of the cup body for analysis and processing.



In the outer bottom of the cup, the mouth of the cup body is suspended by the vacuum adsorption belt, and a set of industrial cameras is installed directly under the product, which is used with the visual light source to collect the images of the outer bottom of the cup for analysis and processing.





After the paper-plastic bowl is detected, the counting function can be realized. The detection equipment needs to be regularly maintained and cleaned during use (such as conveyor belt cleaning, camera cleaning, etc.).



4,Captures images



Instant Noodles Bowl Appearance Defect Detection Equipment 300pcs/Min 1
