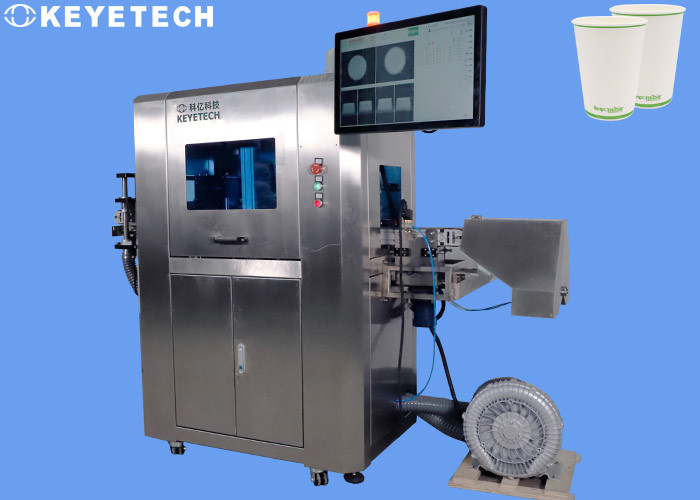

GMP Workshop AI Visual Cap Inspection System For Disposable Paper Cup

GMP Workshop AI Visual Cap Inspection System For Disposable Paper Cup

GMP Workshop AI Visual Cap Inspection System For Disposable Paper Cup
GMP Workshop AI Visual Cap Inspection System For Disposable Paper Cup
GMP Workshop AI Visual Cap Inspection System For Disposable Paper Cup
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Name: Inspection System For Disposabel Paper Cup Material: SS 304
Weight: 500 Kg Color: Grey
Light Source: LED Selling Points: AI Visual Technology
Applications: Factory Production Line Core Component: High Pixel Industrial Camera
MOQ: 1 SET Package: Wood Packing
High Light:

GMP Workshop Cap Inspection System

,

Paper Cap Inspection System

,

AI Visual Cap Inspection System

Inspection Object

With the improvement of people's living standards, paper-plastic cups and bowls have become necessities of people's daily life, and people are more and more chasing good quality of life. Requirements, paper-plastic cups are widely used in yogurt and other cup industries due to their own characteristics such as heat insulation, anti-scalding, leak-proof, anti-squeeze bowl protection, good stiffness, and material saving. , A lid is added to the cup, and the paper plastic cup lid is widely used in the cup. Cup lid products, paper plastic material, white and primary color, are divided into various specifications, see actual samples for details.



Inspection Principle

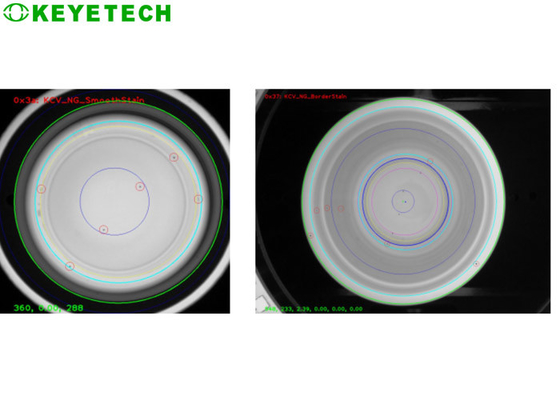

Through the docking of the front-end automation mechanism (the connection method needs to be docked in advance), the paper-plastic cup lid products are stably and orderly transferred to a specific detection station with the lid facing down, and then the captured high-pixel sample image is captured by an industrial camera. It is transmitted to the image processing software.

GMP Workshop AI Visual Cap Inspection System For Disposable Paper Cup 0

After the system analysis, it determines the good and bad products, and controls the corresponding pneumatic components to remove the bad products. Finally, the qualified products are output.The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and select the most suitable accuracy standard for their own production conditions, thereby controlling the defect rate.



Inspection Detailes

Our design plan adopts 11 sets of high-pixel industrial cameras and high-performance stroboscopic light sources, and conducts a full range of visual inspections for the appearance defects of multi-specification flat-top cover products. The inspection speed is 200 pieces/minute, and the equipment can achieve 7* It operates 24 hours a day, and the unqualified products can be automatically rejected online.



The whole set of testing equipment includes mechanical parts, visual electronic hardware and testing system software. The entrance and exit of the testing machine can be integrated with the automation mechanism (see the design drawings for the specific connection method), and can be connected with upstream and downstream production according to the specific production needs of customers on site equipment.

 System Parameters

Dimension

Reference The Drawing

Voltage

220V 20A 50Hz

Power

5.0-6.0kw

Air

Clean Air Without Oil

Temperature

-20℃ ~ 60℃

Humidity

Less Than 50%



inspection standard

Model

Number Of Camera

Inspection Scope

Inspection Content

Detection Precision

Accuracy

Detection speed
Kvis-Sc11

1 Set

Front Area

 Black Spot, Stains

≥0.5mm 99%

200pcs/Mins

Chromatic Aberration

(The Contrast Difference Of Gray Value Must Be Greater Than 40, And The Global Color Difference Cannot Be Detected))

- 99%

 Folds

- 99%
 Broken  Width≥0.5mm Length≥1.0mm 99%

4 Sets

Outside Area

 Black Spot, Stains

≥0.5mm 99%

Chromatic Aberration

(The Contrast Difference Of Gray Value Must Be Greater Than 40, And The Global Color Difference Cannot Be Detected))

- 99%

 Folds

- 99%

 Notches, Burrs



Width≥0.5mm Length≥1.0mm

Notches, Burrs

Broken  Width≥0.5mm Length≥1.0mm  Broken

1 Set

Concave Area

 Black Spot, Stains

≥0.5mm

Black Spot, Stains

Chromatic Aberration

(The Contrast Difference Of Gray Value Must Be Greater Than 40, And The Global Color Difference Cannot Be Detected))

-

Chromatic Aberration

(The Contrast Difference Of Gray Value Must Be Greater Than 40, And The Global Color Difference Cannot Be Detected))

 Folds

-

 Folds

 Deformation

-

Deformation

 Broken  Width≥0.5mm Length≥1.0mm  Broken

1 Set

Front Area

Thinning

Width≥0.5mm Length≥1.0mm

Thinning

Perforation

Width≥0.5mm Length≥1.0mm

Perforation



4 Sets

Outside Area

Thinning

Width≥0.5mm Length≥1.0mm

Thinning

Perforation

Width≥0.5mm Length≥1.0mm

Perforation

-



Machining process

GMP Workshop AI Visual Cap Inspection System For Disposable Paper Cup 1
