OEM Paper Plastic Cup Automatic Remote Visual Inspection System for Quality Control

OEM Paper Plastic Cup Automatic Remote Visual Inspection System for Quality Control

  • OEM Paper Plastic Cup Automatic Remote Visual Inspection System for Quality Control
  • OEM Paper Plastic Cup Automatic Remote Visual Inspection System for Quality Control
OEM Paper Plastic Cup Automatic Remote Visual Inspection System for Quality Control
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Applications: Qualified Product Inspection Selling Points: High-tech
Number Of Cameras: 11 Sets Of Camera Colour: According To Customer's Need
Touch Screen: Humanized HMI Working Humidity: Below 50% Relative Humidity
Total Power: 4.0~5.0 Kw Dimensions: See The Design Drawings For Details
High Light:

Plastic Cup remote visual inspection system

,

cup remote visual inspection system

,

oem machine vision system for automatic inspection

System operating parameters
Dimensions

See the design drawings

for details

Power and frequency 220V 20A 50HZ
Total power 5.0~6.0 kw Air pressure 0.5~0.8MPa Purify and oil-free
Working temperature -20℃ ~ 60℃ Working humidity Below 50% relative humidity



The detecting standards are as follows:



Model Camera Detection range Detection content and accuracy Detection precision Speed
KVIS-SC10

1 set



Cup mouth plane,Inner wall zone of cup Black spots, stains (different colors)≥0.2mm 99% 150pcs/min
Black spots, stains (different colors)≥0.3mm 99%
Notches, overlap≥0.5mm 99%
8 set Outer side of cup body

Black spots, stains (different colors)≥0.2mm

No printed content area

99%
Label misalignment, labeling, damage≥0.5mm 99%
1 set Outside bottom of the cup Black spots, stains (different colors)≥0.2mm 99%

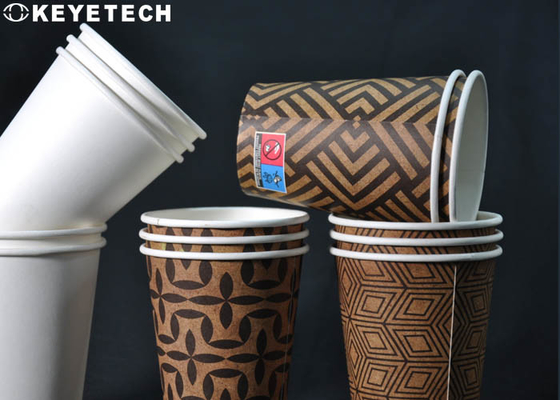

Detecting products

Drinks such as milk tea belong to mass consumer goods, there are many consumers, and milk tea is the most intense and competitive category of the brand in the competition in the chain. The appearance packaging of milk tea is often the important form of the brand in publicity and sales, so in the paper cup production of milk tea juice, the color, shape, and the logo location of the cup, etc. are all important. There will be different digital identifications at the bottom of the disposable paper cup, or it can be included in the detection category. Keye Tech has a lot of detect cases in such a drink packaging detection industry that can be compatible with a variety of paper cups.



The detection principle

Through the docking conveying device (the product needs to be output in a straight line with the mouth facing upwards, and the product spacing must be kept above the radius of the cup mouth), the products are transferred to a specific station in a stable and orderly manner,and then the high-pixel sample image taken by the industrial camera is transferred to the image processing software, and the standard sample is compared and analyzed to determine the good product and the defective product, and control the corresponding pneumatic to remove the defective products and finally collect the qualified products.

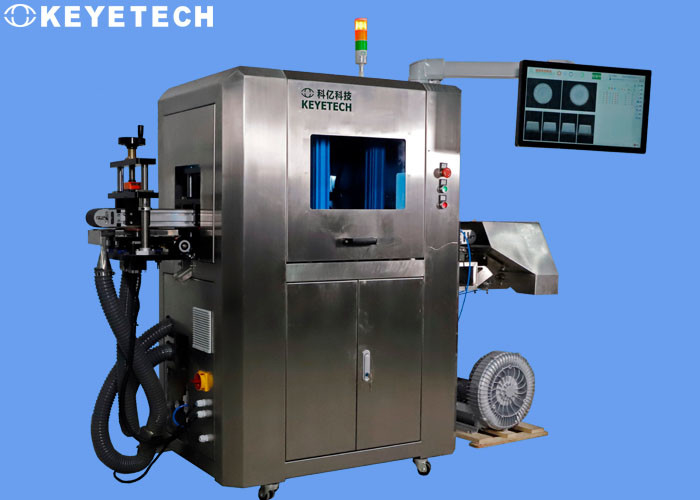

OEM Paper Plastic Cup Automatic Remote Visual Inspection System for Quality Control 0

The software will open the sample comparison standard, and the production personnel on the customer site can control the comparison accuracy and choose the accuracy standard most suitable for their own production conditions, thereby controlling the product defect rate.




- In actual detection, due to the critical fluctuation status of certain detection item data, the product error can result in a certain amount of product, and can be adjusted through the parameter setting of the system software to achieve the actual detection effect.

Note:



- Black spots, stains, hair, impurities (different color), will be analyzed according to the black point detection index, which is greater than 40, which can be effectively detected. If the sample has a transparent color oil or light-paral colored black spots, the grayscale comparison difference is low (less than 40 or less), the expected detection effect cannot be achieved.

- Taking into account the product structure characteristics, in actual detection, structural overlap regions in planar lens may have a very small range of detection blind regions, and the image acquisition is less than this blind zone, so it cannot be effectively detected.



camera application instructions:

Cup plane, add 1 set of industrial cameras directly above the product, with the use of visual light sources, collect the cup mouth, inner wall of the cup and the bottom planar images of the cup for analysis.



The outer side area of the cup body, because the height of the cup body exceeds the range of single camera, need to put the cup identity to two parts, each part uses 4 sets of camera ring layout, a total of 8 sets of cameras, with visual light source to collect the outer side image of the cup body for analysis.Put the cup identity to two parts,each part uses 4 sets of camera ring layout, a total of 8 sets of cameras, to detect the outer side area of the cup body

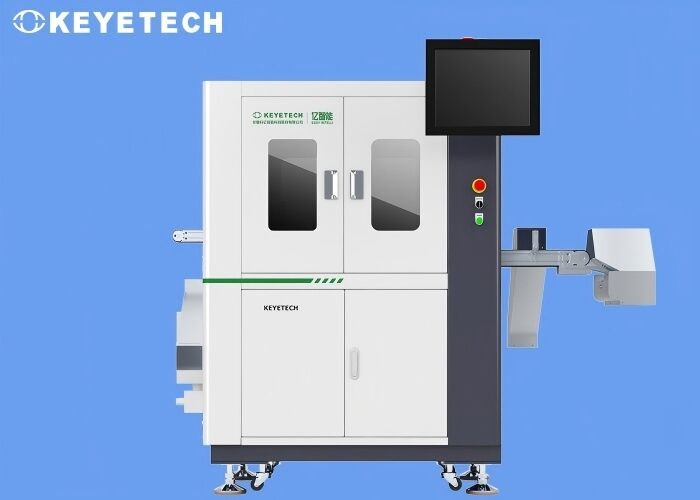

OEM Paper Plastic Cup Automatic Remote Visual Inspection System for Quality Control 1

The bottom of the cup is floating through the vacuum adsorption belt, and 1 set of industrial cameras is installed under the product. It is used in conjunction with the visual light source to capture the bottom image of the cup for analysis.



The count function can be realized after the finished product is detected, and the detecting device needs to be regularly maintained during use (such as the conveyor tape cleaning, camera cleaning, etc.).



Images collected by real machine

Cup inner wall, cup bottom example images

Cup bottom example image

Outer side of the cup example image

OEM Paper Plastic Cup Automatic Remote Visual Inspection System for Quality Control 2
