Pulp Molding Paper Lids Vision Inspection Machine with AI Deep Learning Algorithm

Product Details:

Place of Origin:	China
Brand Name:	KEYE
Certification:	NO
Model Number:	PY-PL

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Fumigation-free wood
Delivery Time:	4 to 6 weeks
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Light Source:	LED	Number Of Cameras:	3 Sets
Key Technology:	AI Inspection	Operating Environment:	GMP Workshop
Industrial Applications:	Quality Inspection	Power:	400W
Air Pressure:	2-3Kgf/cm2	Weight:	200kg
Highlight:	AI Vision surface inspection equipment , ODM surface inspection equipment , AI stencil inspection machine

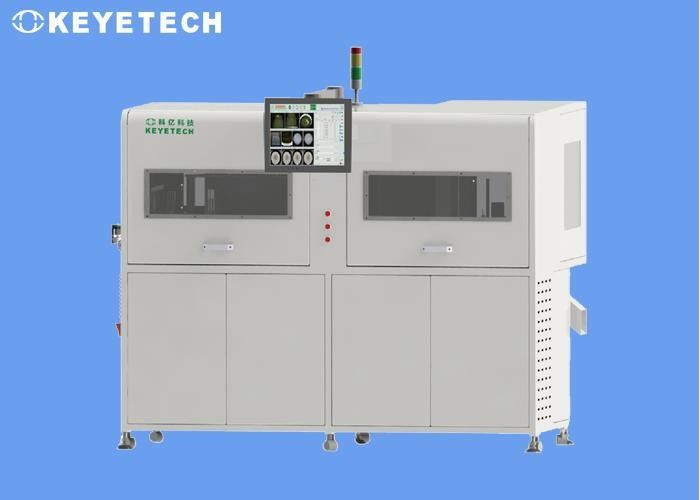

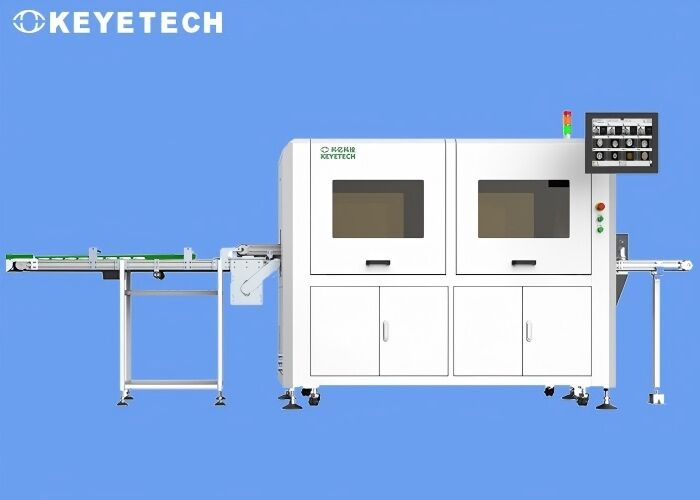

Pulp Molding Paper Lids Vision Inspection Machine with AI Deep Learning Algorithm

Equipment Overvie

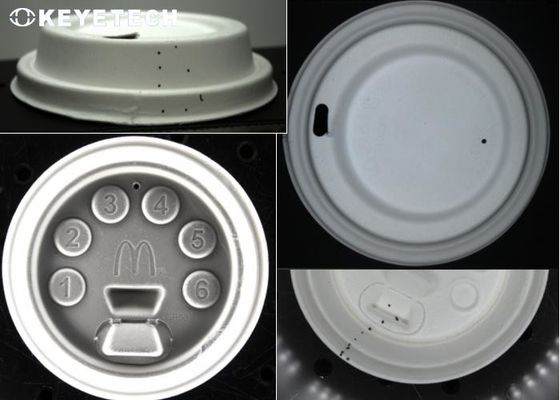

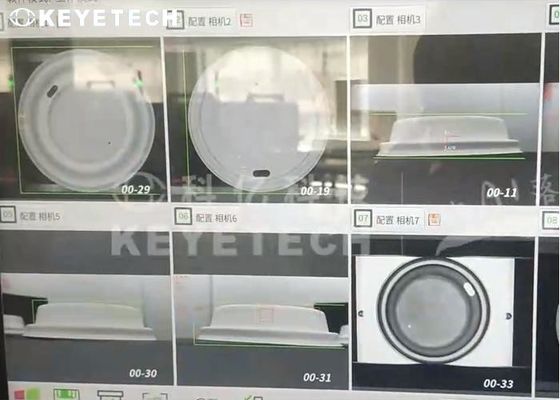

The overall inspection equipment is equipped with 7 sets of high pixel industrial cameras to comprehensively detect the appearance defects of the product. After collecting sample images, the system compares and analyzes them with standardized templates through image processing software to determine whether they are good or bad.

Pulp Molding Paper Lids Vision Inspection Machine with AI Deep Learning Algorithm 0

Defective products are automatically removed online, and counting function can be achieved after finished product inspection. The software will open up sample comparison standards, and production personnel at the customer's site can control the comparison accuracy, select the most suitable accuracy standard for their own production situation, and thus control the defect rate.

Operation Parameters

Power	5-7Kw	Voltage/Current	380 V 50 HZ
Noise	<70dB	Compressed air	0.5~0.8MPa
Ambient Temperature	-20℃ ~ 60℃	Ambient Humidity	Less than 50%
System Language	English/Russian/Ukrainian	Mechanical Structure	Carbon Steel
Weight	About 500kg	Dimension	Reference drawings

Main Configurations

Description	Model	Unit	Qty	Remark
Hardware
Industrial Cameras	KeyeTech	Set	7	China
Plane Lenses	KeyeTech	Set	7	China
LED Strobe Light Source	KeyeTech	Set	3	China
Photoelectric Sensor	SICK	PC	2	Germany
Electromagnetic Valve	SMC	PC	1	Japan
Industry Power	Mean Well	Set	3	Taiwan, China
Main Control Board	KEY-PC-2.1	PC	1	China
Embedding Computing Unit	KeyeTech EBS-1684X	Set	1	China
HID Touch Screen	AOC 21.5”	Set	1	China
Software
AI Algorithm System	KeyeTech KVIS-V16.0	Set	1	China
AI Cloud Platform	KeyeTech	Set	1	China
Big Data Server	KeyeTech	Set	1	China
Operation System	Linux	Set	1	China

**Please note: The above list is a standard equipment configuration list. If there are any parameter changes, no further notice will be given.

Software Function

Enabling and disabling the system detection function
Detection index parameters and accuracy adjustment
Template sampling and saving, storage and retrieval of sample information
Camera screen calibration function
Real time production information display of the system (qualification rate, total output, speed, etc.), browsing of historical production information, export and storage functions
Manage permissions based on login account
(example, disabling parameter adjustment for general operation users)
Operation and adjustment of the mechanical part of the system (If the transmission device is turned on, adjust the alarm signal

After-sale Service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

Pulp Molding Paper Lids Vision Inspection Machine with AI Deep Learning Algorithm 1
