GMP Workshop Ai Optical Cap Inspection System machine for Milk Powder Can

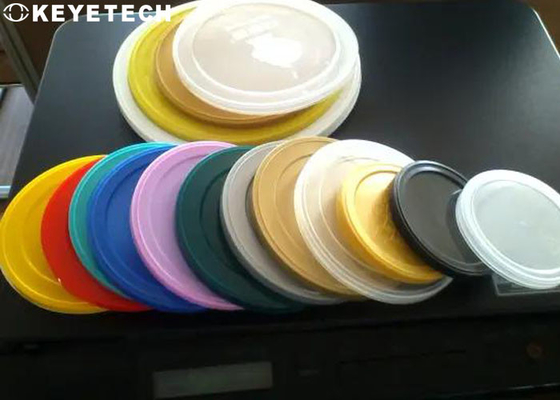

Inspection Object

This program is mainly aimed at various types of milk powder caps in and meets the following testing requirements according to on-site communication needs:

label:

1.Whether there is a label, if there is no label or the label is incomplete, it is a non-conforming product;

2.The label is skewed, and the skew is required to be greater than 0.5mm as a non-conforming product;

3.For label reprints, two or more sheets are required to be non-conforming products. If two or more sheets are completely overlapped and have obvious characteristics, they will be detected as non-conforming products.

Injection incomplete, burrs , flash:

1.Injection incomplete in the visible range behind the box cover, and the lack of material is required to be greater than 0.5mm as a non-conforming product;

2.Burrs and flash of the rear cover of the box cover, which require burrs and flash than 0.5mm to be unqualified products.

Opening ring incomplete , broken , missing

1.Opening ring incomplete : Lack of material greater than 0.5mm is unqualified

2.Opening ring Broken: cracking greater than 1mm is unqualified

3.Opening missing : missing ring is unqualified

 Milk powder spoon handle , frame ,missing

1.Missing the handle or handle broken is unqualified

2.Missing the frame or frame broken is unqualified

 About the system

• The equipment can realize centralized control and provide real-time production status;
• If there are five or more unqualified products rejected in a row, the testing equipment will send a shutdown signal to the host, and an alarm will notify the mechanics to confirm whether there are problems with the host components, and reset and start after the problems are eliminated;

Summary

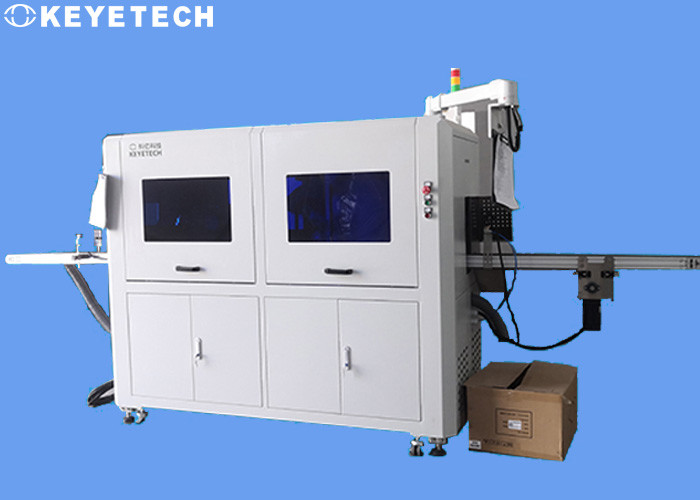

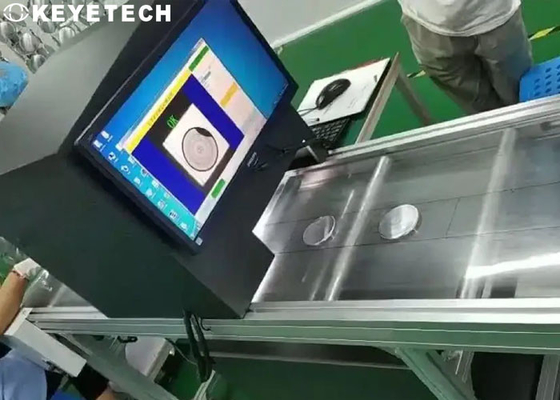

The whole system integrates mechanical mechanisms, visual optical hardware and inspection system software, defective product rejection and counting devices. The inspection speed of the equipment is fully matched to the on-site production speed, and there is a large speed surplus for later expansion. The entrance of the inspection machine and The exit can be integrated with the customer's on-site conveyor line, and the equipment can be operated 7*24 hours a day, which greatly improves production efficiency.

Milk powder lid inspection equipment, with high-pixel industrial camera processing industrial lens, comprehensive detection of defects in the milk powder cap label, easy-to-tear mouth, milk powder spoon, change mouth, etc. After the system collects the sample image, it is compared with the standardized model through the image processing software After the analysis, the good and bad products are judged, and the defective products are automatically eliminated online. After the finished product is detected, the counting function can be realized, and the counting is accurate. The software will open the sample comparison standard, and the production personnel on the customer site can control the comparison accuracy and choose the accuracy standard most suitable for their own production conditions, thereby controlling the defect rate.

Inspection Details

1,The whole system includes mechanical parts, visual electronic hardware and inspection system software. Both parties need to predetermine the height of the conveyor line to facilitate the on-site equipment docking.

2,According to the needs of the end customer, the number of cameras used and the corresponding inspection content are determined according to the requirements of this inspection. The following table is the accuracy of the inspection content.

• Place the product on the front-stage material handing and conveying mechanism by the self-grip, and merge the two products into one row through the pusher cylinder 1/2 and enter the inspection station;
• Ø The first inspection station: install a set of cameras and optical system to detect the label defects on the top of the cover, and lift the product through the vacuum conveyor 2, install the inspection camera and light source on the bottom to realize the inspection work;
• Ø The second inspection station: install a set of cameras and optical systems. After the product passes through the vacuum conveyor 2, it enters the conveyor 3, that is, enters the second inspection station. The inspection camera and light source are installed on the upper part to detect defects in the lid. Detection
• Ø The third inspection station: Install eight sets of cameras and a set of optical systems. This inspection station realizes the detection of defects in the range of the spoon, bracket, easy-to-tear mouth, and the periphery of the lid.

The testing equipment needs to be regularly maintained and cleaned during use (such as conveyor belt cleaning, camera cleaning, etc.). The testing equipment itself will not cause secondary pollution sources (such as debris, fine foam, etc.) to the tested samples.
