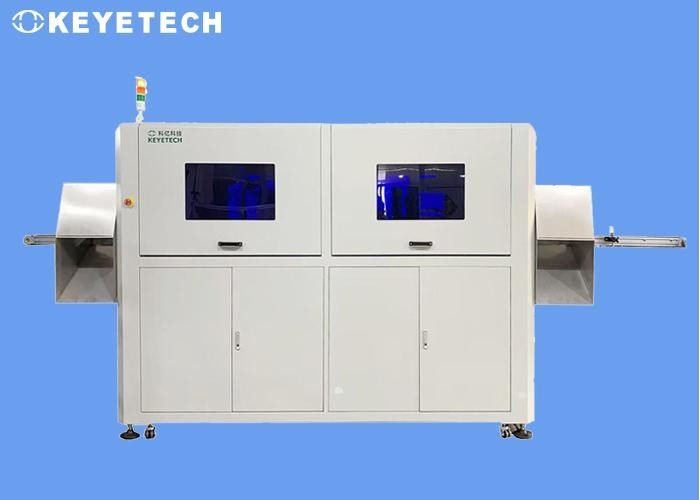

Leakage & Surface Detection System AOI Machine For 2L Empty Bottle

Product Details:

Place of Origin:	China
Brand Name:	KEYE
Certification:	NO
Model Number:	KVIS-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Fumigation-free wood
Delivery Time:	4 to 6 weeks
Payment Terms:	L/C, T/T
Supply Ability:	1 set per 4 weeks

Contact Now

Detailed Product Description

Model.No:	KVIS-B	Weight:	400kg
Color:	Grey	Apply:	Surface Defect Detection System
Test Report:	No	Working Temperature:	-20℃~60℃
OEM:	Yes	Loading Port:	Shanghai
Highlight:	2L empty bottle inspector , 1.5L empty bottle inspector , 2L all surface empty bottle inspector

Market background

In many fields of industry and commerce, liquid level detection is a necessary inspection step. For example, for medical treatment, liquid level detection is often used in infusion, test tubes, etc. For such scenarios, the accuracy of liquid level detection is often required to be higher. At the same time, only non-contact detection methods are often used, and the detection equipment is required to have the characteristics of high throughput. For the mining industry, liquid level detection is often used for underground water seepage problems.

In the existing research, the automatic detection methods of liquid level mainly include acoustic wave method, photoelectric sensor method, capacitive sensor method and detection based on machine vision. The detection based on machine vision has received extensive attention due to its non-contact and non-destructive properties.

Inspection principle

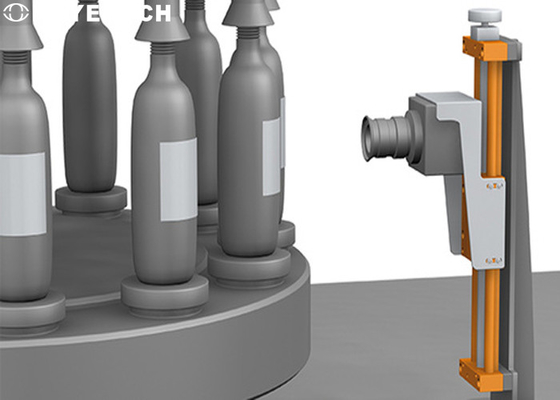

The bottle vision inspection machine is a machine vision-based bottle appearance defect inspection equipment. Compared with the traditional manual light inspection method, this equipment greatly improves the accuracy, reduces the inspection time and reduces the production cost. At the same time, it can also collect and feed back the work quality of each process and the types of defects in the production process for analysis and management by process control personnel to improve product quality.

Leakage & Surface Detection System AOI Machine For 2L Empty Bottle 0
According to the actual needs of users, we can be equipped with multiple cameras to meet the needs of inspection speed and inspection surface. In addition, the bottle inspection machine can be directly connected to the bottle blowing machine, used with the preformer, and can also add a side leakage machine at the back end of the test. , packing machine, packing machine and other back-end auxiliary equipment, so as to realize the complete industrial process from feeding, sorting, testing, screening and rejecting to packing.

Detection parameters

Model	Camera number	Detection range	Detection content and accuracy	Detection precision	Speed
KVIS- SC14	1set	Cup mouth area	Black spots, stains (different colors)≧0.2mm	99.8%	3600pcs /h
	1set	Cup mouth area	lack of material on cup mouth,overlap≧1.0mm	99.8%
	1set	Outside bottom of the bottle	Black spots, stains (different colors)≧0.2mm	99.8%
	1set	Outside bottom of the bottle	Hole (no adhesion in the hole)≧1.0mm	99.8%
	6set	Upper area of bottle(cannot be detected the inside the handle)	Black spots, stains (different colors)≧0.2mm	99.8%
	6set	Lower area of bottle	Black spots, stains (different colors)≧0.2mm	99.8%

Our advantages

Leakage & Surface Detection System AOI Machine For 2L Empty Bottle 1

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training

2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history

3.Multi-orientation: 360 ° comprehensive inside and outside the samples

4.High precision: detection accuracy can be high

5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs

6.Easy to operate: It is easy to operate and easy to maintain

7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment
